Installation Procedure

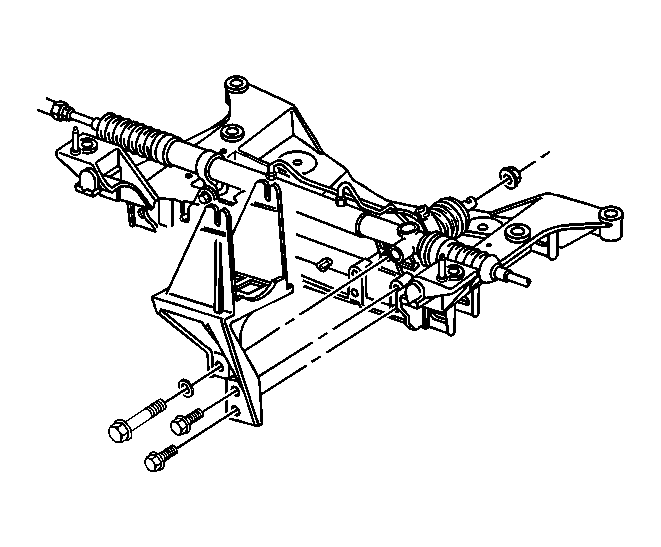

    Fig 1: Steering Gear Nut & BPMV Bracket
    GM692288Courtesy of GENERAL MOTORS CORP.
  1. Install the EBCM/BPMV bracket to the crossmember.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bracket bolts to the EBCM/BPMV bracket.

    Tighten:  Tighten the bolts to 27 N.m (20 lb ft).

  3. Install the steering gear bolt and nut.

    Tighten:  Tighten the nut to 100 N.m (74 lb ft).

  4. Install the EBCM/BPMV assembly into the bracket.
