Refrigerant Pressure Sensor / Switch: Locations

Front of Vehicle/Engine Compartment Component Views

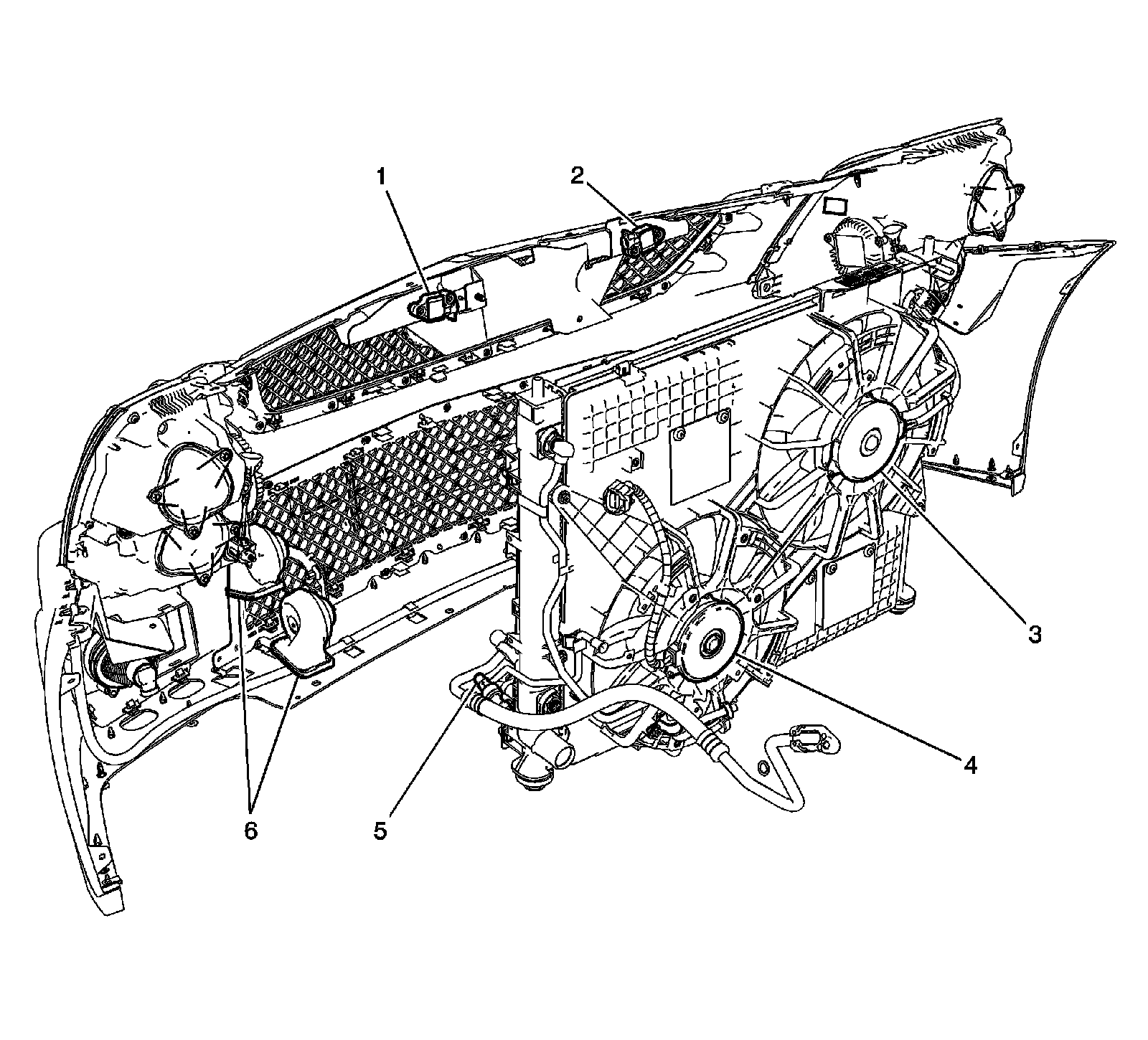

Front of Engine Compartment Components




1 - Inflatable Restraint Front End Sensor - Left
2 - Inflatable Restraint Front End Sensor - Right
3 - Cooling Fan - Right
4 - Cooling Fan - Left
5 - A/C Refrigerant Pressure Sensor
6 - Horn Assembly

Engine Compartment-Left Side (V-Series)




1 - Windshield Wiper Motor
2 - Brake Fluid Level Switch
3 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
4 - A/C Refrigerant Pressure Sensor
