Headlamp Control Module: Locations

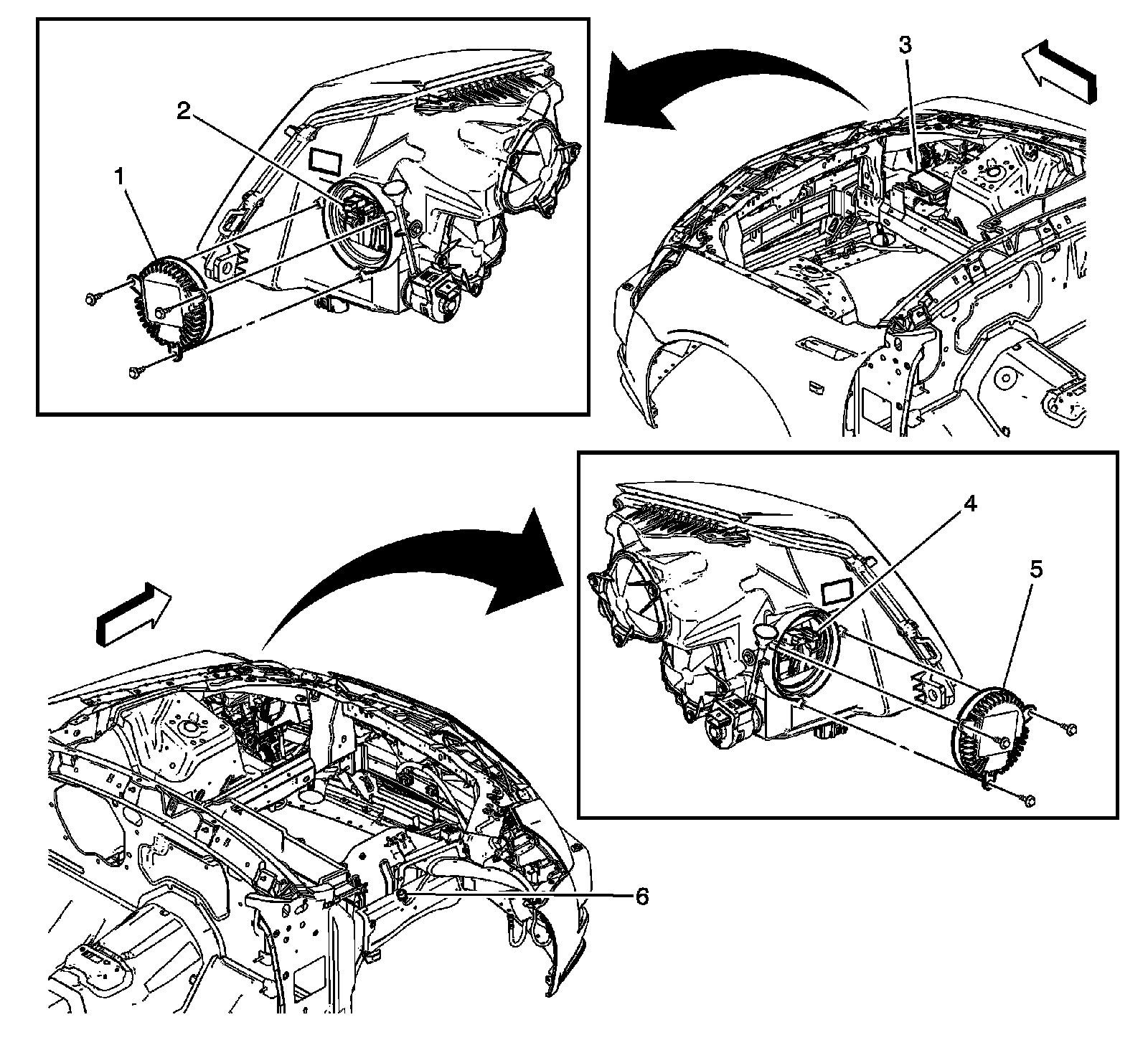

Front of Vehicle/Engine Compartment Component Views

Headlamps - Uplevel




1 - Headlamp Ballast - Right (TT6/TT7/TT8)
2 - Headlamp Motor - Right (TR7+TT6/TT7/TT8)
3 - Headlamp Control Module (TT6/TT7/TT8)
4 - Headlamp Motor - Left (TR7+TT6/TT7/TT8)
5 - Headlamp Ballast - Left (TT6/TT7/TT8)
6 - Headlamp Leveling Sensor - Front (TR7)
