Air Bag Control Module: Locations

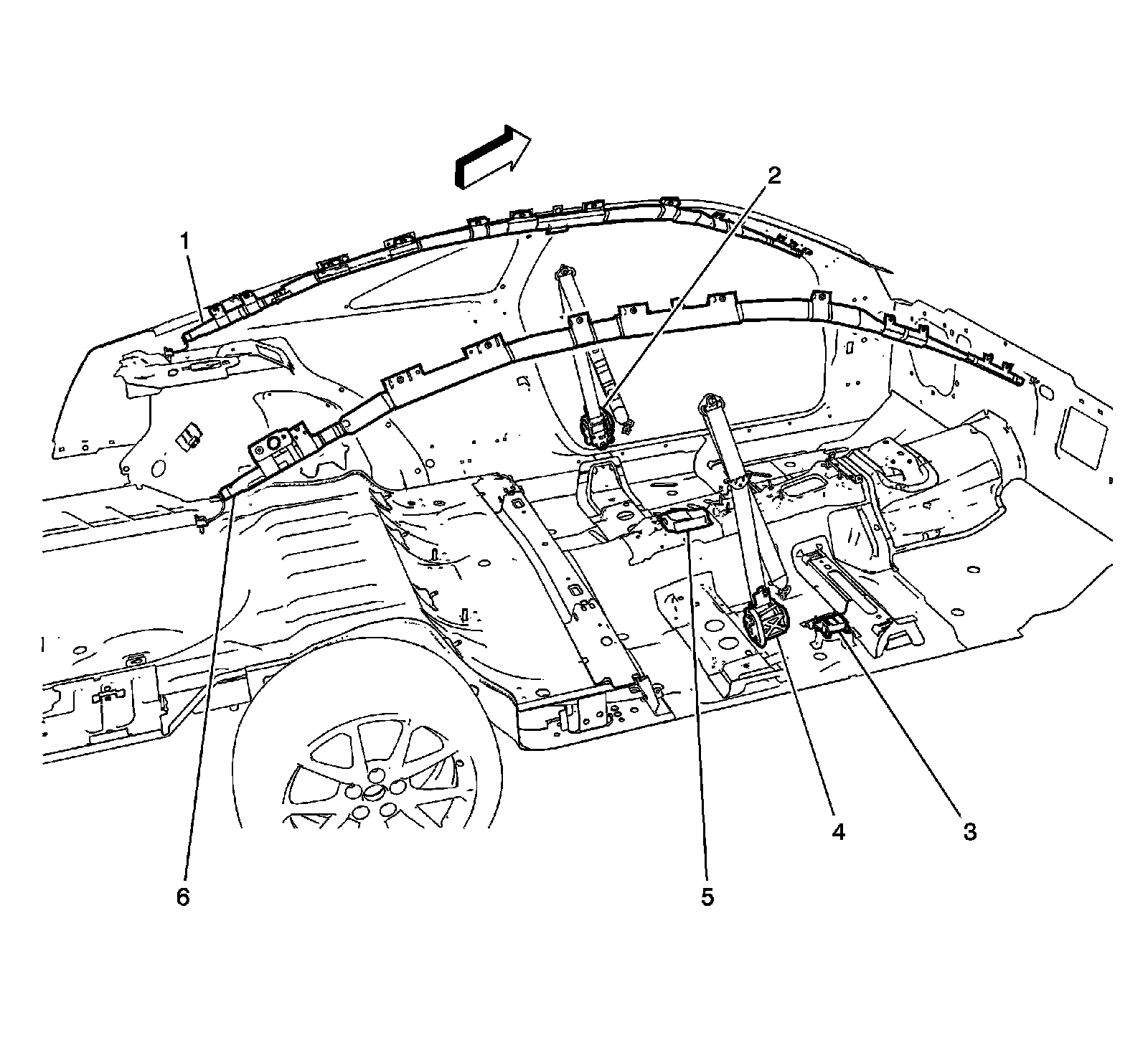

Passenger Compartment/Roof Component Views

Passenger Compartment




1 - Inflatable Restraint Roof Rail Module - Driver
2 - Seat Belt Pretensioner - Driver
3 - Yaw Rate and Lateral Acceleration Sensor
4 - Seat Belt Pretensioner - Passenger
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Inflatable Restraint Roof Rail Module - Passenger
