Data Communication Schematics

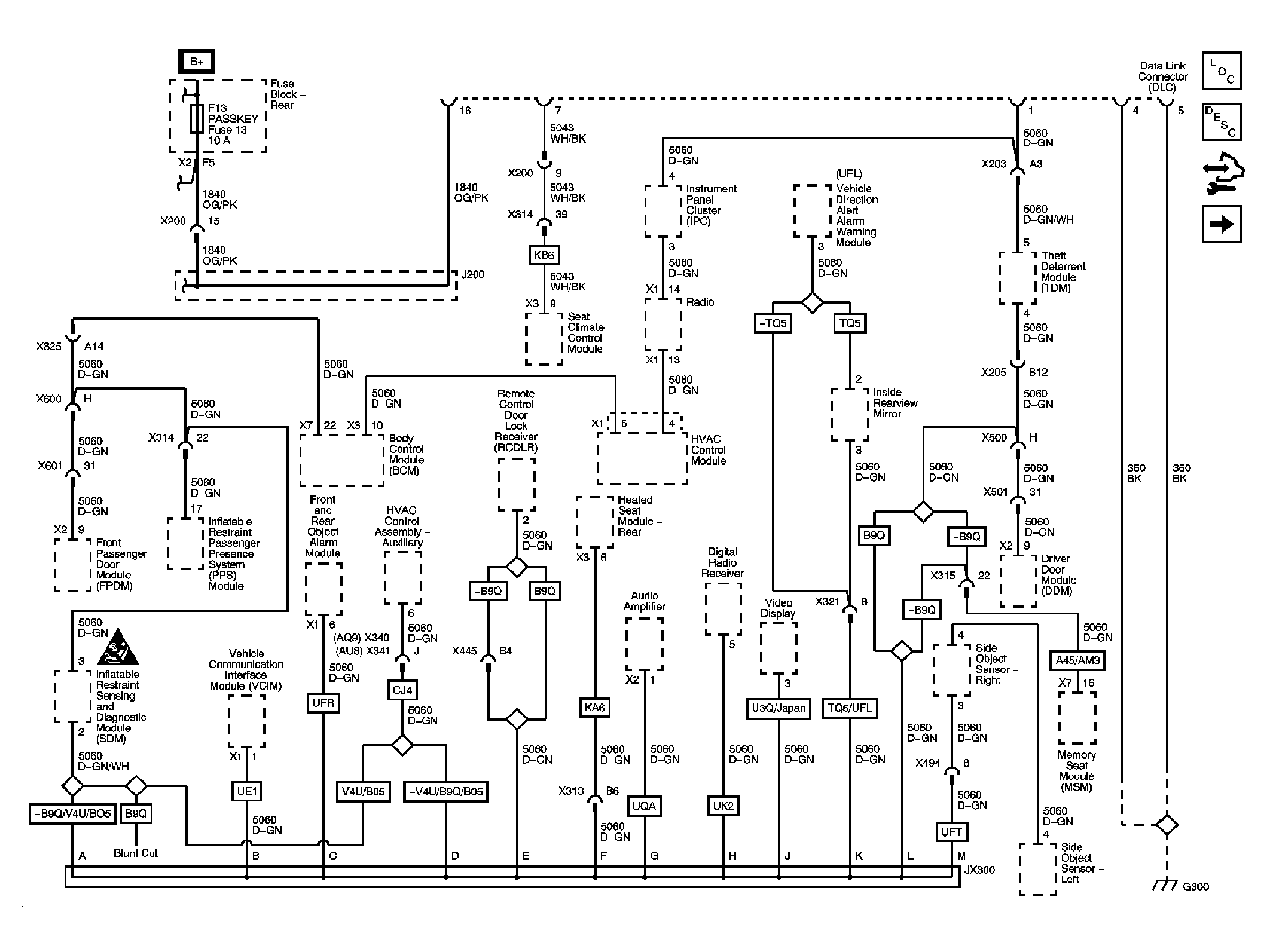

Fig 1: Power, Ground and Low Speed GMLAN

Courtesy of GENERAL MOTORS CORP.

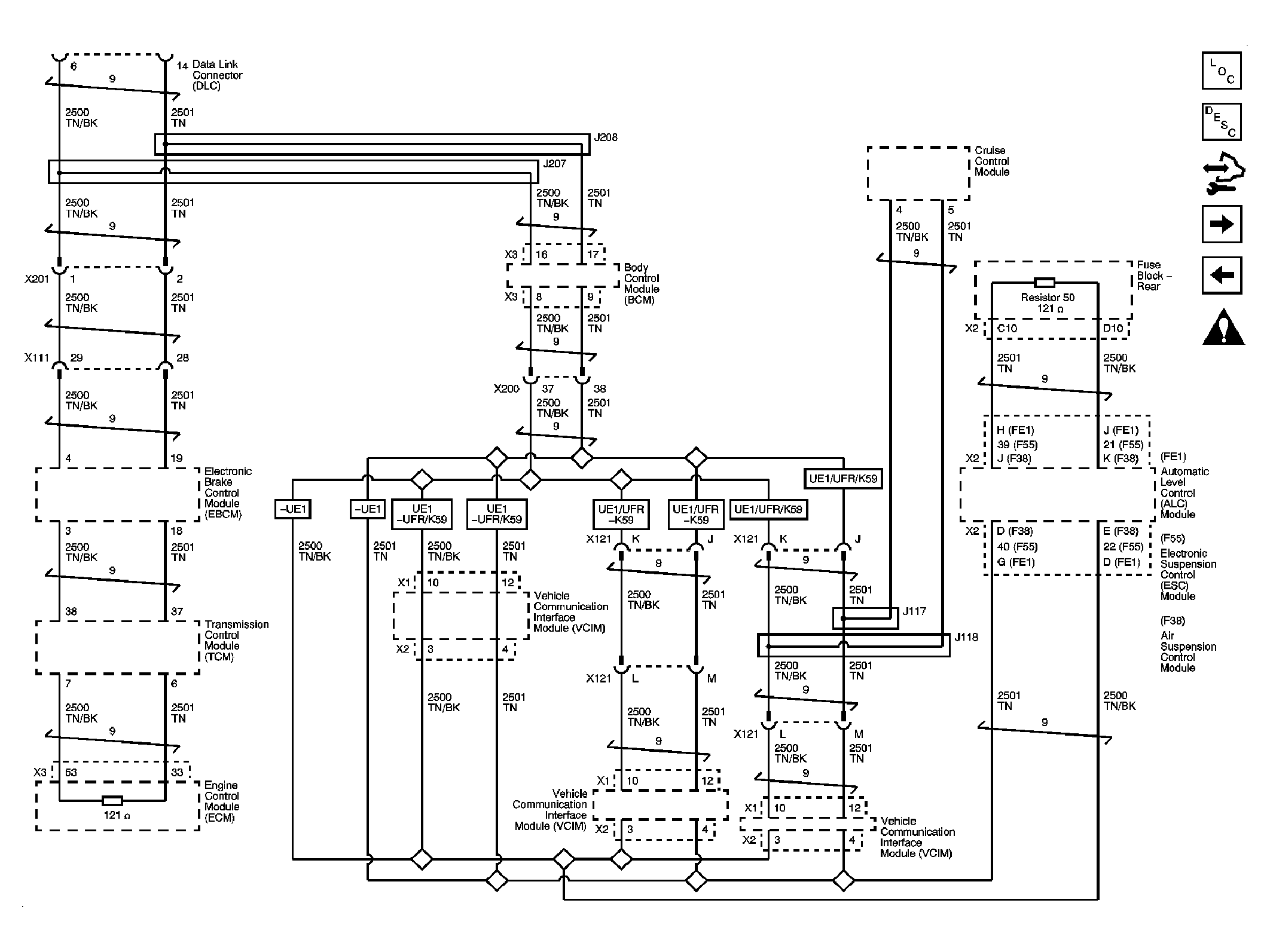

Fig 2: High Speed Serial Data

Courtesy of GENERAL MOTORS CORP.

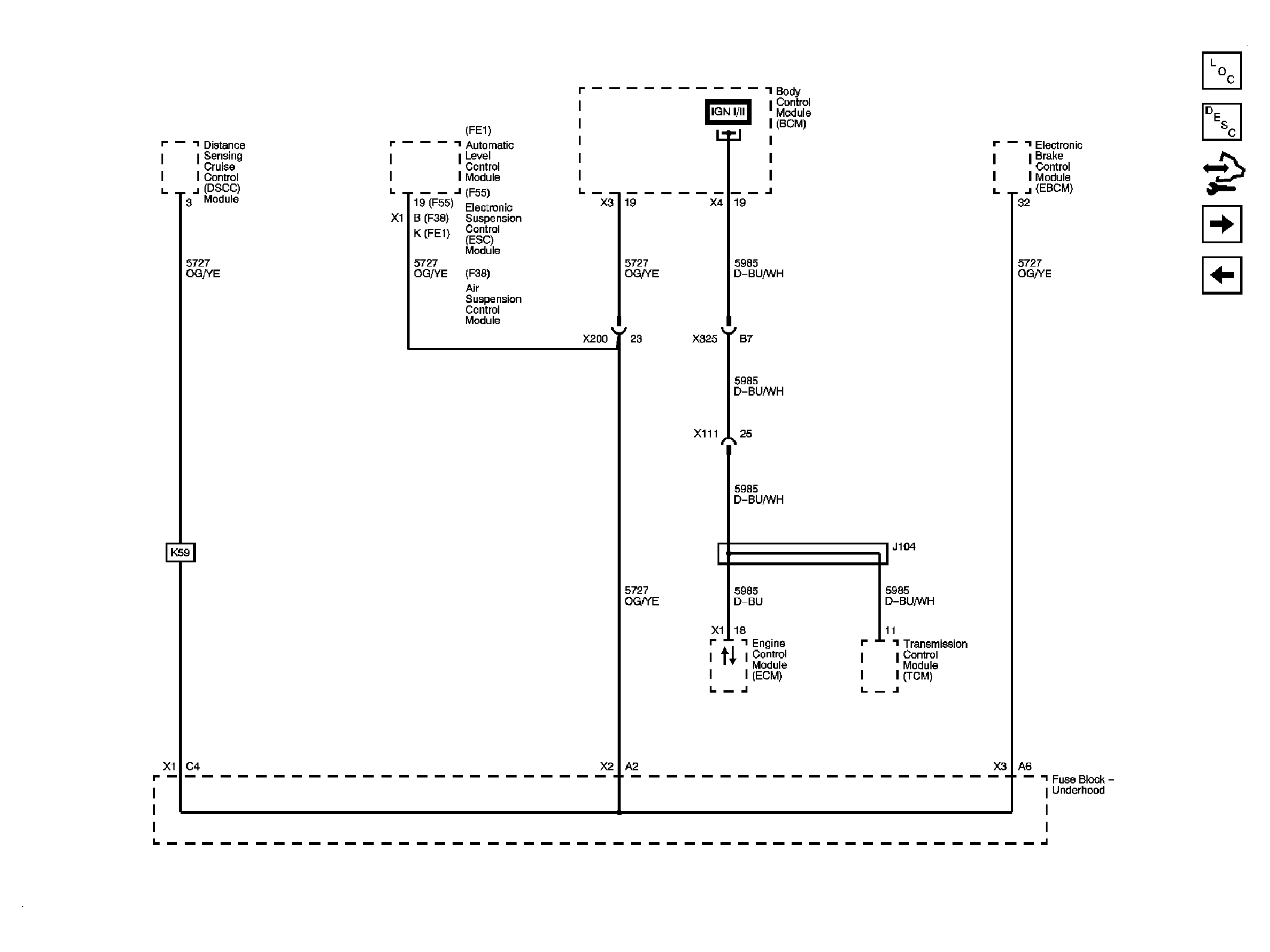

Fig 3: High Speed Serial Data, Wake Up

Courtesy of GENERAL MOTORS CORP.

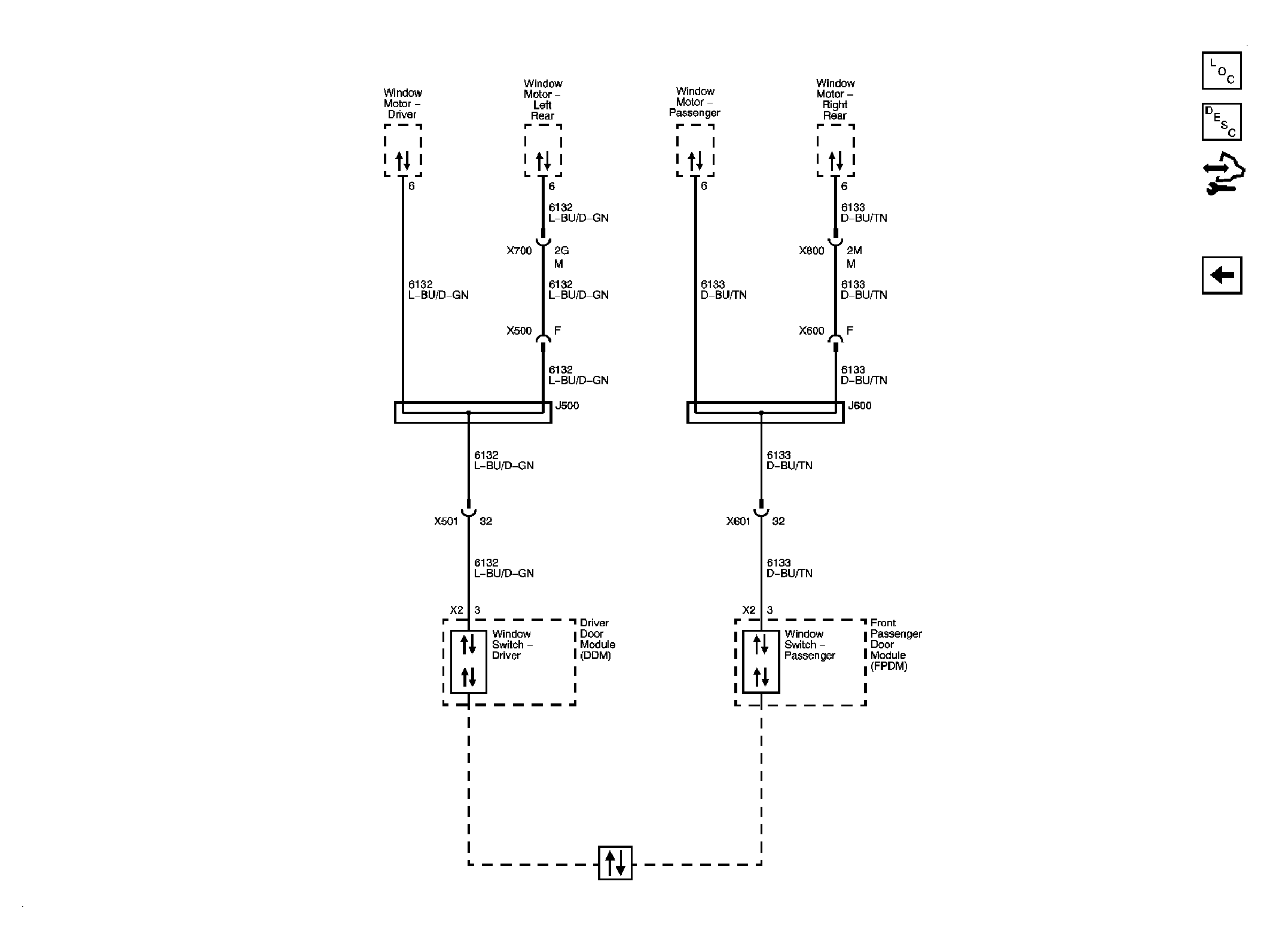

Fig 4: Local Interconnect Network (LIN)

Courtesy of GENERAL MOTORS CORP.
