Memory Positioning Switch: Locations

Door Component Views

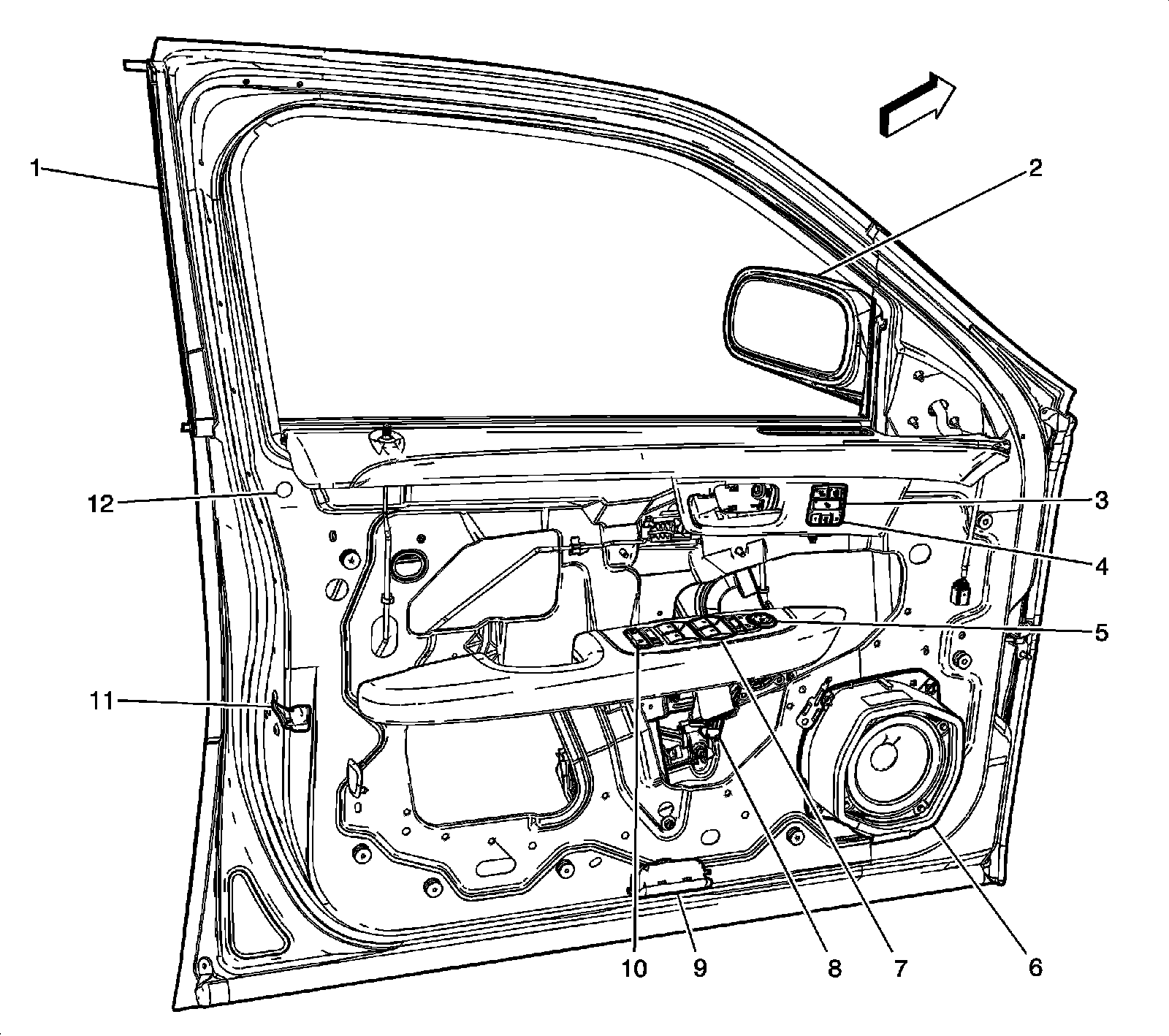

Driver Door Components




1 - Door Frame
2 - Outside Rearview Mirror - Driver
3 - Heated and Cooled Seat Switch - Driver (KB6)
4 - Memory/Personalization Function Switch (A45)
5 - Mirror Switch
6 - Speaker - Left Front Door
7 - Window Switch - Driver Door
8 - Window Motor - Driver
9 - Courtesy Lamp - Left Front Door
10 - Door Lock Switch Assembly
11 - Door Latch Assembly - Driver
12 - Door Lock Key Cylinder Switch - Driver

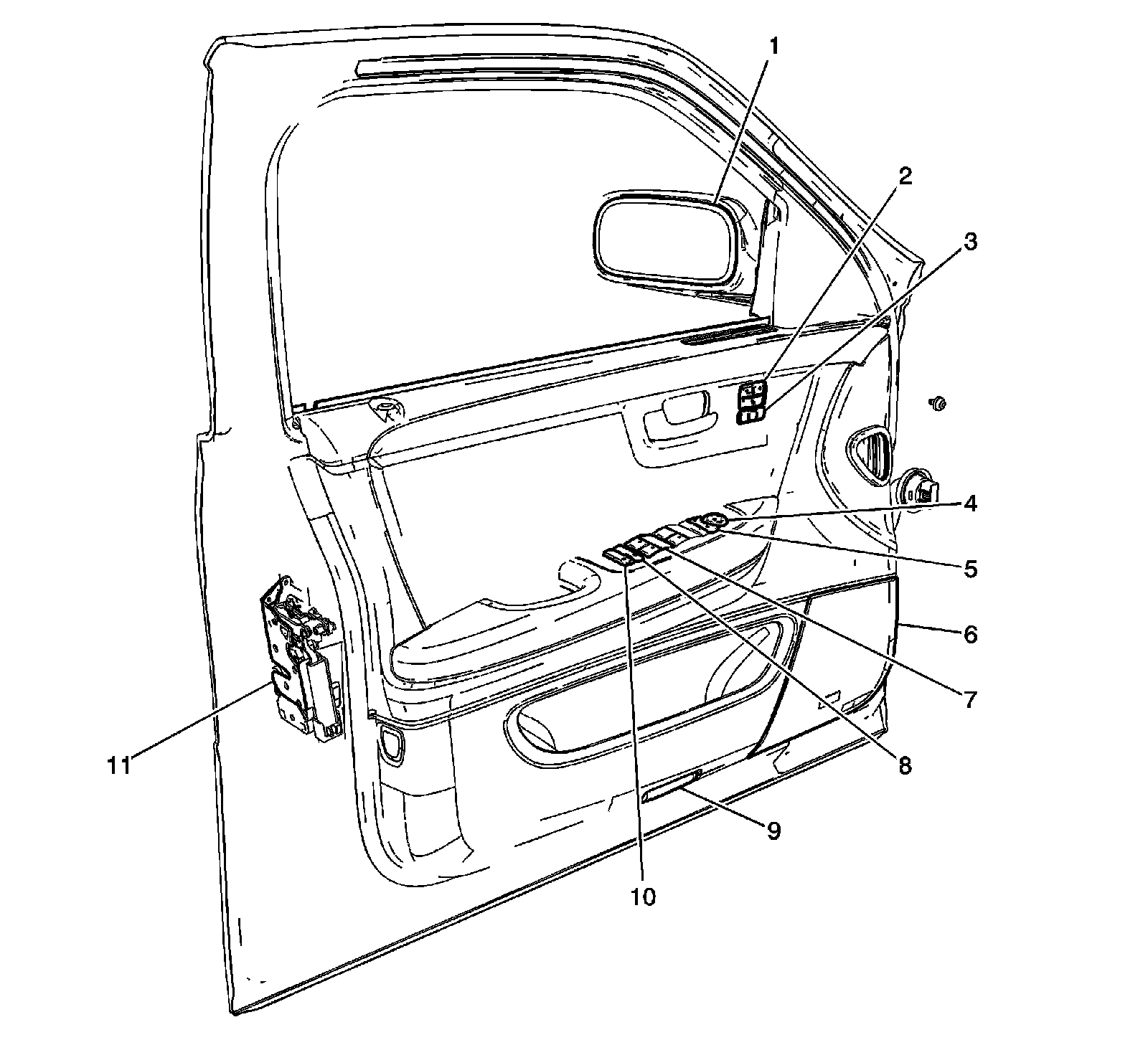

Driver Door




1 - Outside Rearview Mirror - Driver
2 - Heated and Cooled Seat Switch - Driver (KB6)
3 - Memory/Personalization Switch (A45)
4 - Outside Rearview Mirror Switch
5 - Outside Power Folding Mirror Switch (DL3)
6 - Speaker - Left Front Door
7 - Power Window Switches
8 - Window Lock-Out Switch
9 - Courtesy Lamp - Left Front Door
10 - Door Lock-Out Switch
11 - Door Latch Assembly
