Antenna Control Module
Component Connector End Views

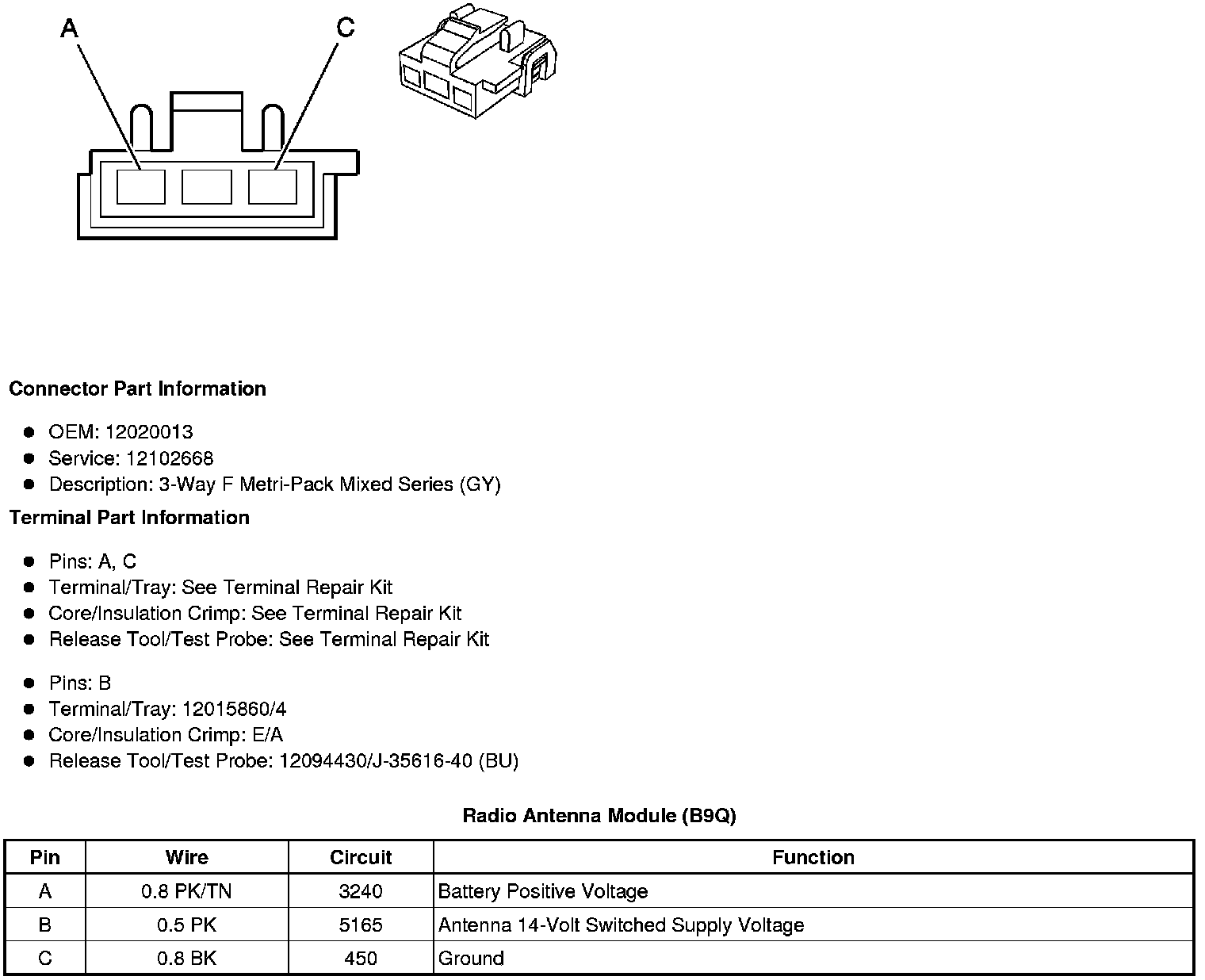

Radio Antenna Module (B9Q)

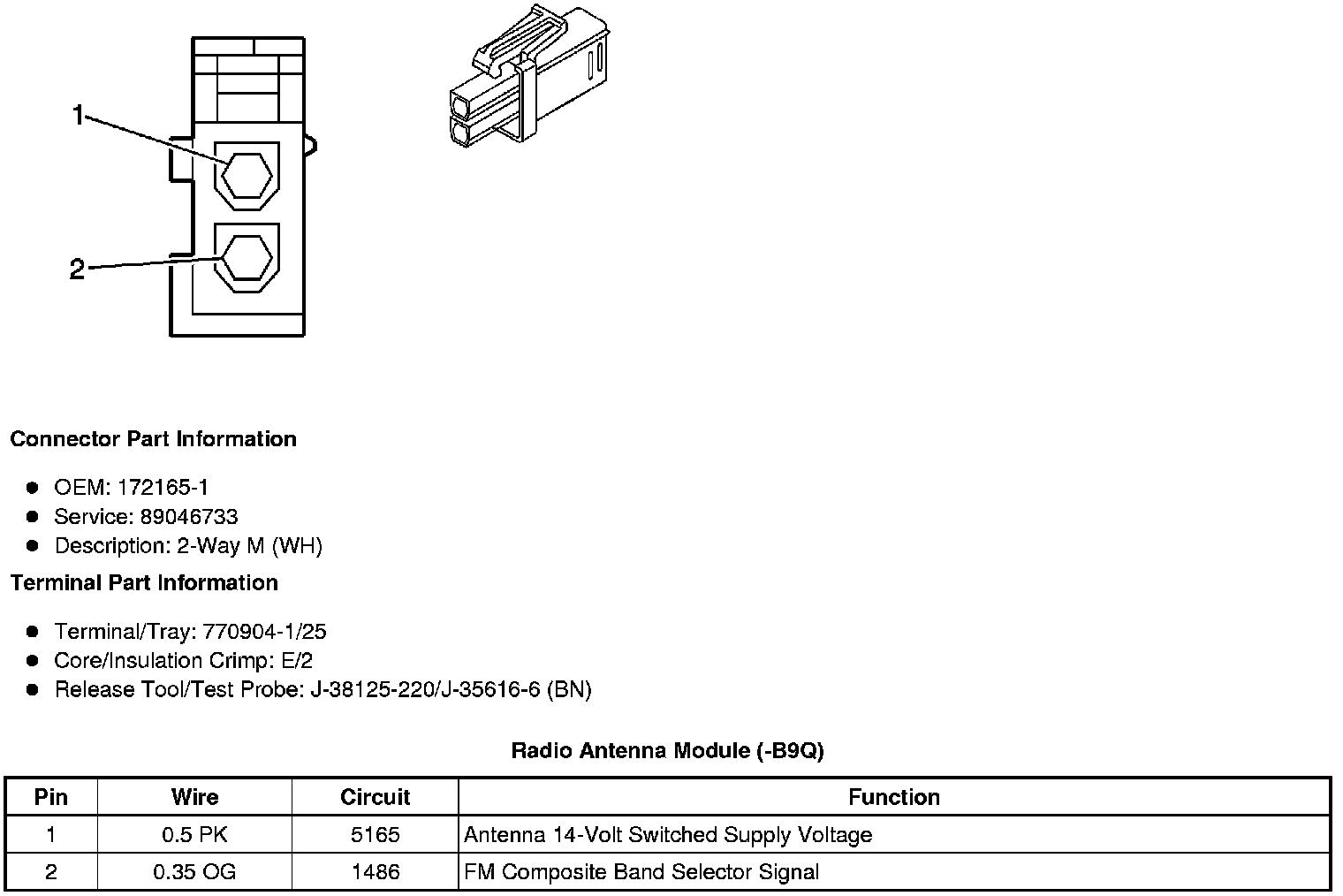

Radio Antenna Module (-B9Q)
