Seat Position Sensor




Component Connector End Views

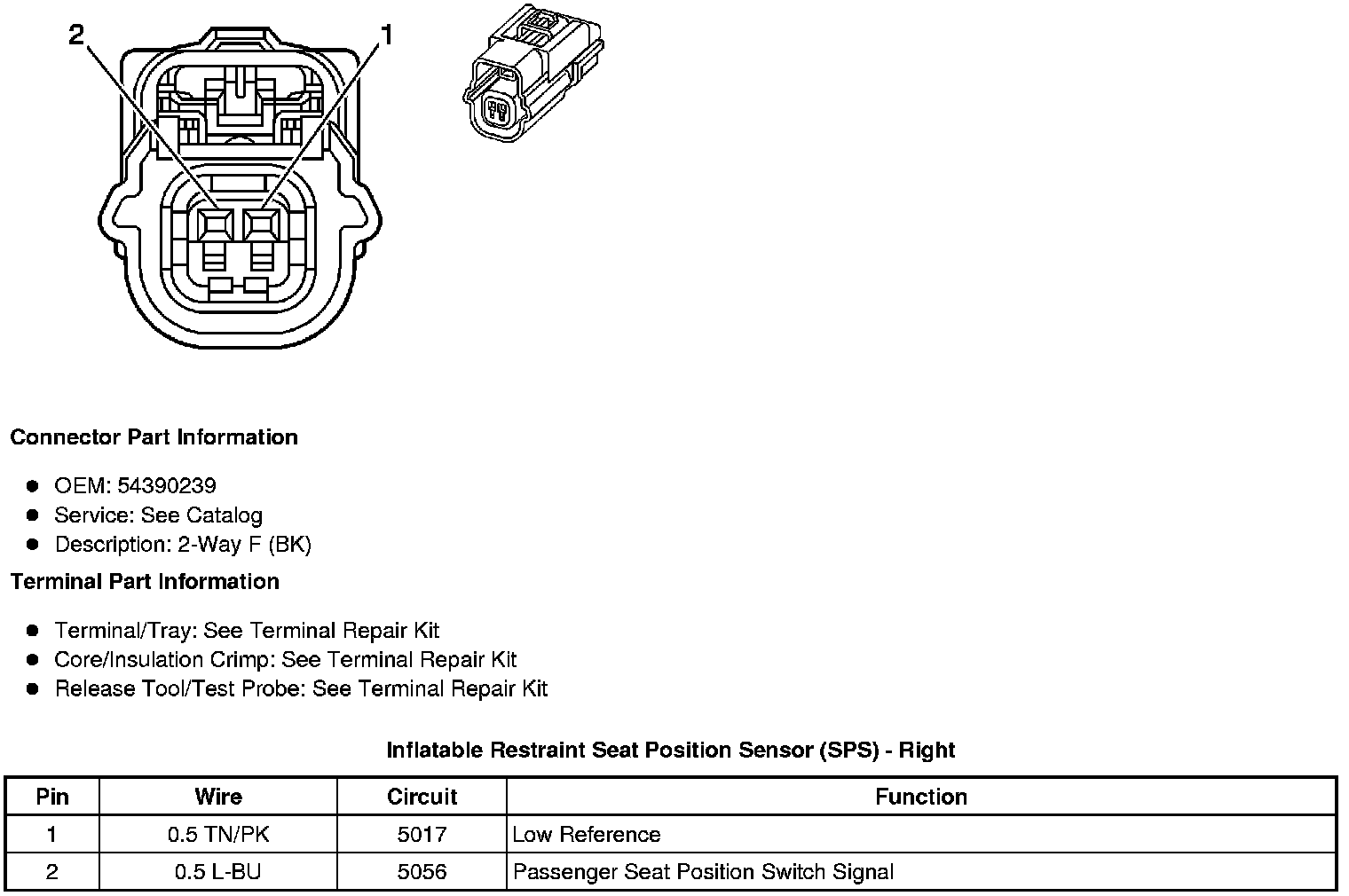

Inflatable Restraint Seat Position Sensor (SPS) - Right





Seat Front Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)
