System Specifications

Primary Camshaft Drive Chain
Tensioner Bolt 25 Nm (18 lb ft)

Secondary Camshaft Drive Chain
Tensioner Bolt 25 Nm (18 lb ft)

Drive Belt
Tensioner Bolt 10 Nm (89 lb in)

Crankshaft Balancer Bolt

First Pass 50 Nm (37 lb ft)
Final Pass +150 degrees

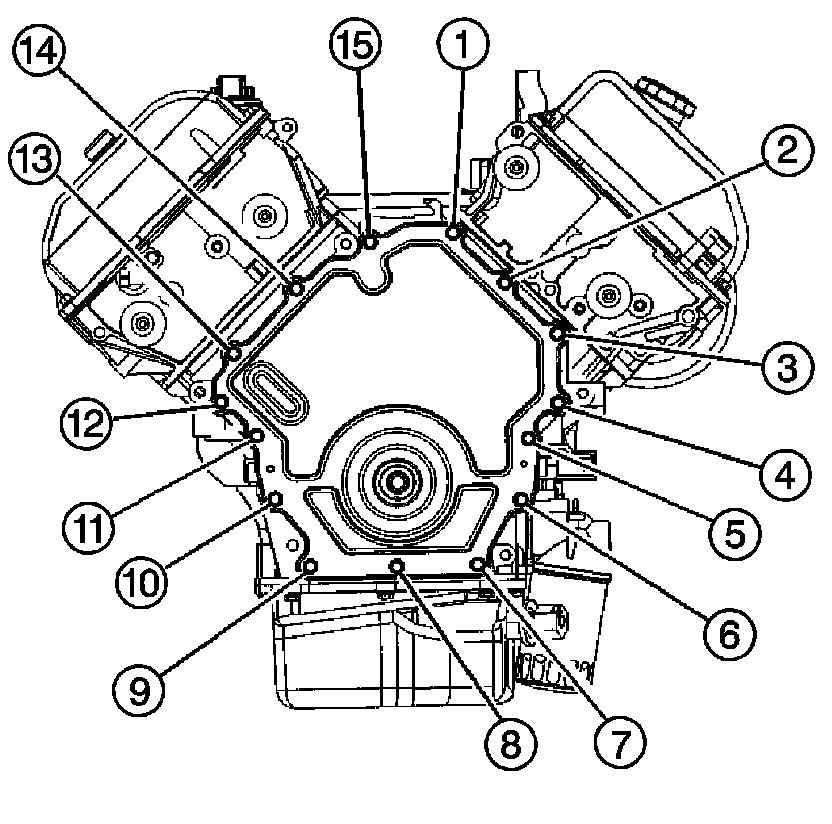

Engine Front Cover Bolt - In Sequence 10 Nm (89 lb in)
