Memory Seat Module (MSM) X1 (AN3)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

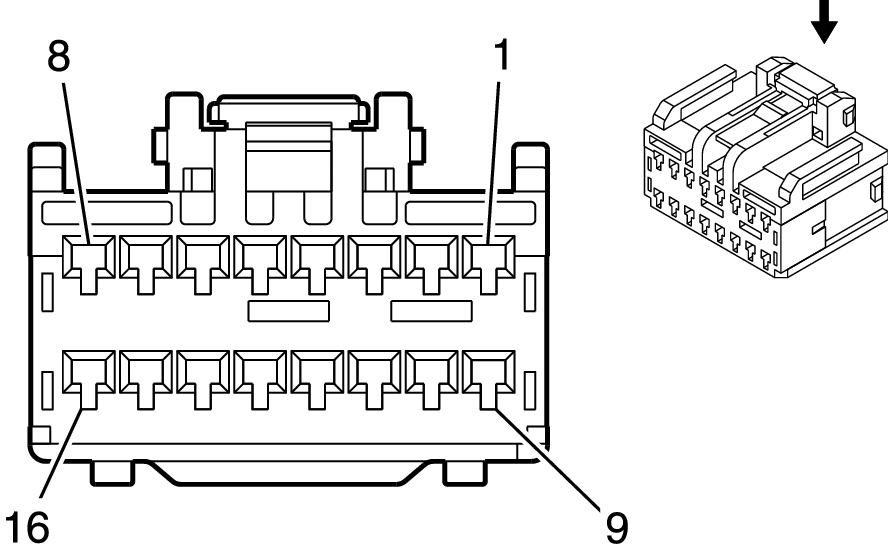

Fig 1: Memory Seat Module (MSM) X1 (AN3) Connector End Views
GM1653404Courtesy of GENERAL MOTORS CORP.
Memory Seat Module (MSM) X1 (AN3)

Pin Wire Circuit Function
1 1 PU 2424 Ground (without KB6)
2-3 - - Not Used
4 1 L-BU 2433 Ground (without KB6)
1 OG 6194 Ground (KB6)
5 - - Not Used
6 1 D-BU 2479 Heated Seat Cushion Element Control (without KB6)
1 BN 6193 Heated Seat Cushion Element Control (KB6)
7-8 - - Not Used
9 1 TN 285 Driver Seat Horizontal Motor Forward Control
10 1 L-GN 284 Driver Seat Horizontal Motor Rearward Control
11 1 L-GN 2078 Ground (without KB6)
12 1 D-GN 286 Driver Seat Front Vertical Motor Up Control
13 1 D-BU 287 Driver Seat Front Vertical Motor Down Control
14 1 PK 2077 Heated Seat Cushion Element Control (without KB6)
15 1 YE 282 Driver Seat Rear Vertical Motor Up Control
16 1 L-BU 283 Driver Seat Rear Vertical Motor Down Control
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: 6098-4611
  • Service Connector: 15134091
  • Description: 16-Way F 1.5 Series (BK)
Terminal Part Information
  • Terminated Lead: 13327201
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 8240-0128/22
  • Core/Insulation Crimp: C/A
