Engine Oil Pressure (EOP) Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

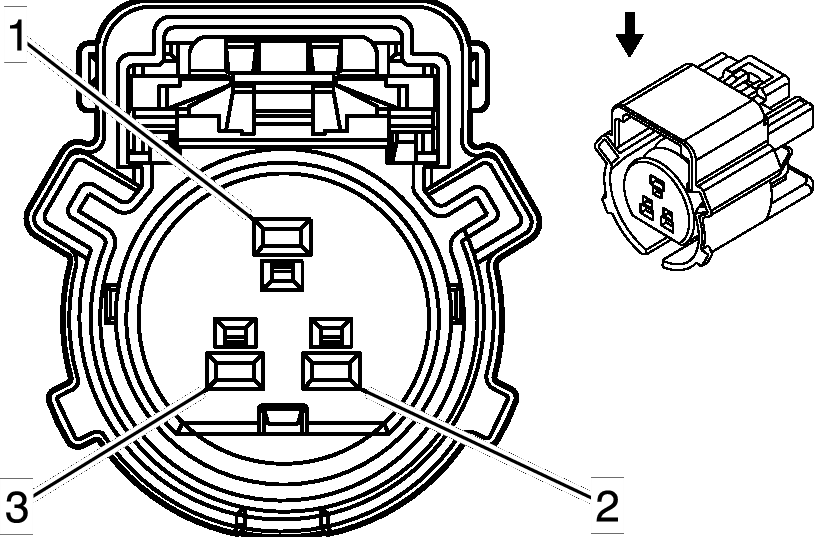

Fig 1: Engine Oil Pressure (EOP) Sensor Connector End View
GM2159957Courtesy of GENERAL MOTORS CORP.
Engine Oil Pressure (EOP) Sensor

Pin Wire Circuit Function
1 0.5 TN/WH 331 Oil Pressure Sensor Signal
2 0.5 GY 2705 5-Volt Reference
3 0.5 BK 2755 Low Reference
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13589761
  • Service Connector: 13501882
  • Description: 3-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575413
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/1
