Folding Seat Motor- Left Rear (ARS)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

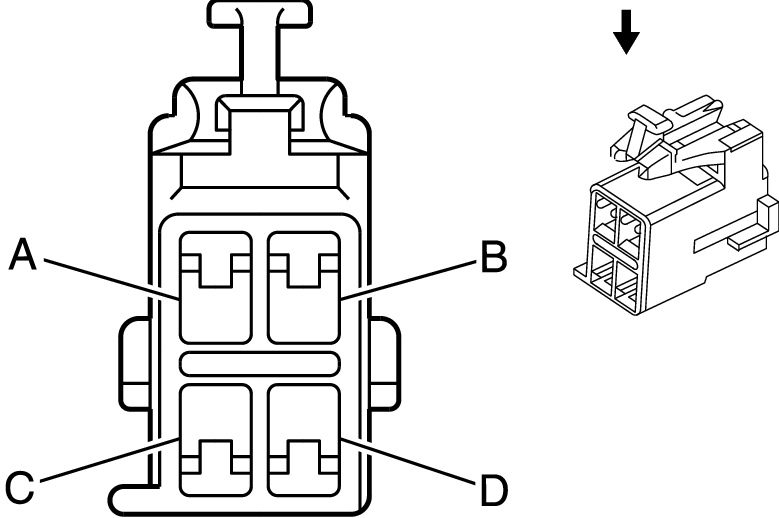

Fig 1: Folding Seat Motor - Left Rear (ARS) Connector End View
GM39667Courtesy of GENERAL MOTORS CORP.
Folding Seat Motor- Left Rear (ARS)

Pin Wire Circuit Function
A 0.8 RD/WH 4840 Battery Positive Voltage
B 0.8 BK 1150 Ground
C 0.5 PU 6811 Left Rear Seat Fold/Tumble Signal
D 0.8 BK 1150 Ground
Connector Part Information
  • Harness Type: Left Rear Seat
  • OEM Connector: 12129136
  • Service Connector: 12129136
  • Description: 4-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly- 12129136
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
