Headlamp - Right Low Beam (X88)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

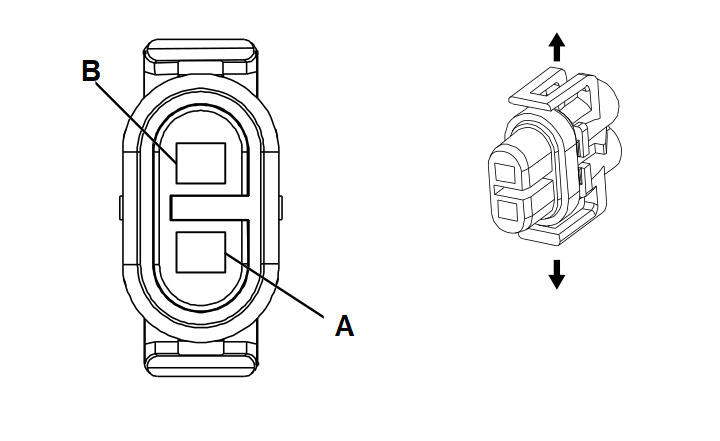

Fig 1: Headlamp - Right Low Beam (X88) Connector End View
GM1413064Courtesy of GENERAL MOTORS CORP.
Headlamp- Right Low Beam (X88)

Pin Wire Circuit Function
A 0.8 BK 150 Ground
B 1 YE 312 Right Headlamp Low Beam Control
Connector Part Information
  • Harness Type: Right Headlamp
  • OEM Connector: 12124819
  • Service Connector: 12085498
  • Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
