Heated Seat Control Module X3 (KA1 or W03)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

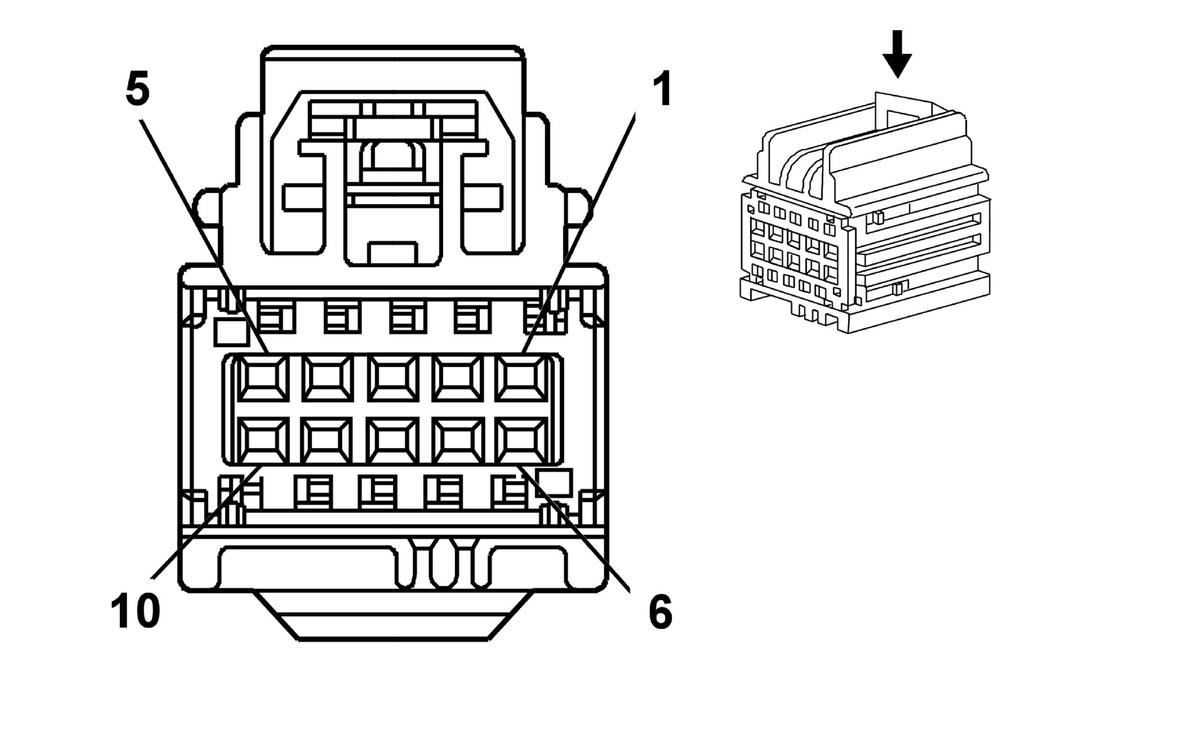

Fig 1: Heated Seat Control Module X3 (KA1 or W03) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1-5	-	-	Not Used
6	0.5 D-GN	5060	Low Speed GMLAN Serial Data
7-10	-	-	Not Used

Connector Part Information

Harness Type: Driver Seat
OEM Connector: 7283-9040-30
Service Connector: 15127042
Description: 10-Way F YESC Kaizen Series (BK)

Terminal Part Information

Terminal/Tray: SAITS-A03T-M064 / 14
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 15315247 / J-35616-64A (L-BU)
