Heated Seat Control Module X4 (KA1 or W03)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

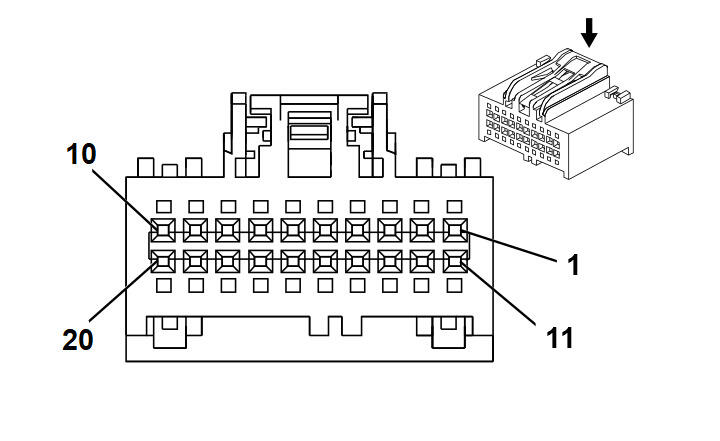

Fig 1: Heated Seat Control Module X4 (KA1 or W03) Connector End View
GM1715223Courtesy of GENERAL MOTORS CORP.
Heated Seat Control Module X4 (KA1 or W03)

Pin Wire Circuit Function
1-8 - - Not Used
9 0.35 YE/BK 2079 Driver Heated Seat Cushion Temperature Sensor Signal
10 0.35 TN 2436 Driver Heated Seat Back Temperature Sensor Signal
11-18 - - Not Used
19 0.35 D-BU 2425 Driver Heated Seat Back Temperature Sensor Signal
20 0.35 GY 2434 Front Passenger Heated Seat Cushion Temperature Sensor Signal
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: 31410-1200
  • Service Connector: 15126711
  • Description: 20-Way F USCAR 0.64 Series (BK)
Terminal Part Information
  • Terminal/Tray: SAITS-A03T-M064 / 14
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 15315247 / J-35616-64A (L-BU)
