Heater Coolant Pump (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

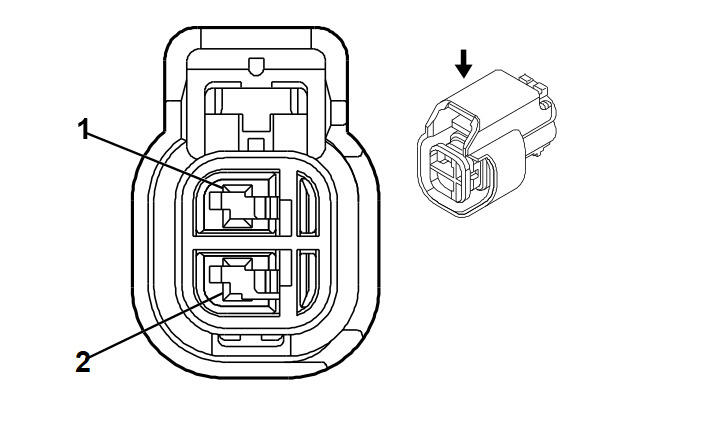

Fig 1: Heater Coolant Pump (HP2) Connector End View
GM1659331Courtesy of GENERAL MOTORS CORP.
Heater Coolant Pump (HP2)

Pin Wire Circuit Function
1 0.8 BK 550 Ground
2 0.8 OG/WH 7585 Motor Feed
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 15383327
  • Service Connector: 88988054
  • Description: 2-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575424
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4103-08/9
  • Core/Insulation Crimp: E/1
