Inflatable Restraint Side Impact Sensor (SIS) - Left Rear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

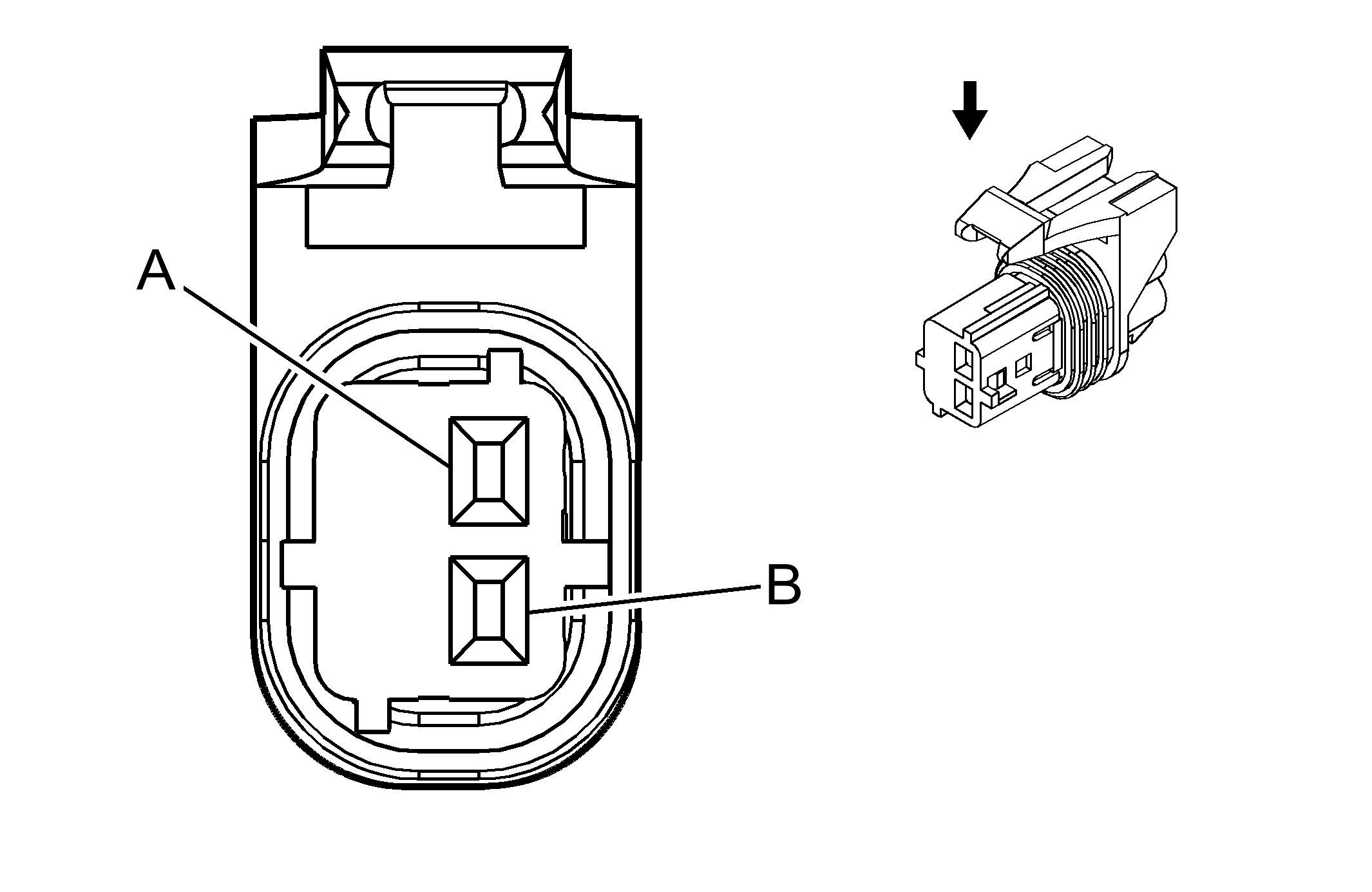

Fig 1: Inflatable Restraint Side Impact Sensor (SIS) - Left Rear Connector End View
GM744046Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Sensor (SIS)- Left Rear

Pin Wire Circuit Function
A 0.5 GY/BK 6621 Low Reference
B 0.5 D-GN/WH 6620 Left Rear Side Impact Sensing Module Signal
Connector Part Information
  • Harness Type: Left Rear Door
  • OEM Connector: 15356723
  • Service Connector: 15306439
  • Description: 2-Way F GT 150 Series, Sealed (YE)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly- 15306439
  • Release Tool: Not Available
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
