Instrument Panel Cluster (IPC) (Z75)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

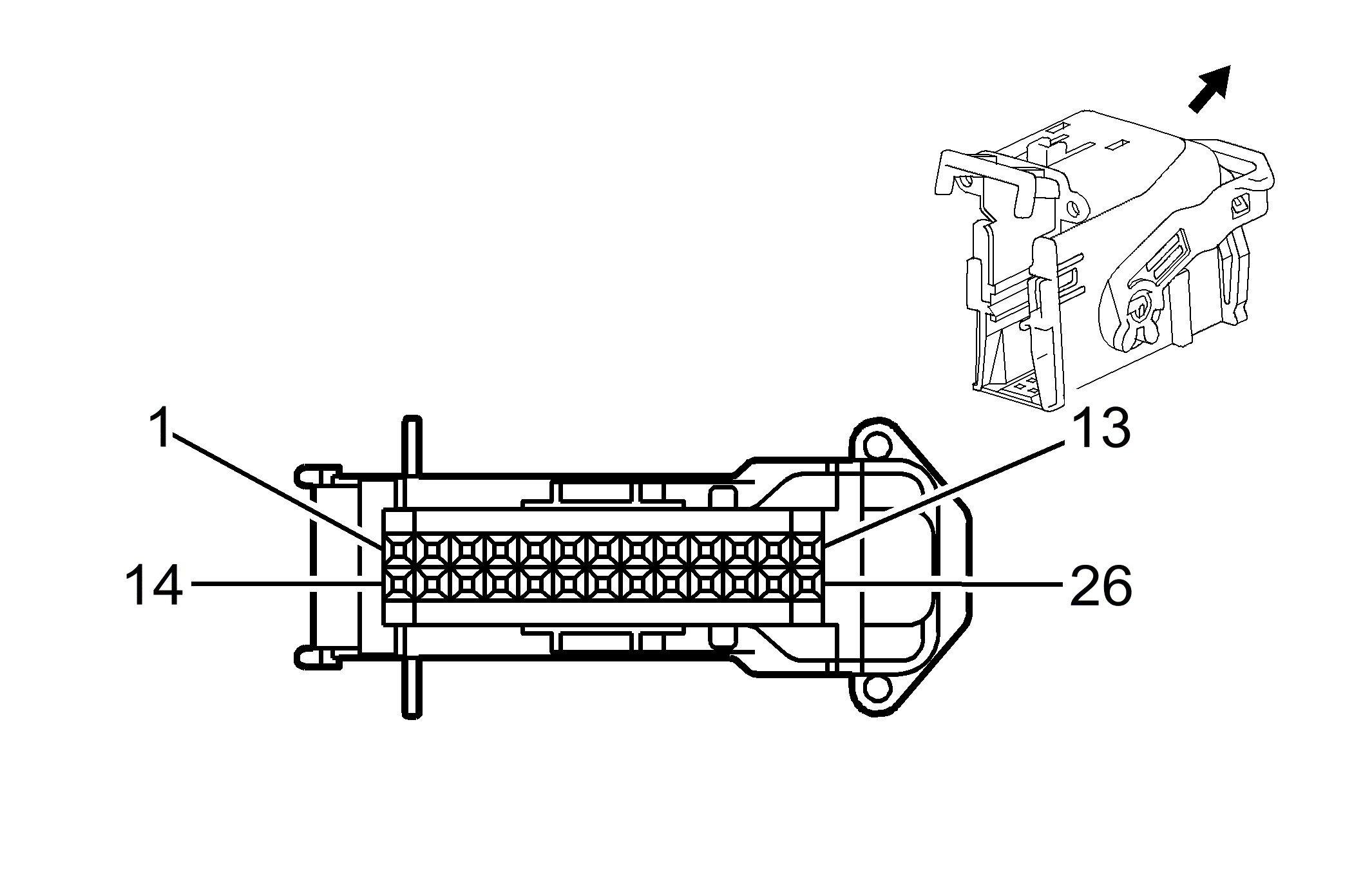

Fig 1: Instrument Panel Cluster (IPC) (Z75) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 RD/WH	2840	Battery Positive Voltage
2	0.35 PK	1639	Ignition Voltage
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data
4	-	-	Not Used
5	0.5 BK/WH	1851	Ground
6-7	-	-	Not Used
8	0.5 PU	333	Brake Fluid Level Sensor Signal
9	0.35 BN/WH	419	Malfunction Indicator Lamp (MIL) Control
10-11	-	-	Not Used
12	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
13	0.35 BN	897	Low Reference
14-16	-	-	Not Used
17	0.35 TN	185	Low Washer Fluid Indicator Control
18-19	-	-	Not Used
20	0.35 PK	893	Driver Information Center Select Menu Switch Signal
21	0.35 PU	5234	Passenger Seat Belt Indicator
22	0.35 D-BU	2307	Passenger Air Bag On Indicator Control
23	0.35 D-GN	2308	Passenger Air Bag Off Indicator Control
24-26	-	-	Not Used

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 15447995
Service Connector: Pending
Description: 26-Way F Lever Assisted (BK)

Terminal Part Information

Pins: 1-3, 9, 12, 13, 17, 21-23
Terminated Lead: 13575532
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: J/J

Pins: 5, 8
Terminated Lead: 13575814
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: K/K
