Liftgate Module (LGM) X3 (E61)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

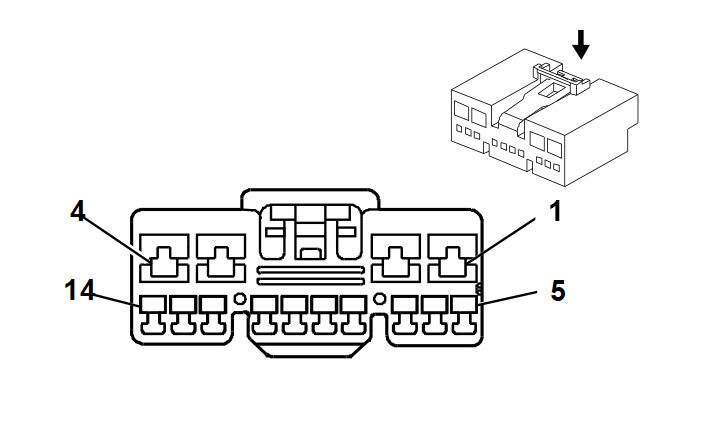

GM1469285Courtesy of
Connector Part Information
  • Harness Type: Liftgate Actuator Assembly
  • OEM Connector: 15466088
  • Service: 19179972
  • Description: 14-Way F 64/2.8 YESC Series (L-GY)
Terminal Part Information
  • Terminated Lead: 13575836
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 7116-4720-02/14
  • Core/Insulation Crimp: Not Available
Liftgate Module (LGM) X3 (E61)

Pin Wire Circuit Function
1 2 WH 5798 Liftgate Motor Open Control
2 2 BN/WH 5799 Liftgate Motor Close Control
3-4 - - Not Used
5 0.5 D-BU/WH 5796 Liftgate Fully Open Signal
6 0.5 OG 6117 Signal Return
7 - - Not Used
8 0.5 TN/BK 5804 Signal Return
9 0.5 L-BU/WH 5805 Liftgate Position 1 Signal
10 0.5 PU 5806 Liftgate Position 2 Signal
11 0.5 D-GN 5804 Signal Return
12 - - Not Used
13 0.5 TN 5794 Liftgate Engage Control
14 0.5 D-BU 5795 Liftgate Disengage Control
