Data Communication Schematics

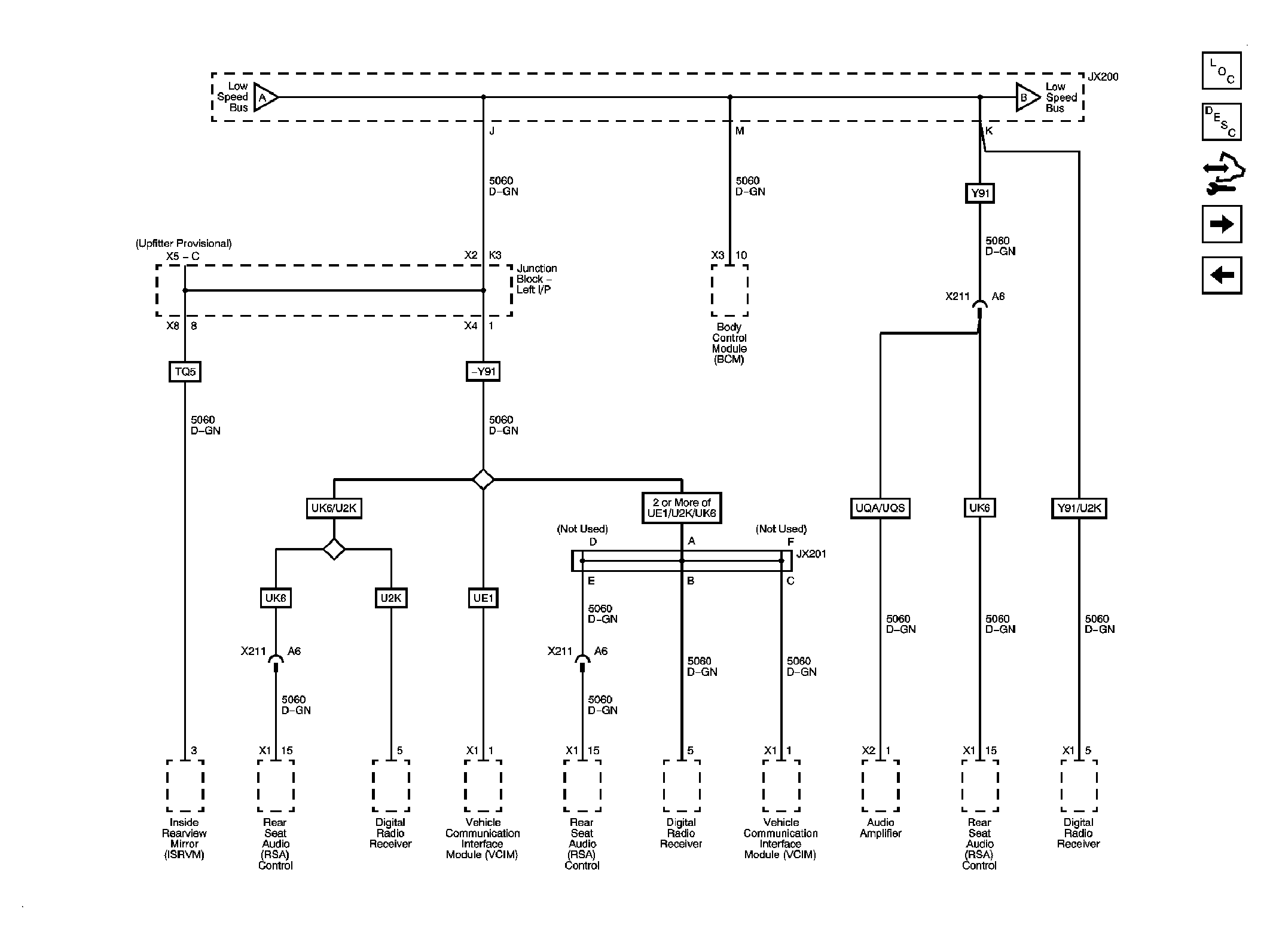

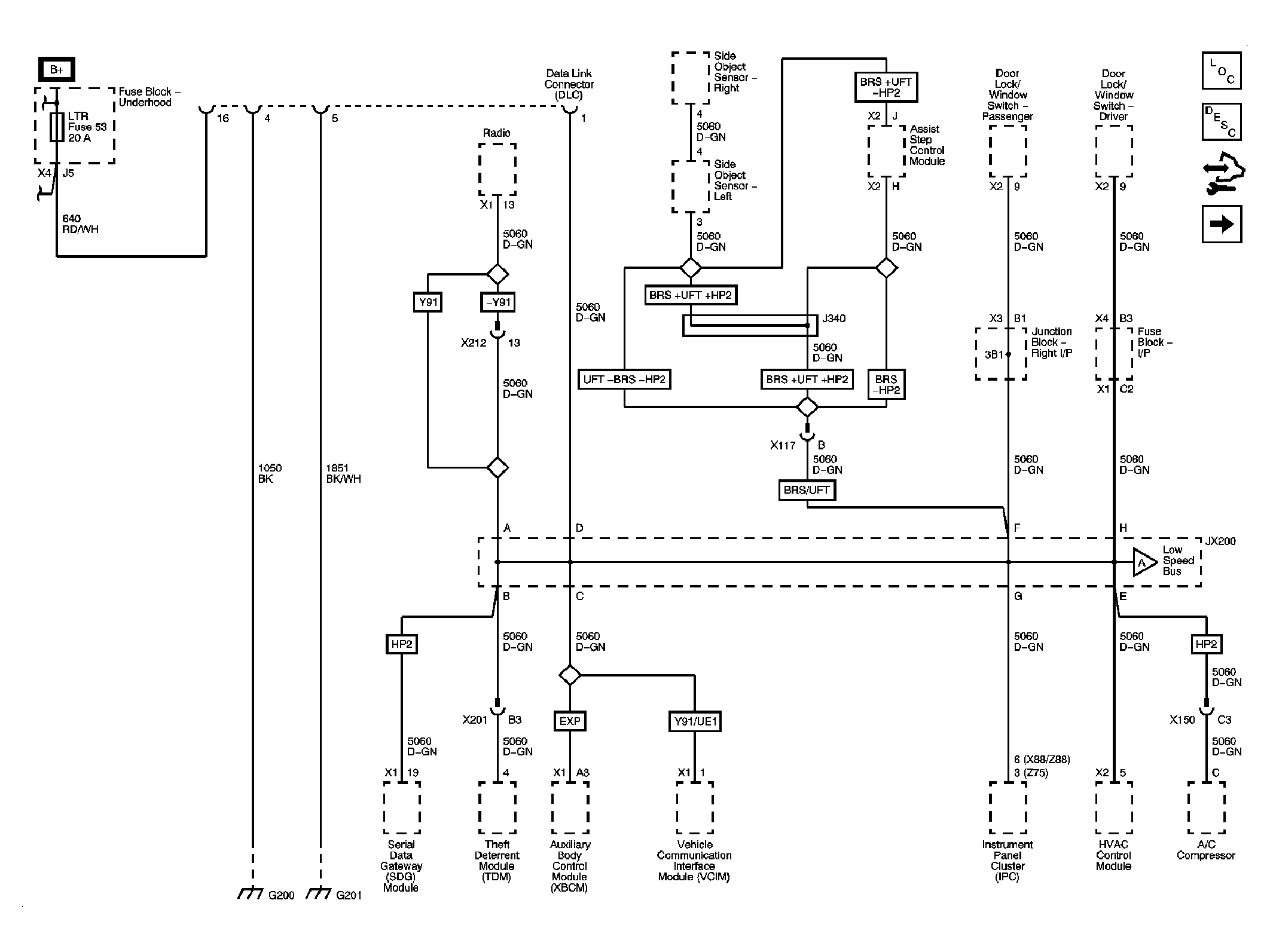

Fig 1: Low Speed Bus - JX200 - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 2: Low Speed Bus - JX200 - 2 of 3

Courtesy of GENERAL MOTORS CORP.

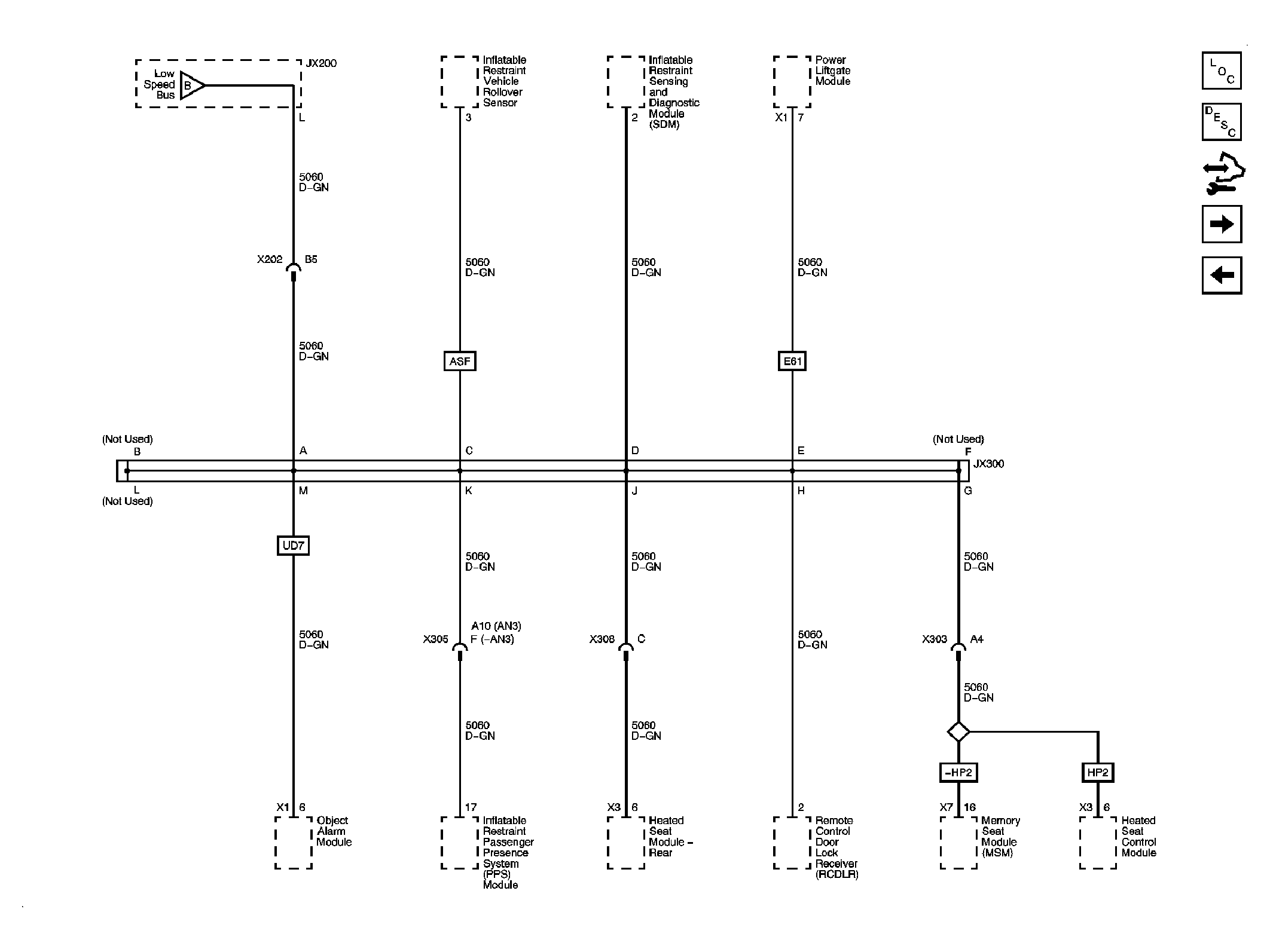

Fig 3: Low Speed Bus - JX200 - 3 of 3 and JX300

Courtesy of GENERAL MOTORS CORP.

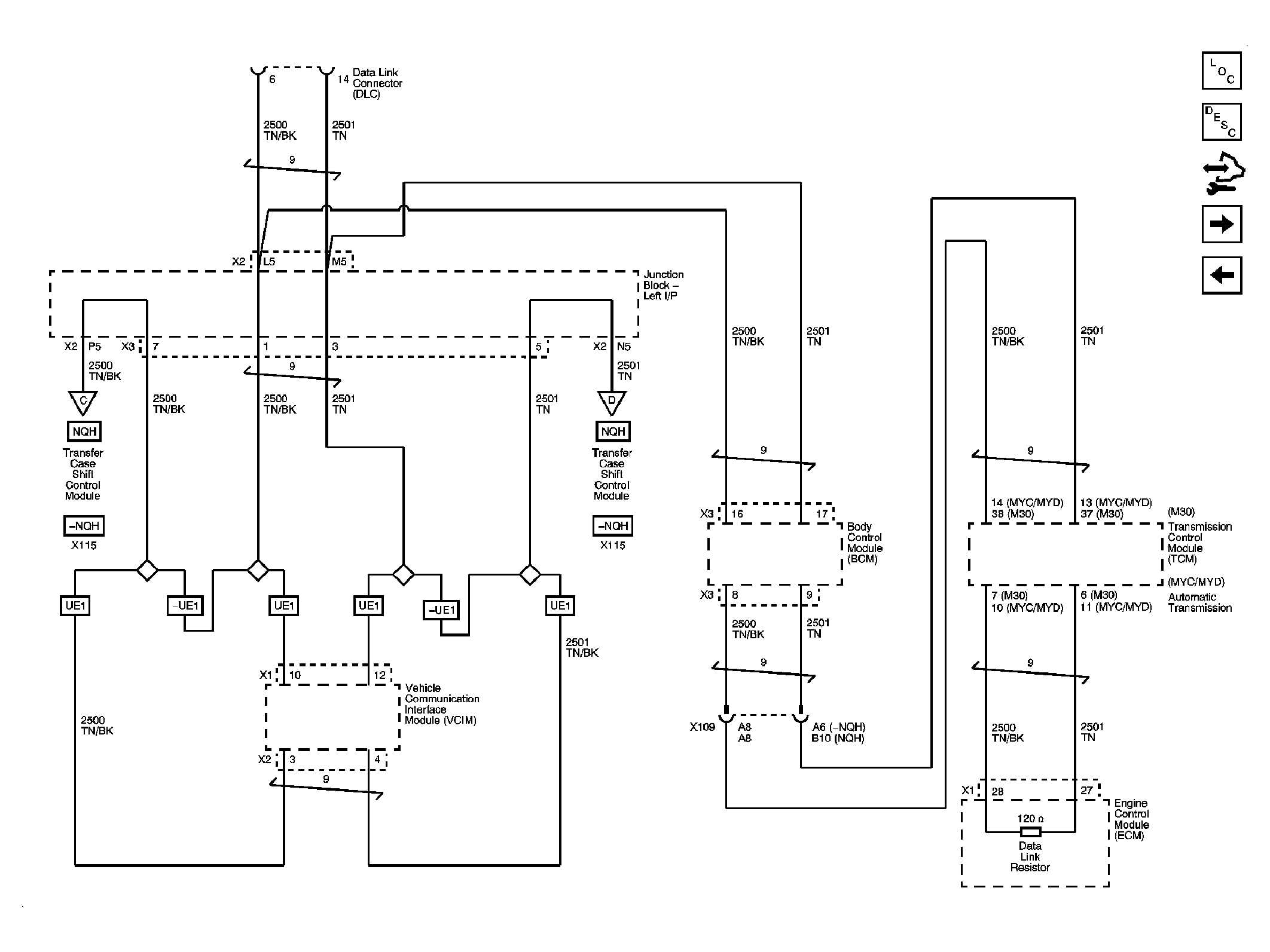

Fig 4: High Speed Bus - 1 of 2

Courtesy of GENERAL MOTORS CORP.

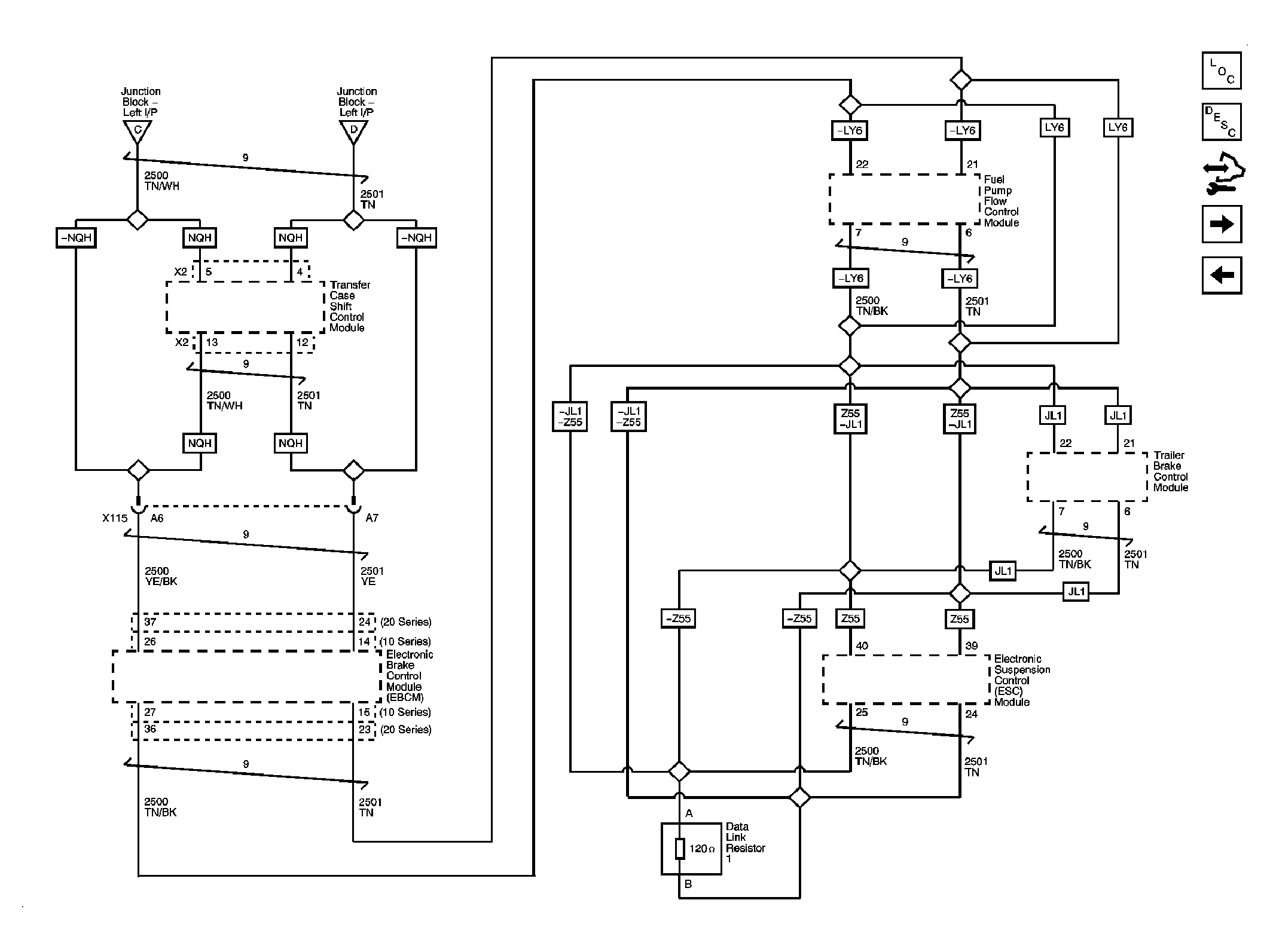

Fig 5: High Speed Bus - 2 of 2

Courtesy of GENERAL MOTORS CORP.

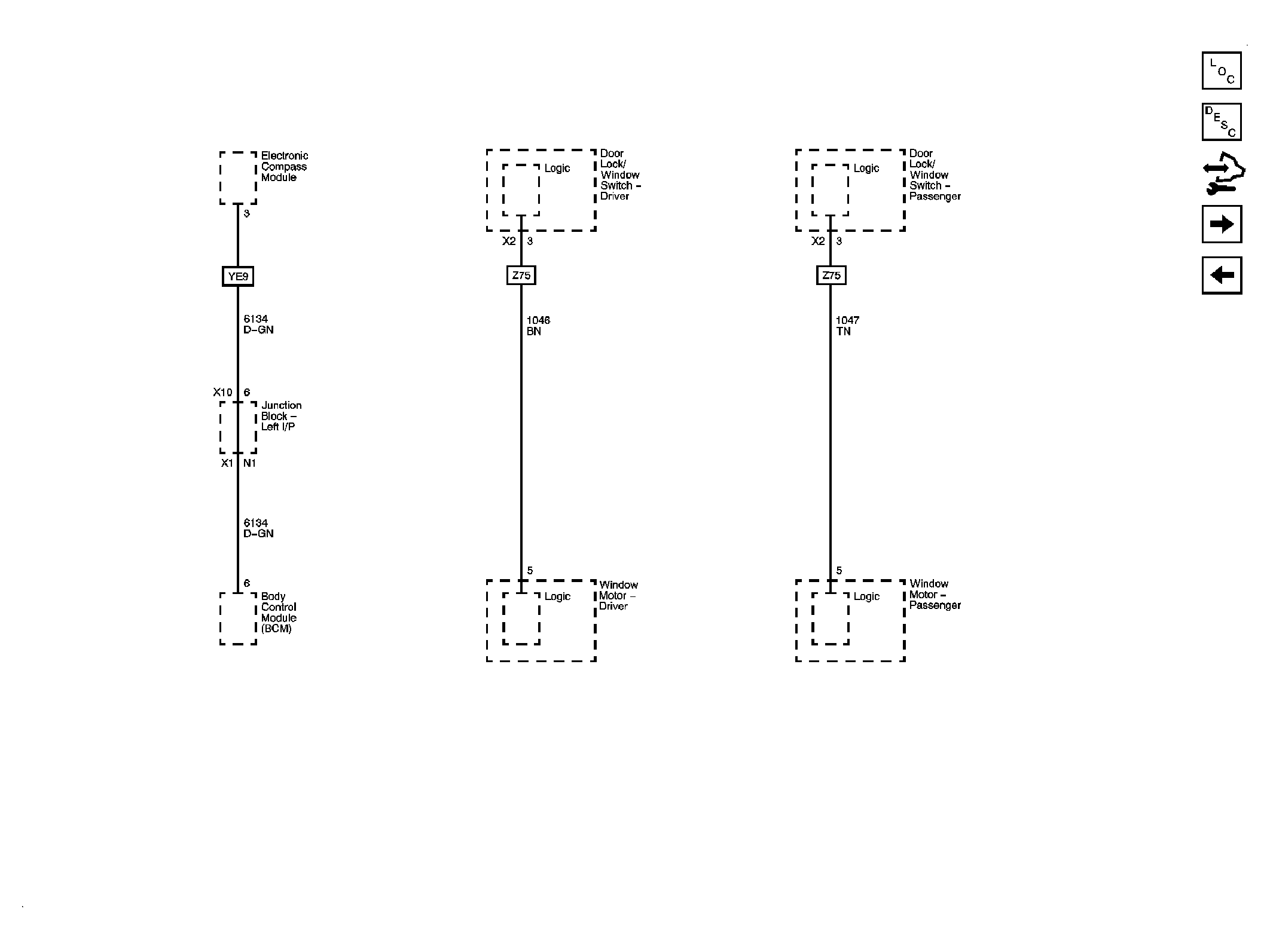

Fig 6: LIN Bus

Courtesy of GENERAL MOTORS CORP.

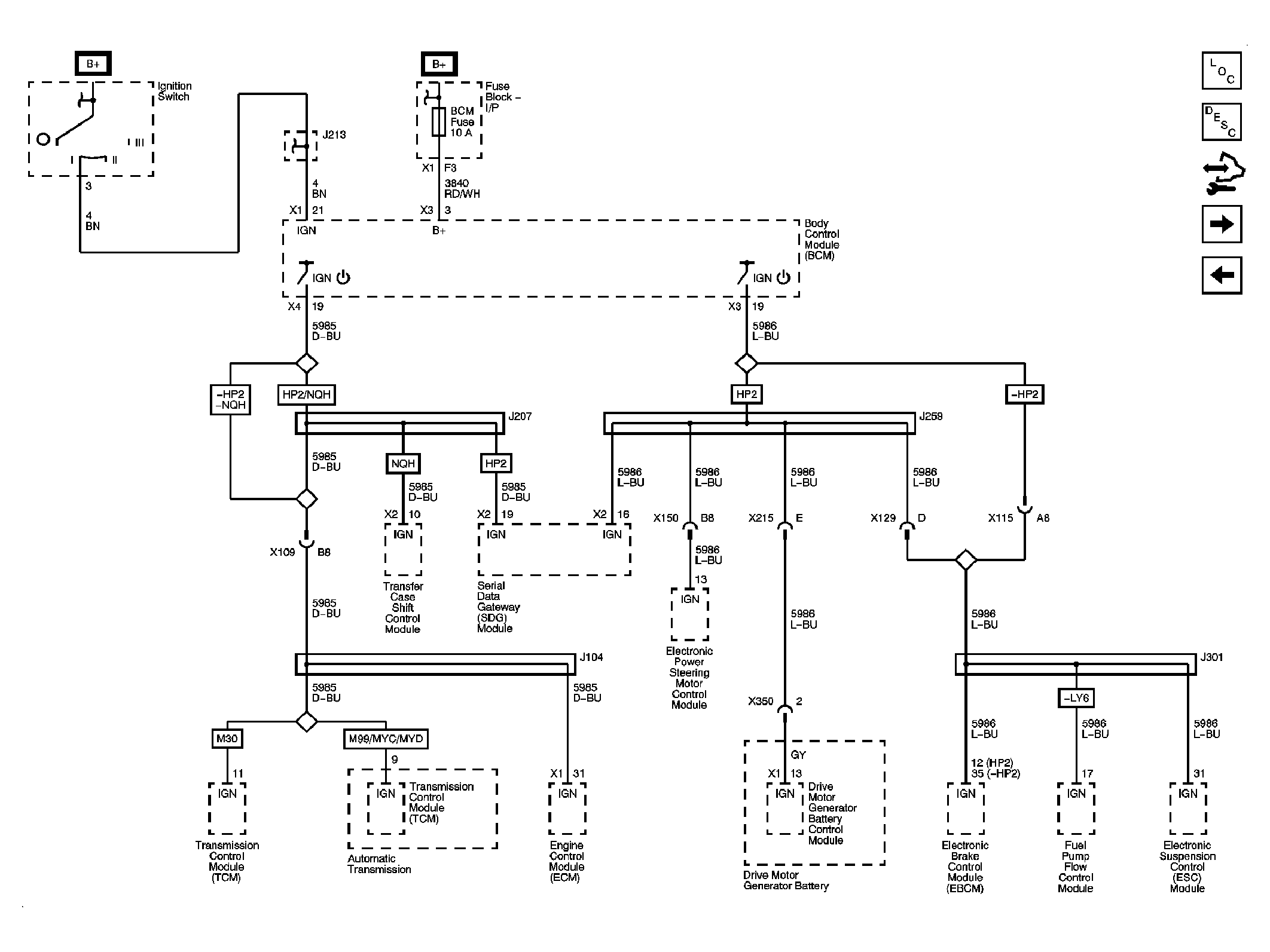

Fig 7: Serial Data Communication Enable and Wake-up Circuits

Courtesy of GENERAL MOTORS CORP.

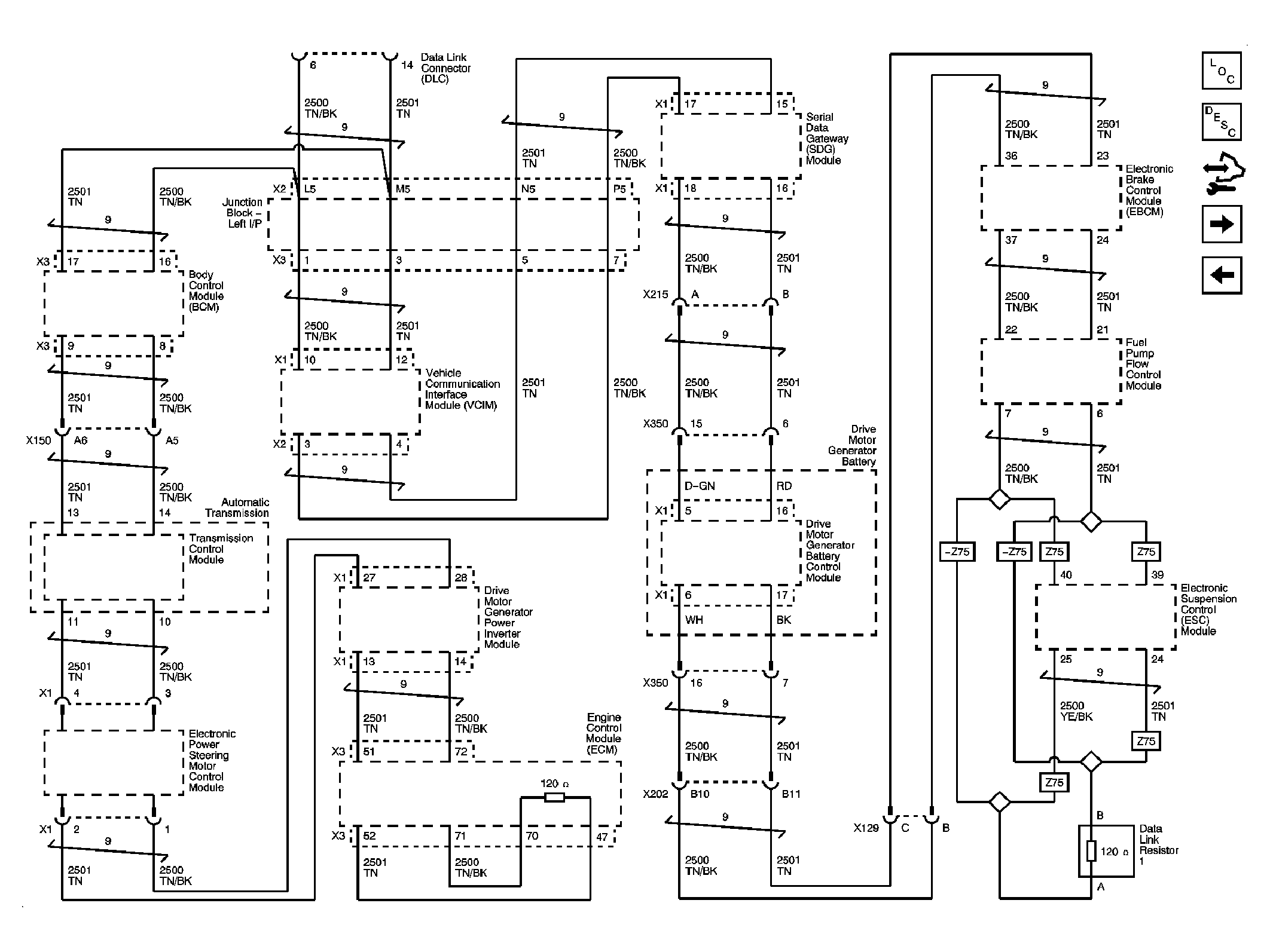

Fig 8: High Speed Bus (HP2)

Courtesy of GENERAL MOTORS CORP.

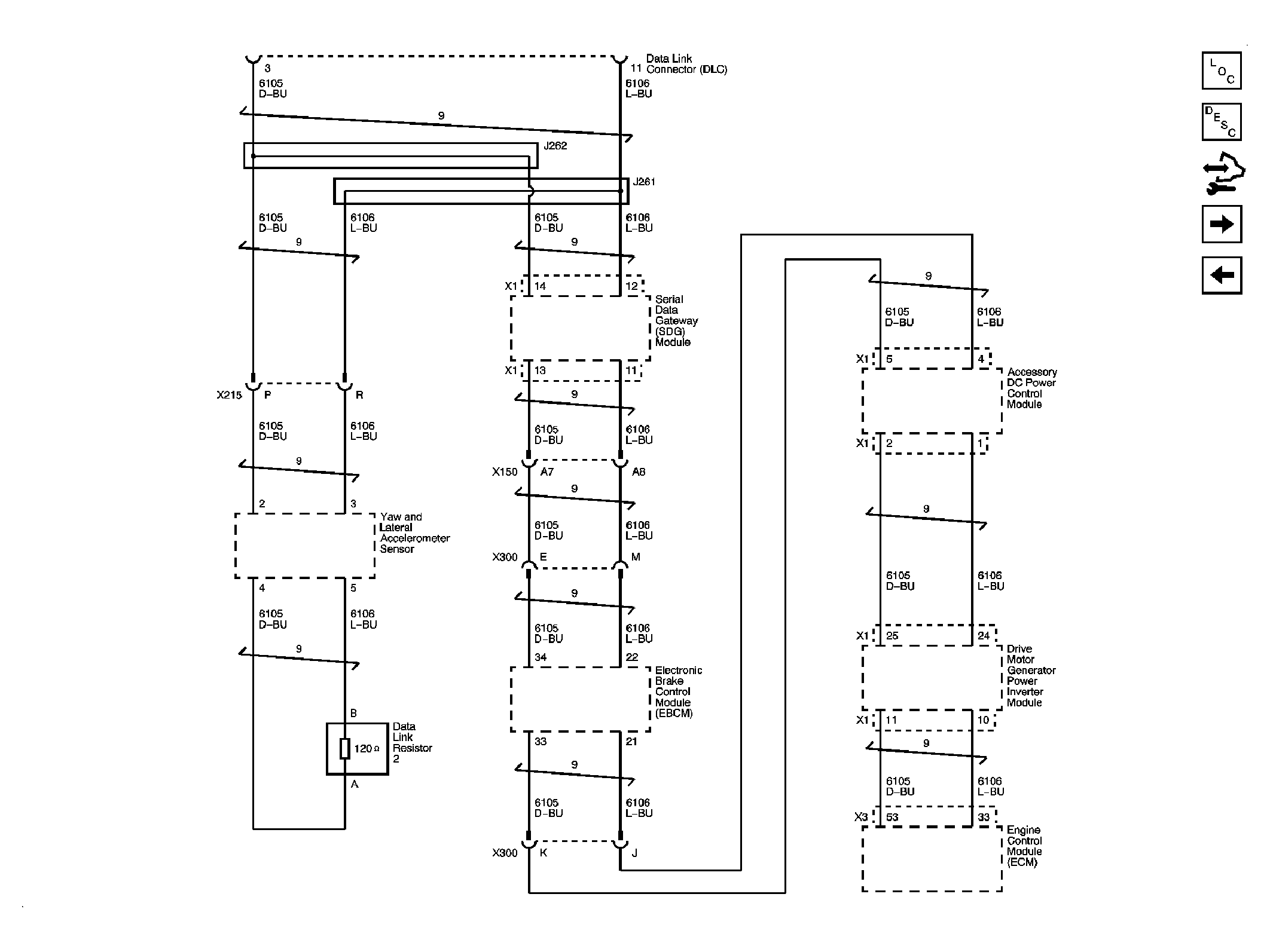

Fig 9: Powertrain Expansion Bus (HP2)

Courtesy of GENERAL MOTORS CORP.

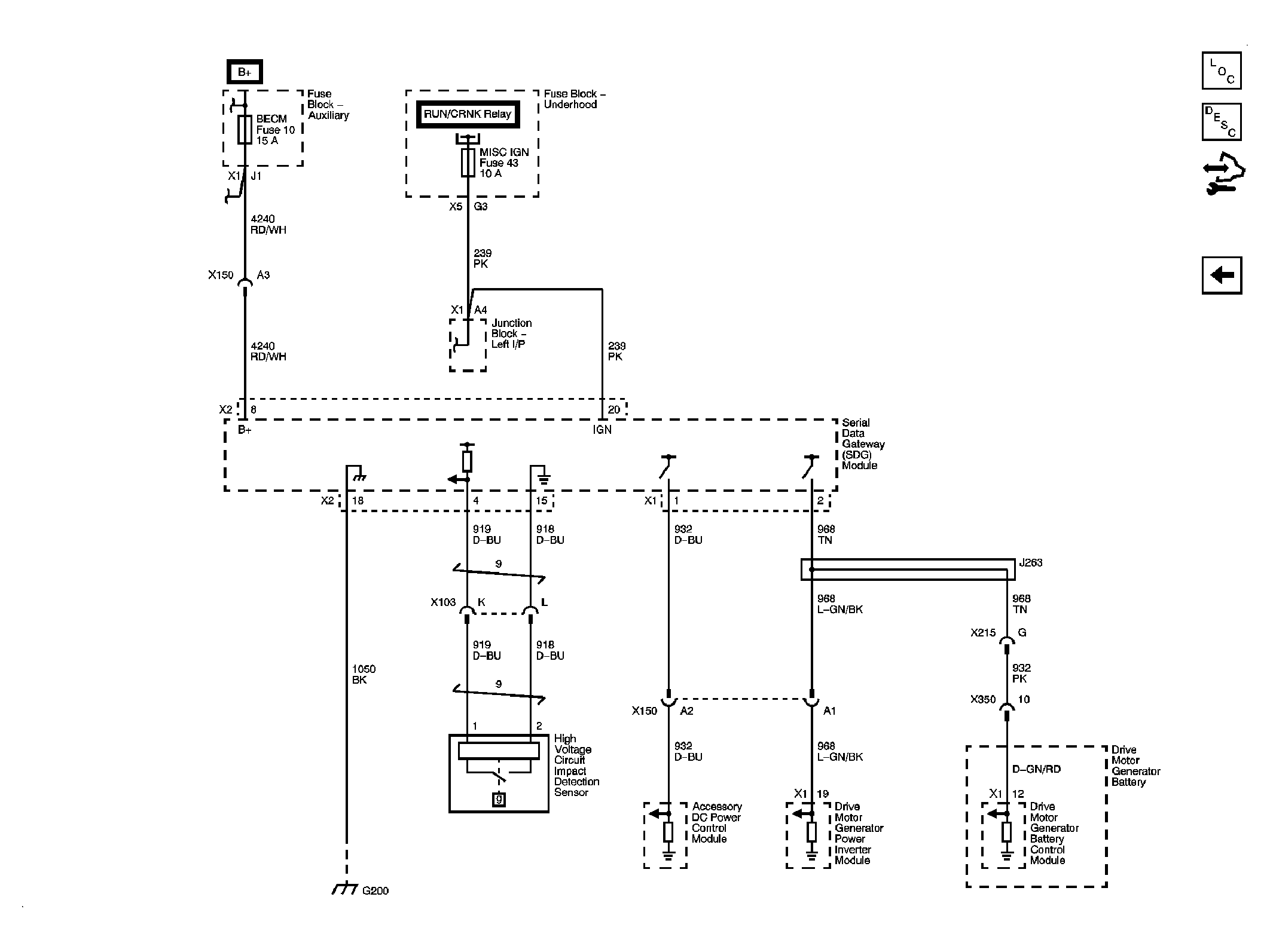

Fig 10: Serial Data Gateway (SDG) Module (HP2)

Courtesy of GENERAL MOTORS CORP.
