Electronic Suspension Control Module Replacement

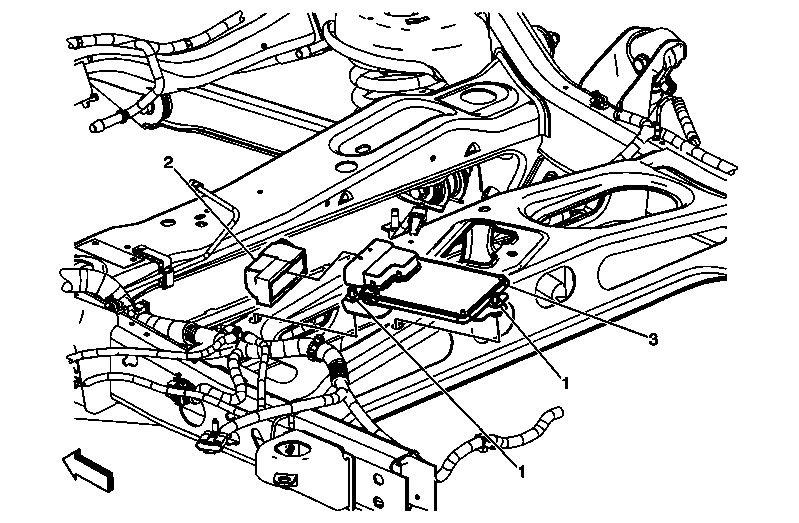

Fig 1: View Of Electronic Suspension Control Module & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the spare tire and wheel assembly to access the control module.
1	Electronic Suspension Control Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Loosen the module nuts. Tighten: 10 N.m (89 lb ft)
2	Electronic Suspension Control Module (ESC) Connector Tip: Disconnect the electrical connector from the module.
3	Electronic Suspension Control (ESC) Module Procedure Remove the ESC module from the slots in the frame. Reprogram the ESC module. Refer to Electronic Suspension Control Module Programming and Setup (Without Z95) or Electronic Suspension Control Module Programming and Setup (With Z95) .
