Tire Pressure Module




Component Connector End Views

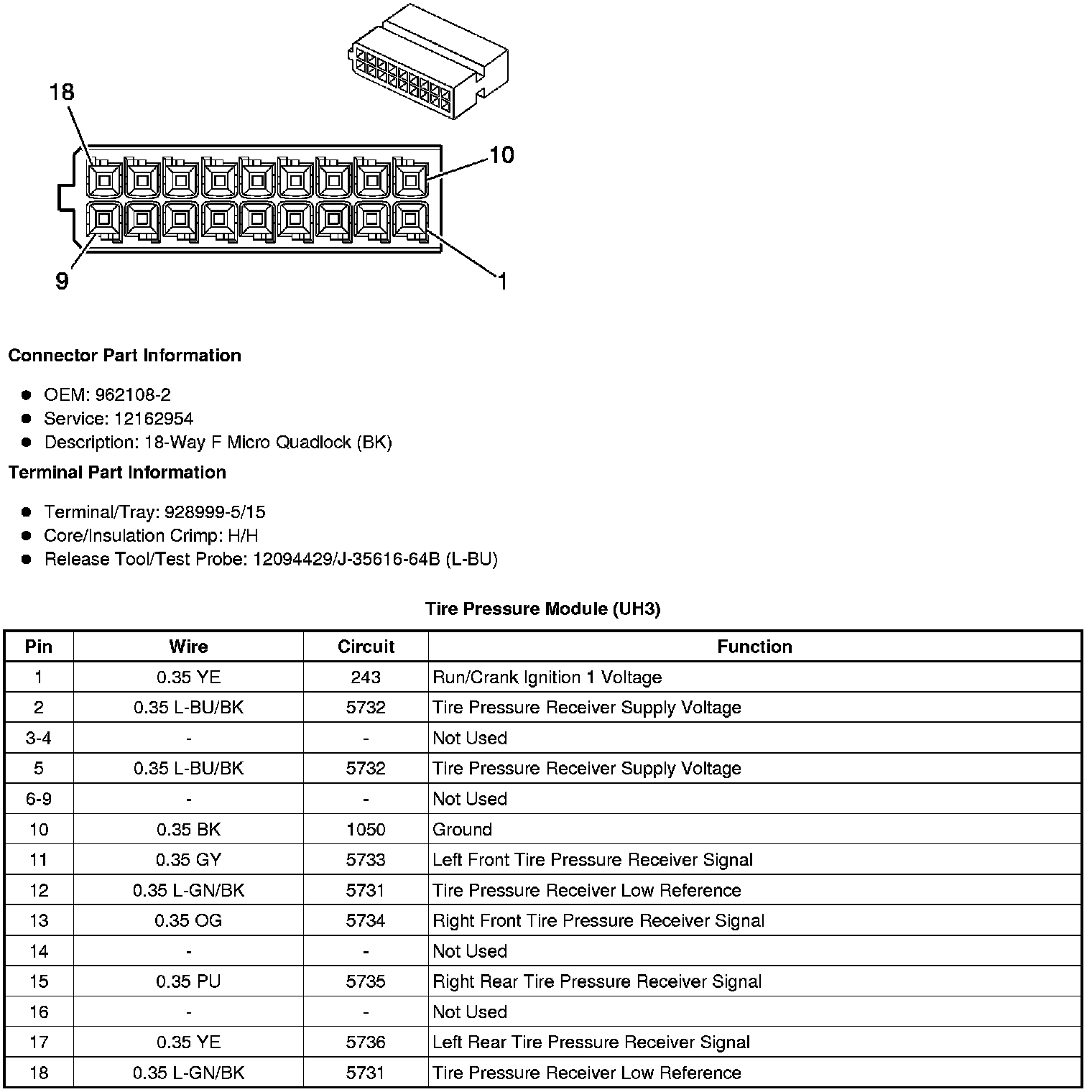

Tire Pressure Module (UH3)






Tire Pressure Receiver - Left Front (UH3)

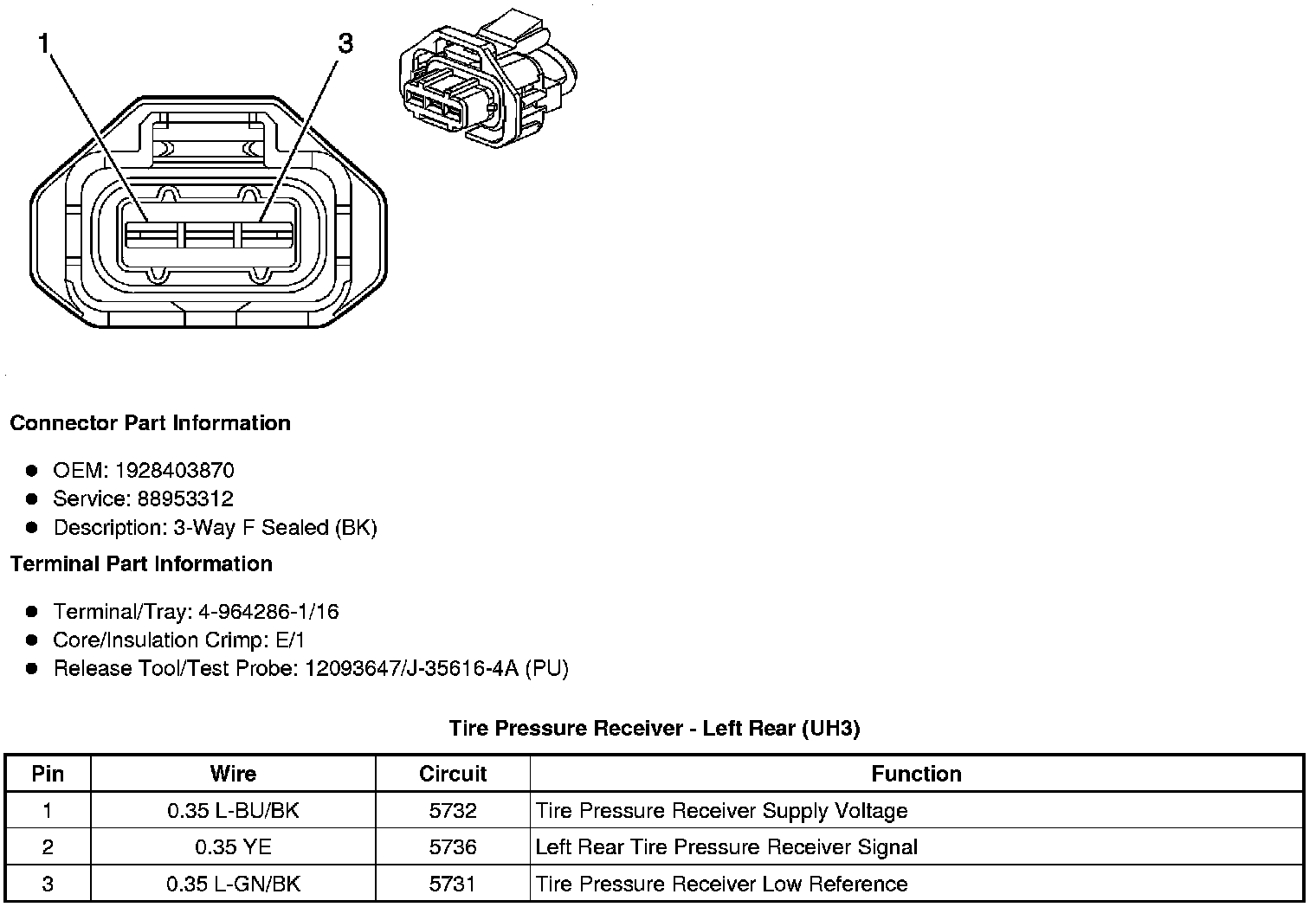

Tire Pressure Receiver - Left Rear (UH3)

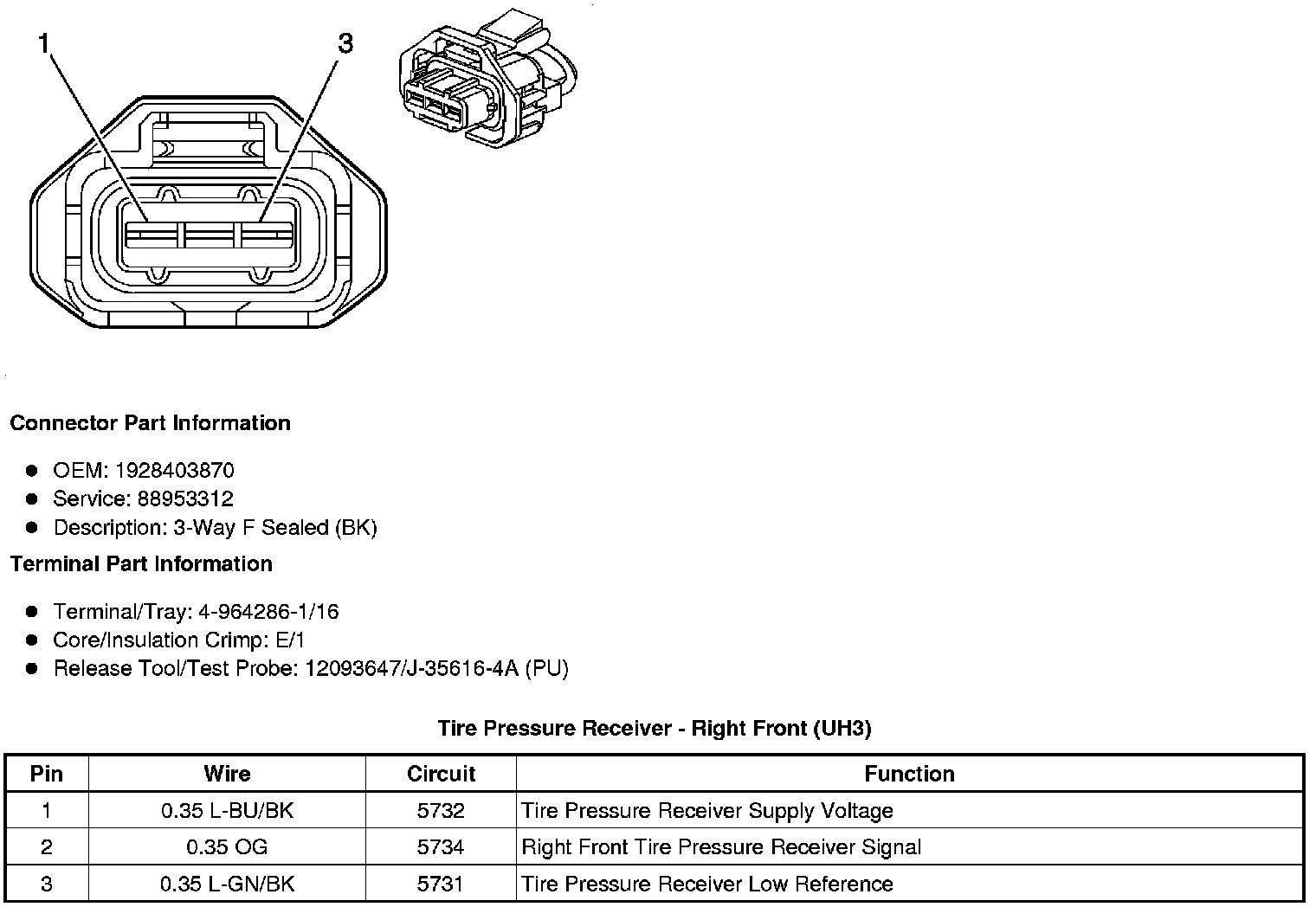

Tire Pressure Receiver - Right Front (UH3)






Tire Pressure Receiver - Right Rear (UH3)
