Axle Shaft Assembly

Front Wheel Drive Shaft Disassembled Views

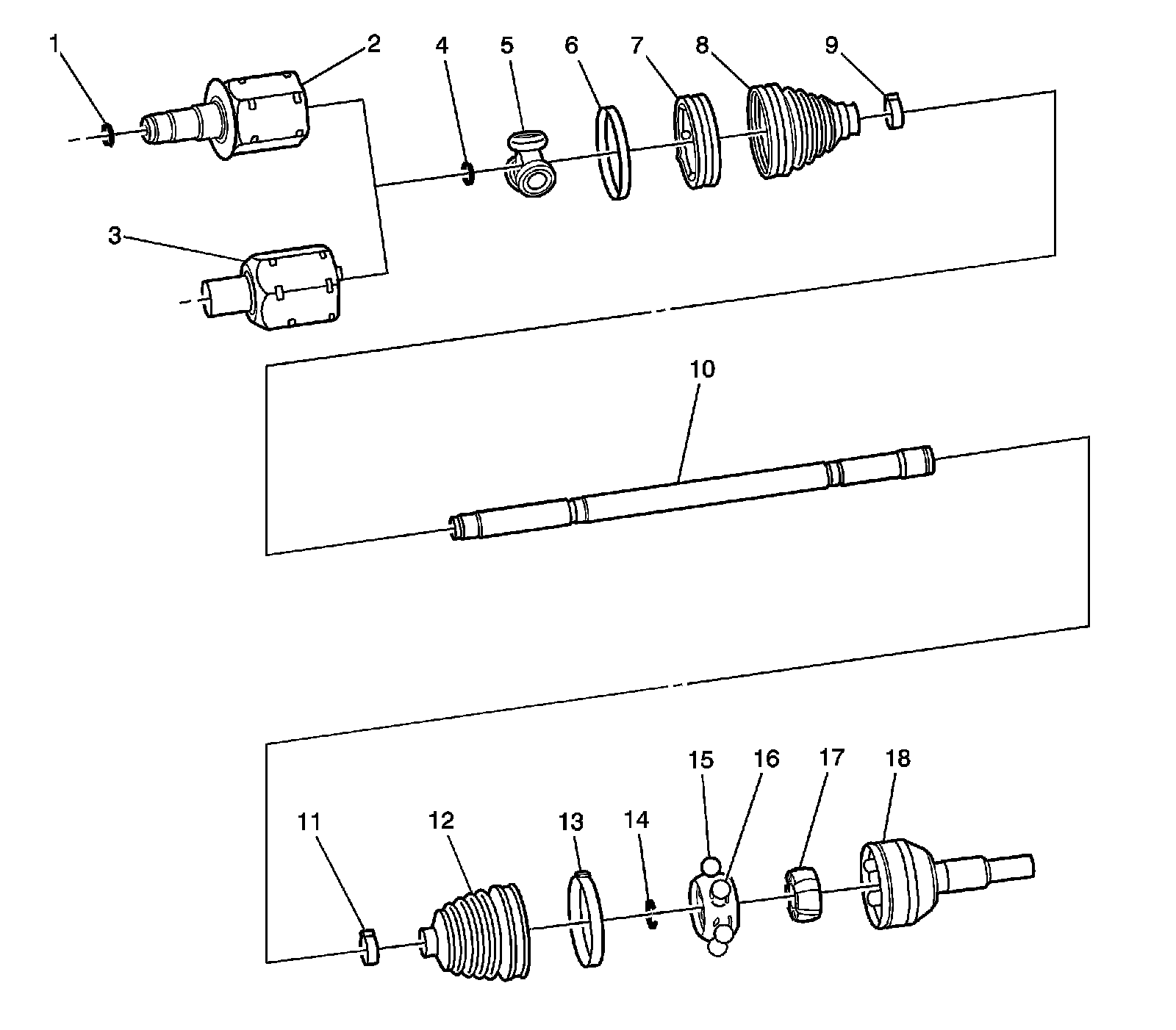

Wheel Drive Shafts Disassembled Views




1 - Retaining Ring, Right Tripod Joint Race
2 - Tripod Joint Race, Right Inner AWD
3 - Tripod Joint Race, Left Inner AWD
4 - Spacer Retaining Ring
5 - Spider Assembly
6 - Joint Clamp
7 - Boot Trilobe Insert
8 - Inner Joint Seal
9 - Shaft Clamp
10 - Bar, Wheel Drive Shaft
11 - Shaft Clamp
12 - Outer Joint Seal
13 - Race Clamp
14 - Retaining Ring
15 - CV Joint Balls
16 - Fixed Cage
17 - Fixed Inner Race
18 - Fixed Outer Race
