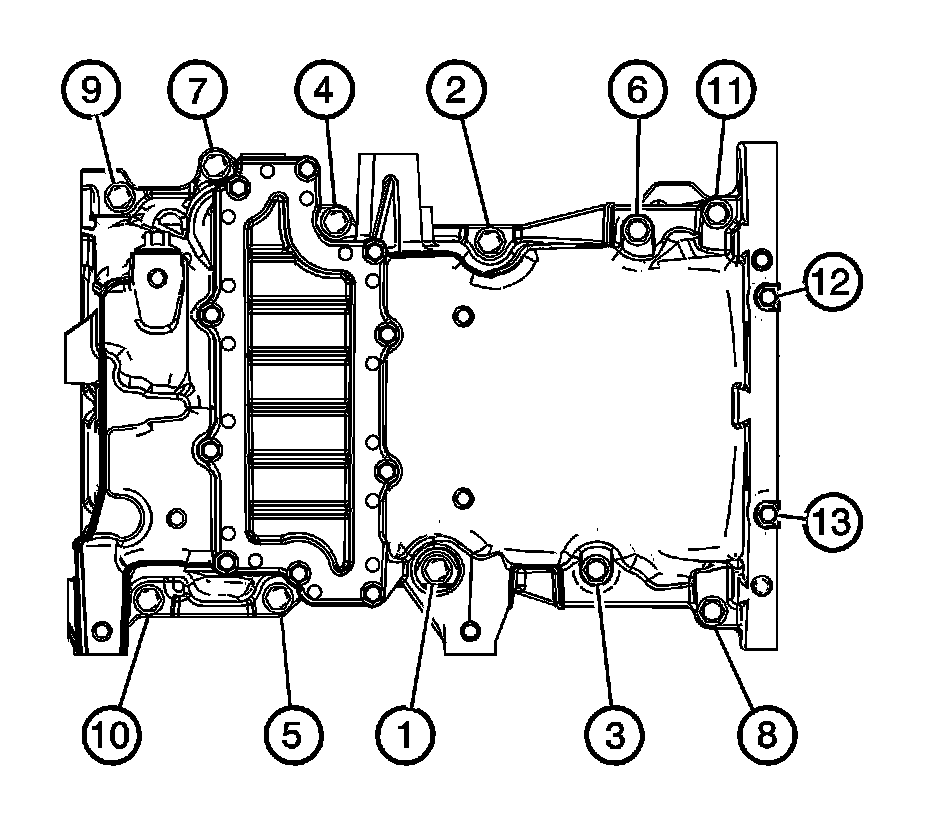

Oil Pan, Engine
Oil PanAWD:
8 mm bolts (1-11) 23 Nm (17 lb ft)
6 mm bolts (12, 13) 10 Nm (89 lb in)
Bolt - Crankshaft Rear Oil Seal Housing M6 10 Nm (89 lb in)
8 mm bolts (1-11) 23 Nm (17 lb ft)
6 mm bolts (12, 13) 10 Nm (89 lb in)
Bolt - Crankshaft Rear Oil Seal Housing M6 10 Nm (89 lb in)
