System Specifications

TIMING CHAIN/BELT TENSIONER

Primary Camshaft Drive Chain Tensioner
First Pass 5 Nm (44 lb in)
Final Pass 25 Nm (18 lb ft).

Secondary Camshaft Drive Chain Tensioner
First Pass 5 Nm (44 lb in)
Final Pass 25 Nm (18 lb ft)

CRANKSHAFT PULLEY

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

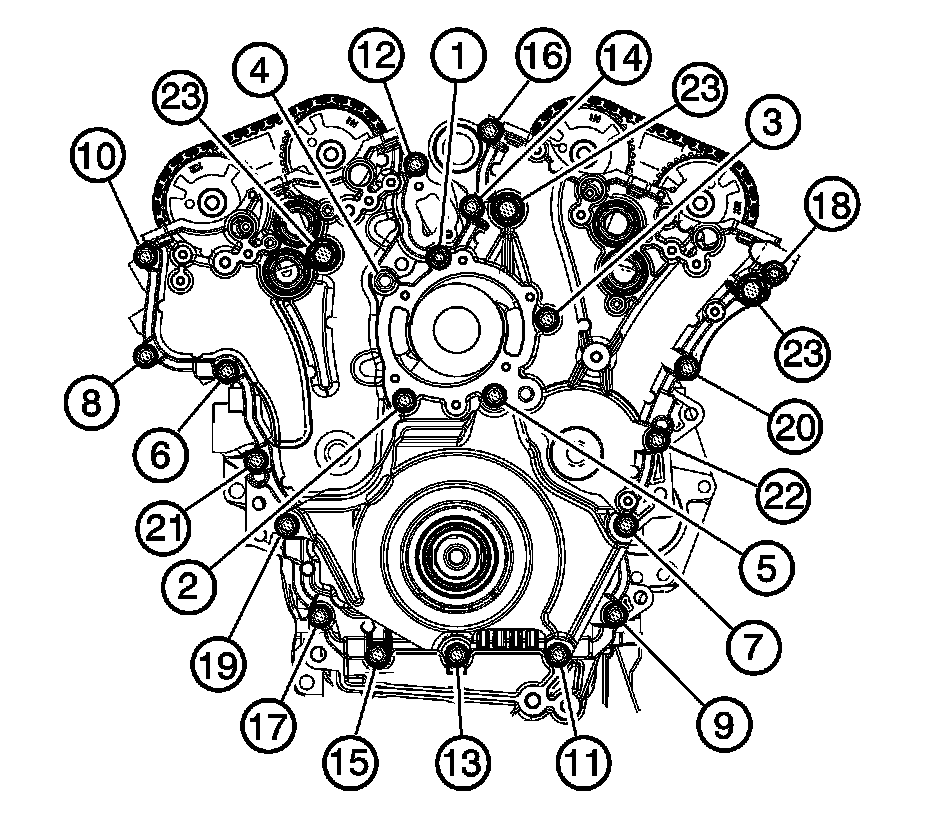

TIMING COVER




Engine Front Cover Bolt - M8
First Pass 20 Nm (14 lb ft)
Final Pass 60 Degrees

Engine Front Cover Bolt - M12
First Pass 65 Nm (48 lb ft)
Final Pass 60 Degrees
