Steering Wheel Heater Control Module




Component Connector End Views

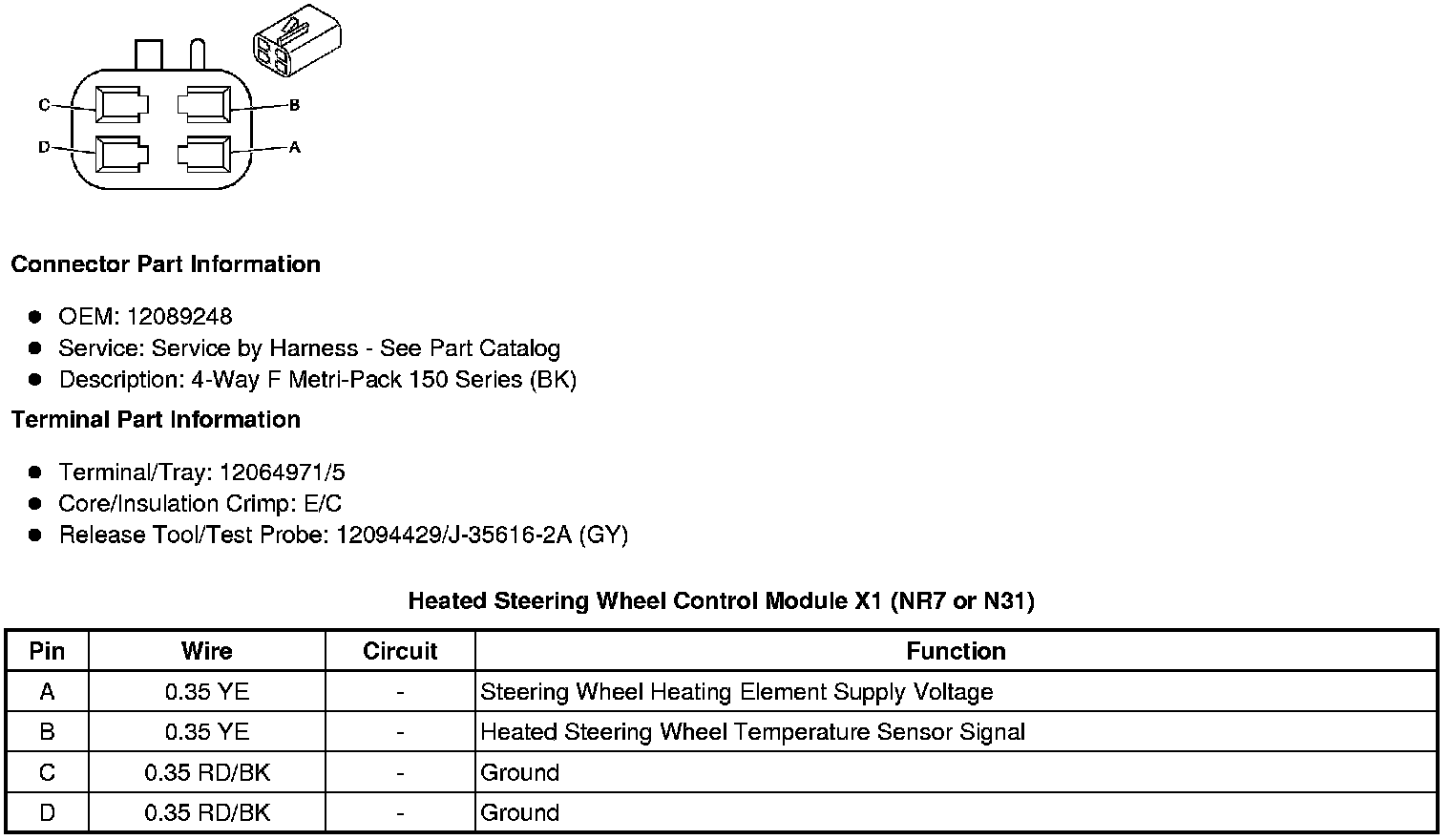

Heated Steering Wheel Control Module X1 (NR7 or N31)

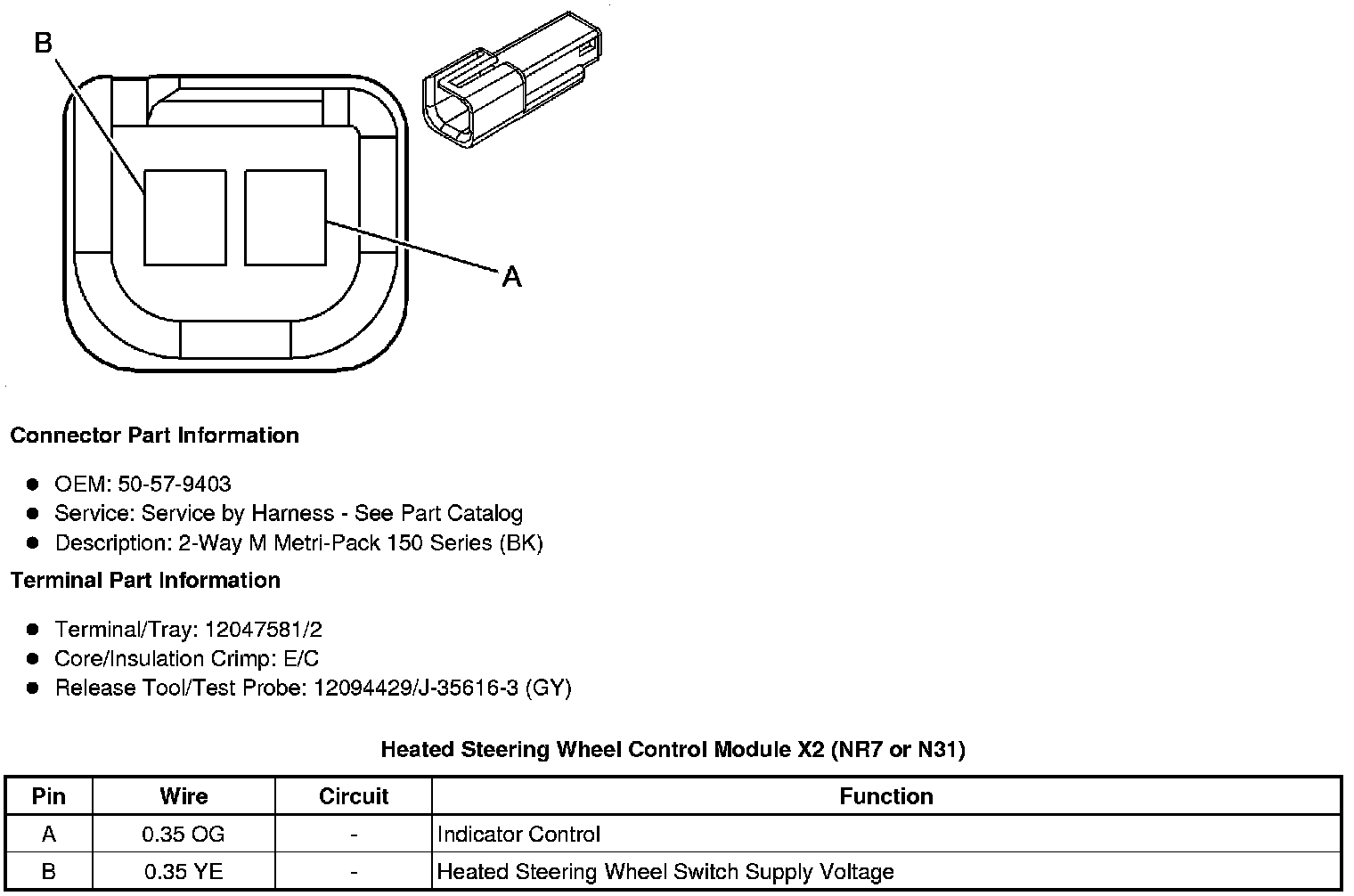

Heated Steering Wheel Control Module X2 (NR7 or N31)

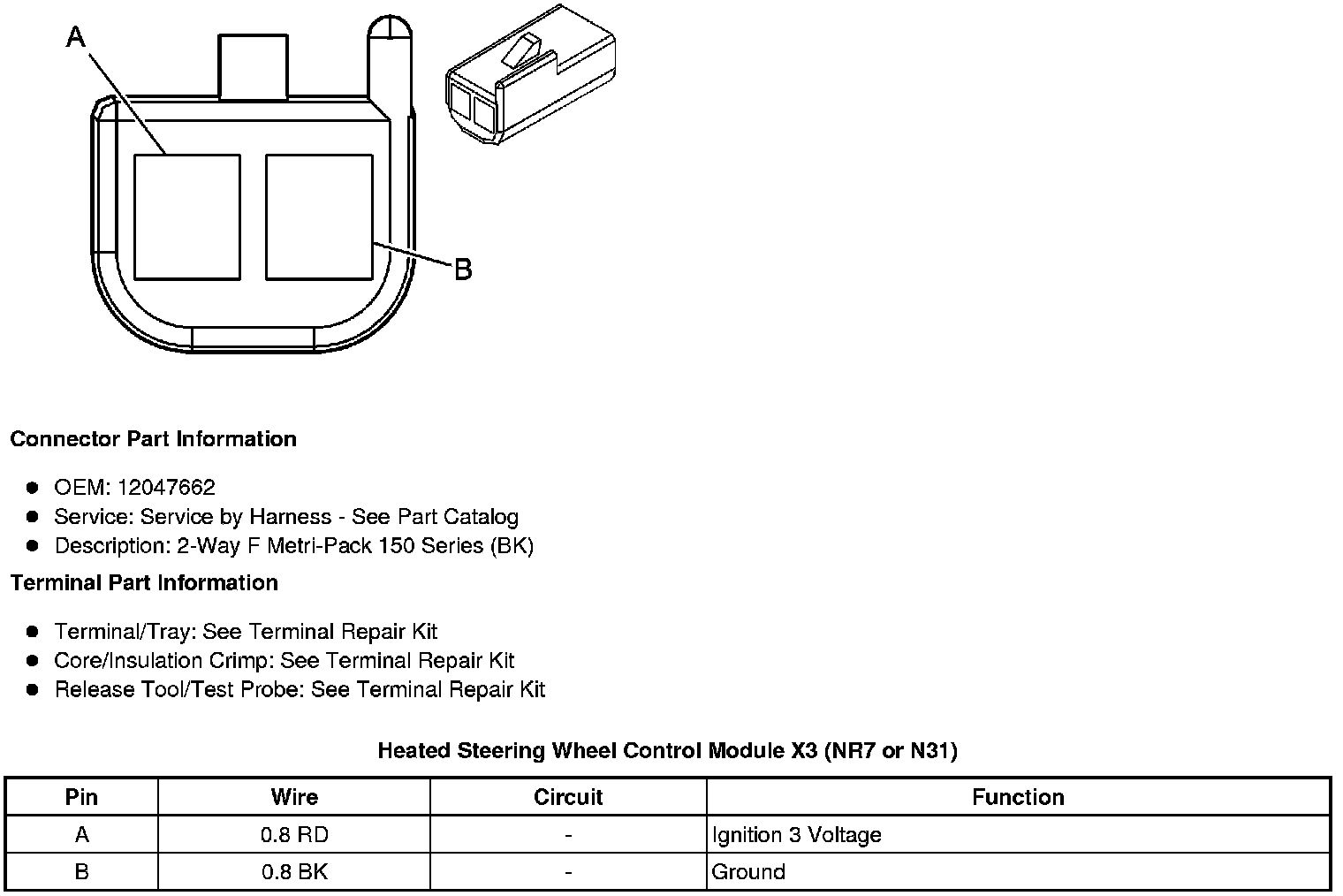

Heated Steering Wheel Control Module X3 (NR7 or N31)
