Body Control Systems




Body Control System Schematics

IPM Power, Grounds and DLC

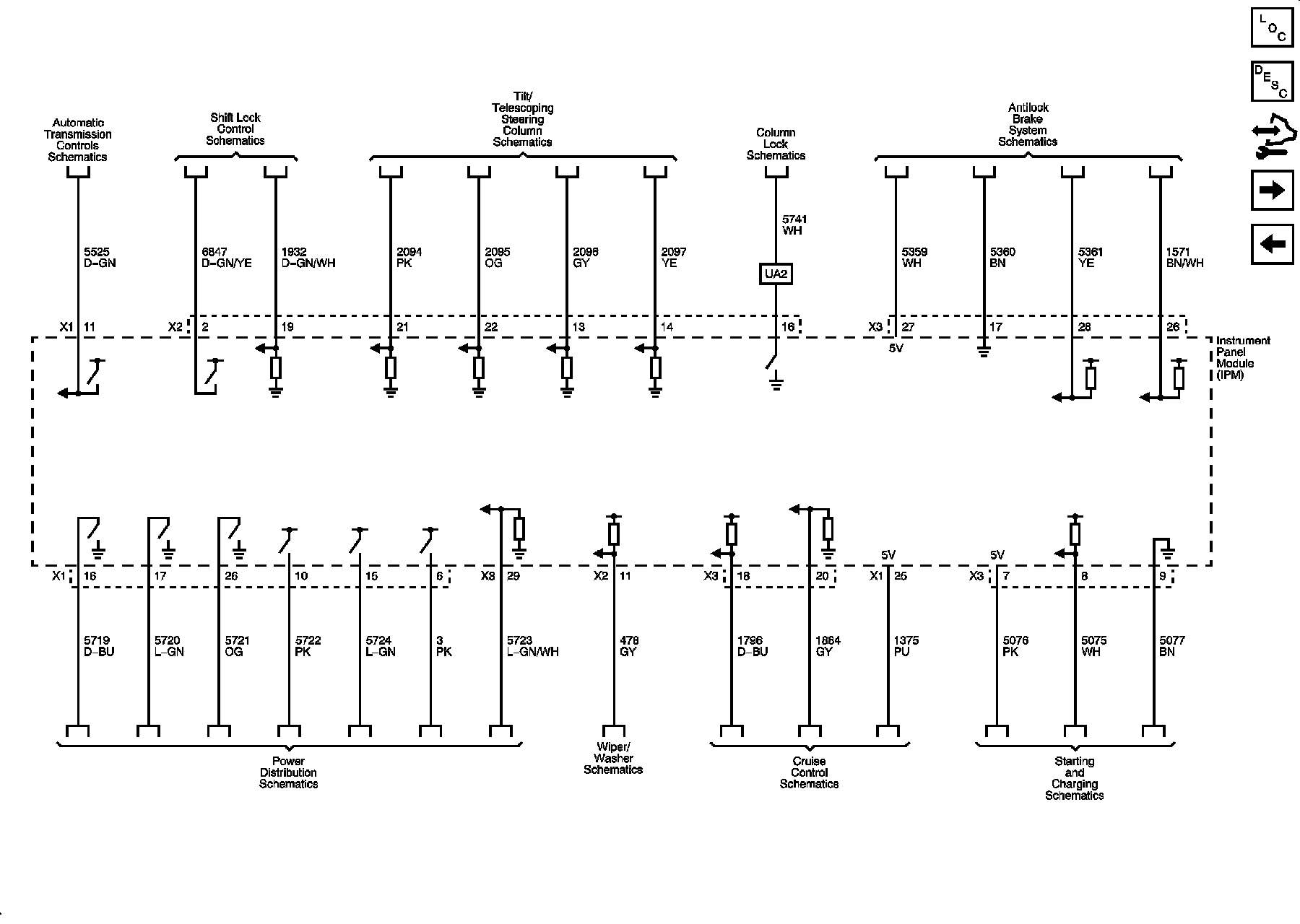

IPM Inputs and Outputs 1 of 3

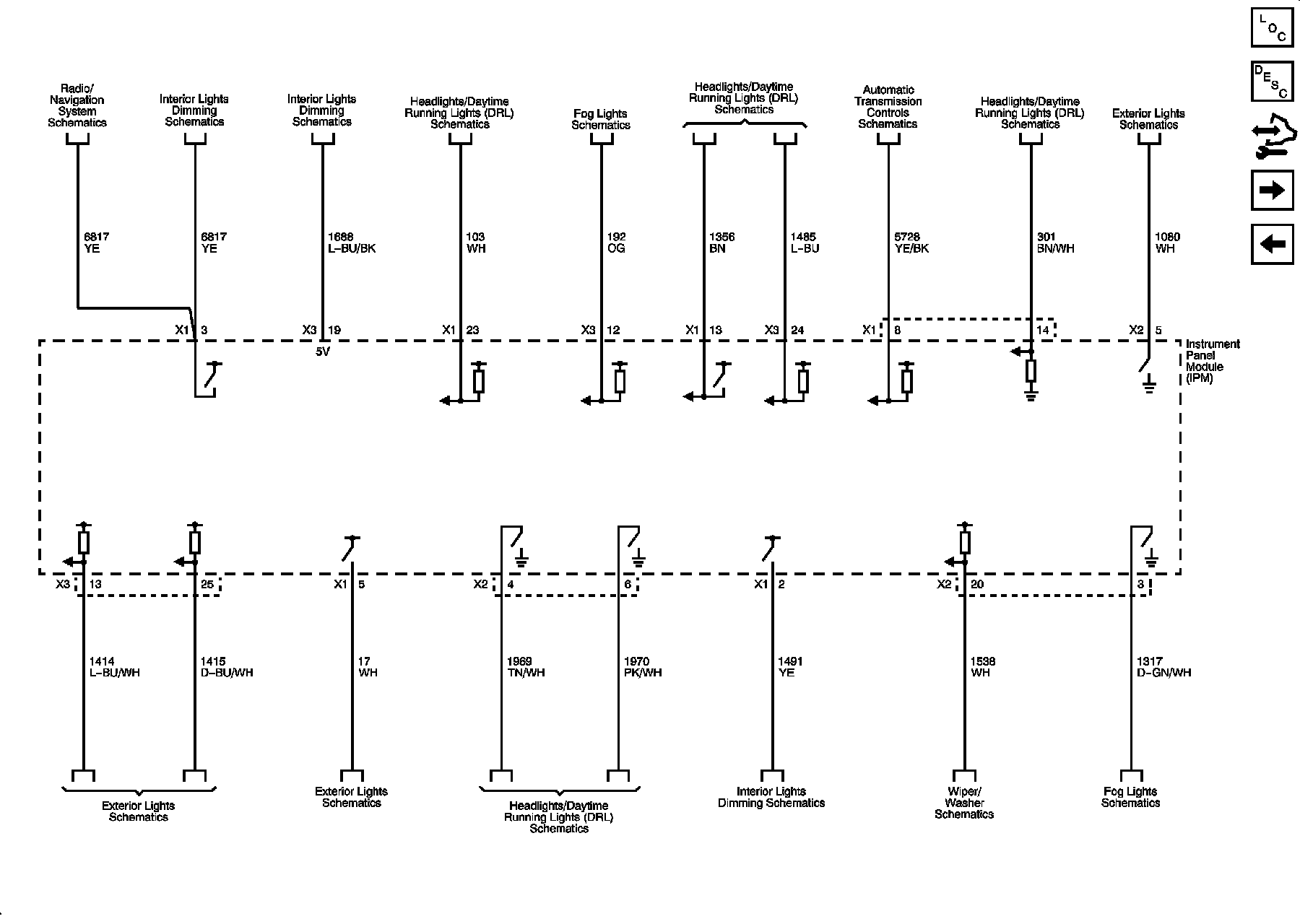

IPM Inputs and Outputs 2 of 3





IPM Inputs and Outputs 3 of 3





RIM Power, Grounds and DLC

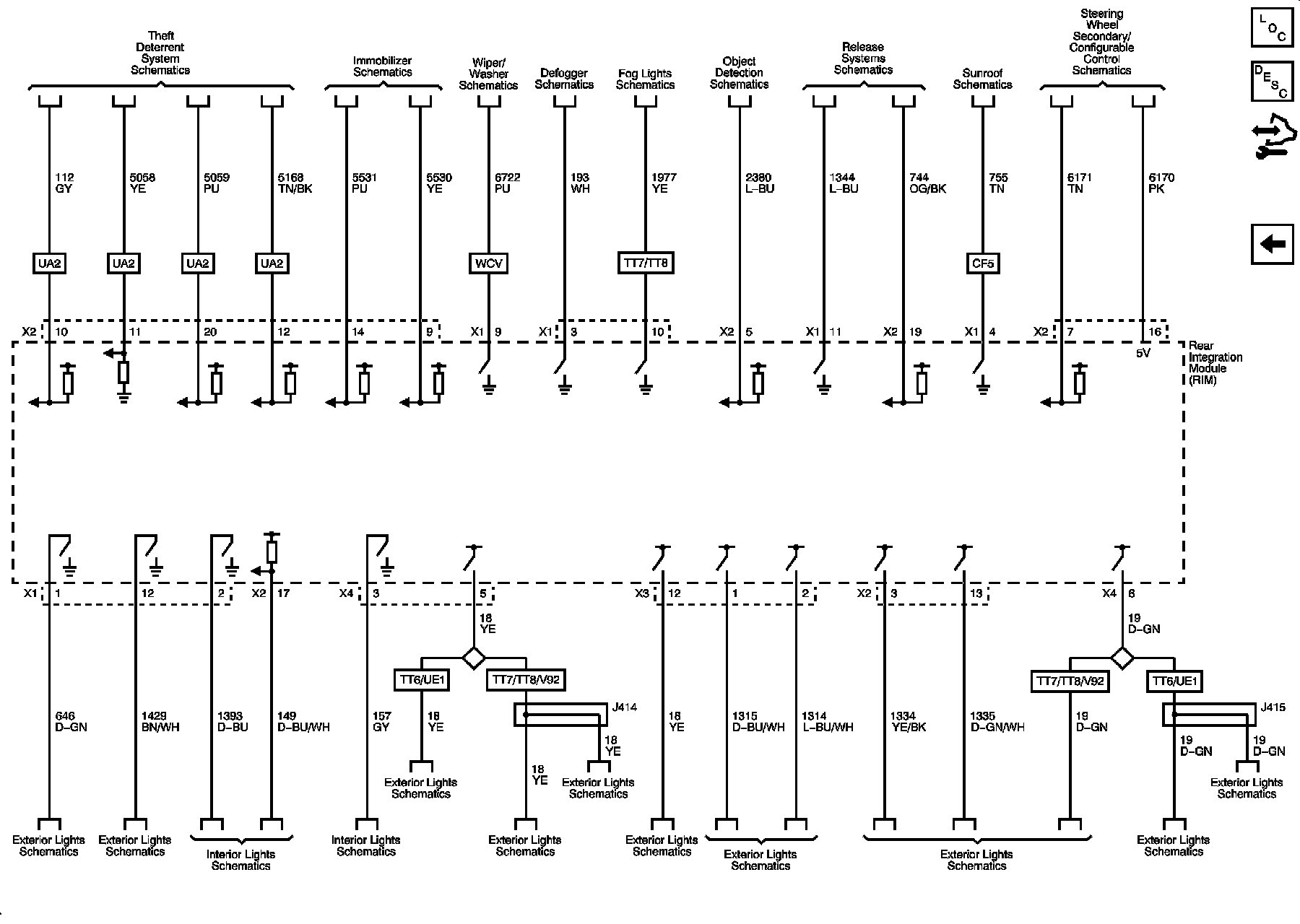

RIM Inputs and Outputs
