System Specifications

TIMING CHAIN/BELT TENSIONER

A/C Drive Belt Tensioner Bolt 25 Nm (18 lb ft)

Drive Belt
Tensioner Bolt 50 Nm (37 lb ft)

Primary Camshaft Drive Chain
Tensioner Bolt 25 Nm (18 lb ft)

Secondary Camshaft Drive Chain
Tensioner Bolt 25 Nm (18 lb ft)

CRANKSHAFT PULLEY

Crankshaft Balancer Bolt
First Pass 50 Nm (37 lb ft)
Final Pass 150 degrees

TIMING COVER

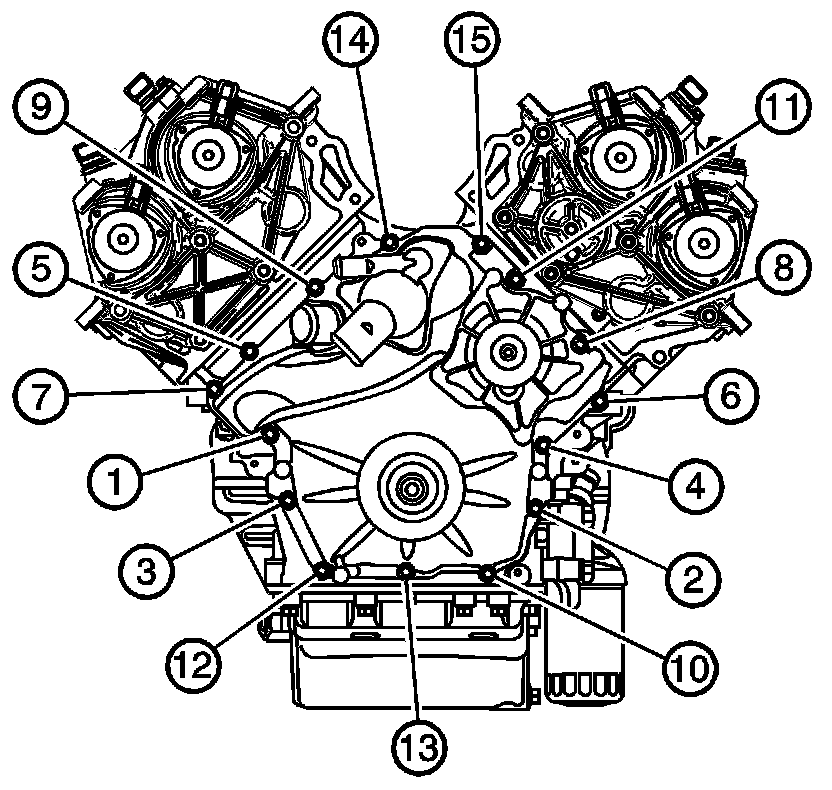

Engine Front Cover Bolt 15 Nm (11 lb ft)
