Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

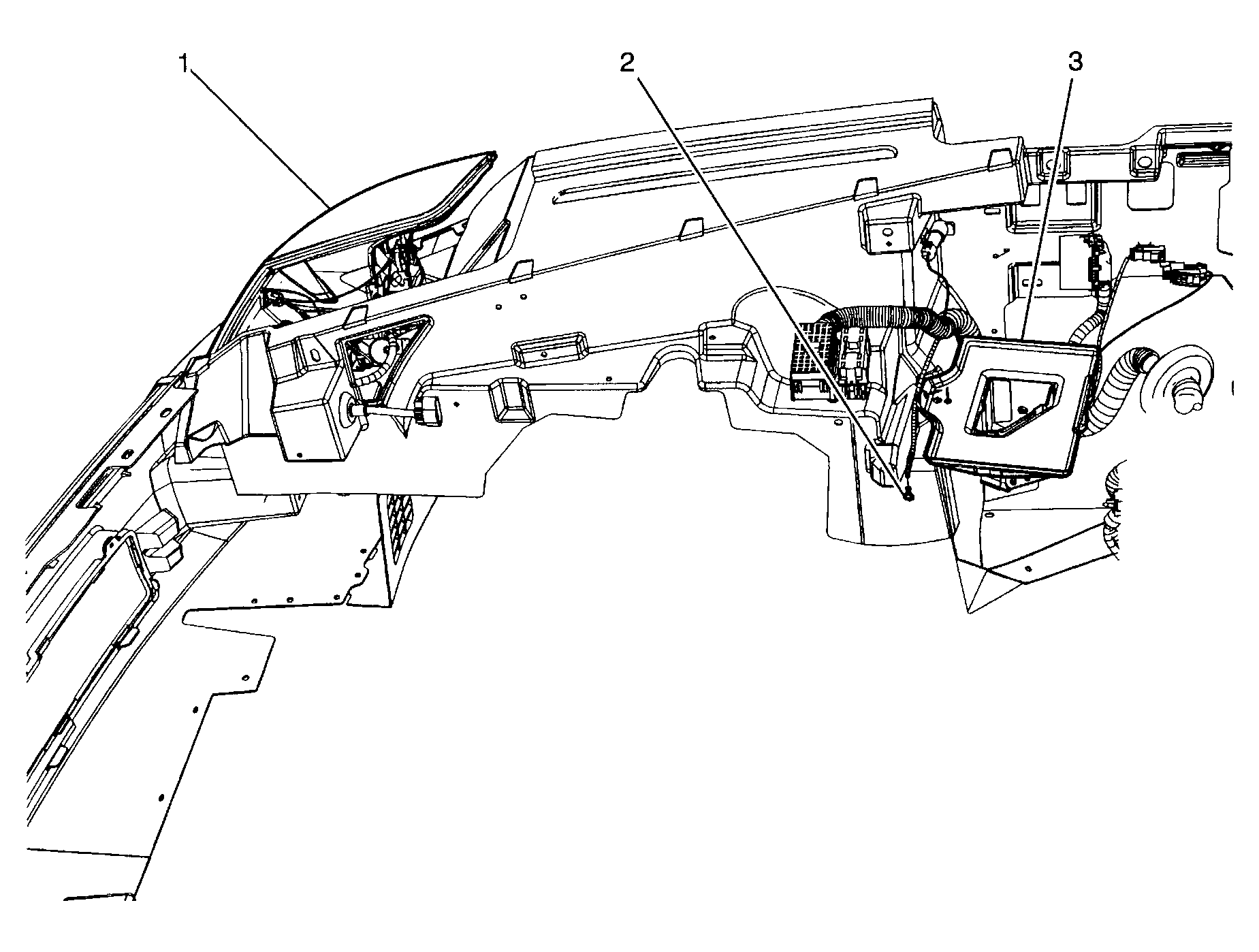

Fig 1: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 3: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 5: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

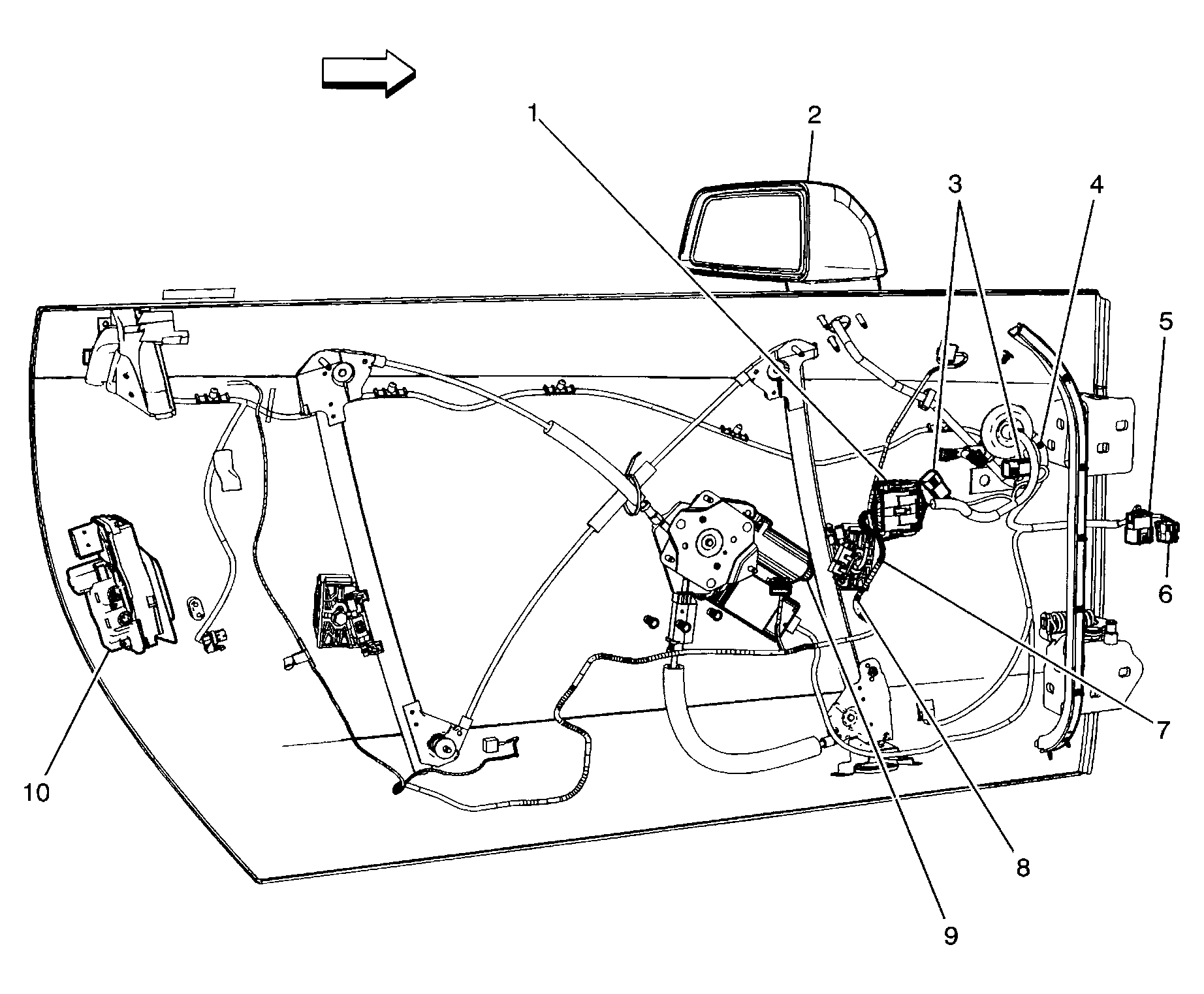

Fig 6: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 7: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 8: Front Of Vehicle Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 9: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 11: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Exhaust (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Fuel Tanks
Courtesy of GENERAL MOTORS CORP.
Fig 14: Lower Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 15: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 16: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Upper Center Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Side Of Blower Motor
Courtesy of GENERAL MOTORS CORP.
Fig 21: Center Of HVAC Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 23: Upper Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 24: Upper Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: Lower Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 28: Tire Pressure Monitor Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 29: Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 30: Left Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 32: Wheel Hub Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 33: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

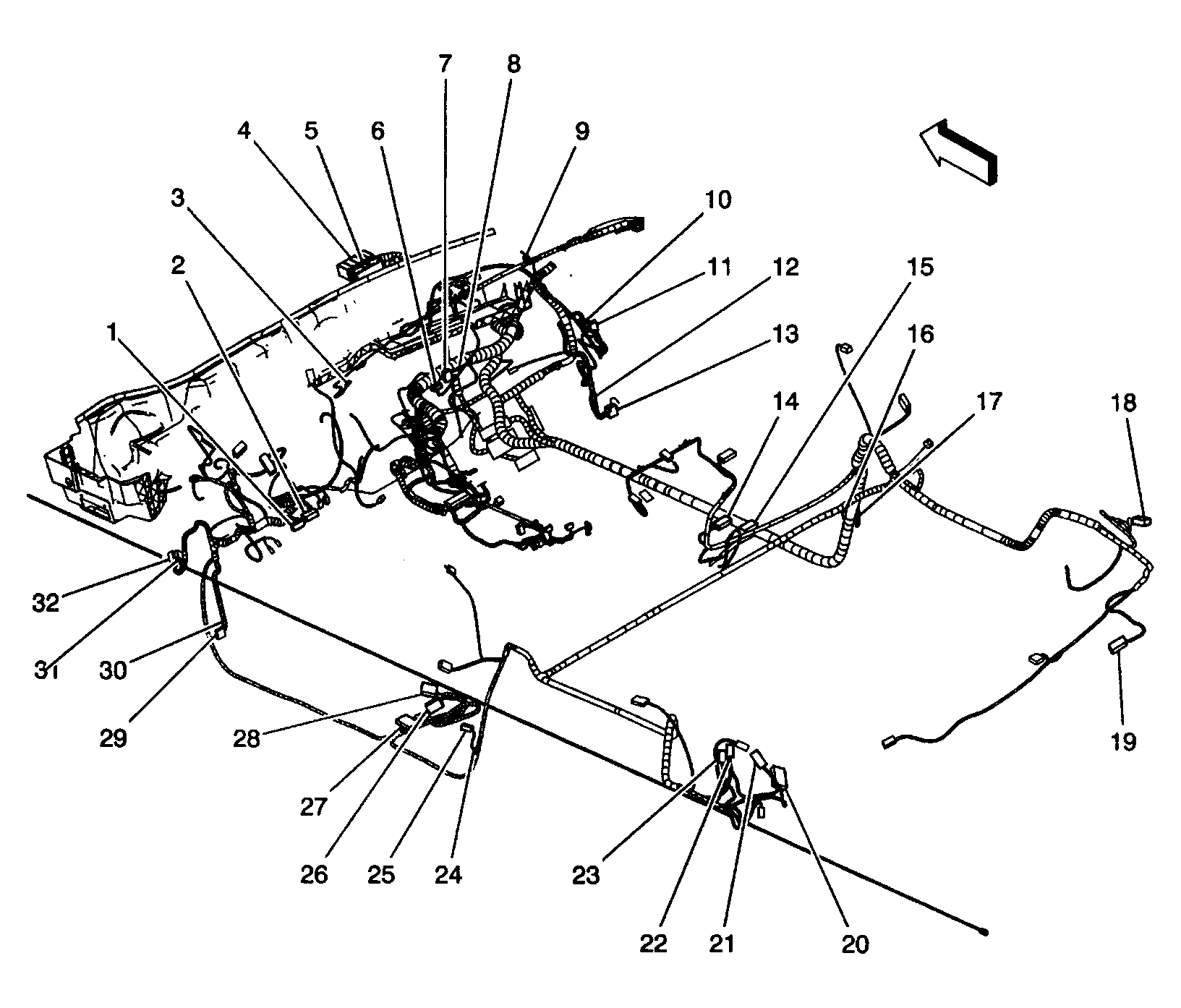

Fig 35: Harness Overview
Courtesy of GENERAL MOTORS CORP.
Fig 36: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 37: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 38: Bottom Of Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 39: Bottom Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 40: Upper Dash
Courtesy of GENERAL MOTORS CORP.
Fig 41: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 43: Lower Center Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 44: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Rear Of Engine Compartment & Under Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 46: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 47: Rear Of Left Front Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 48: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.

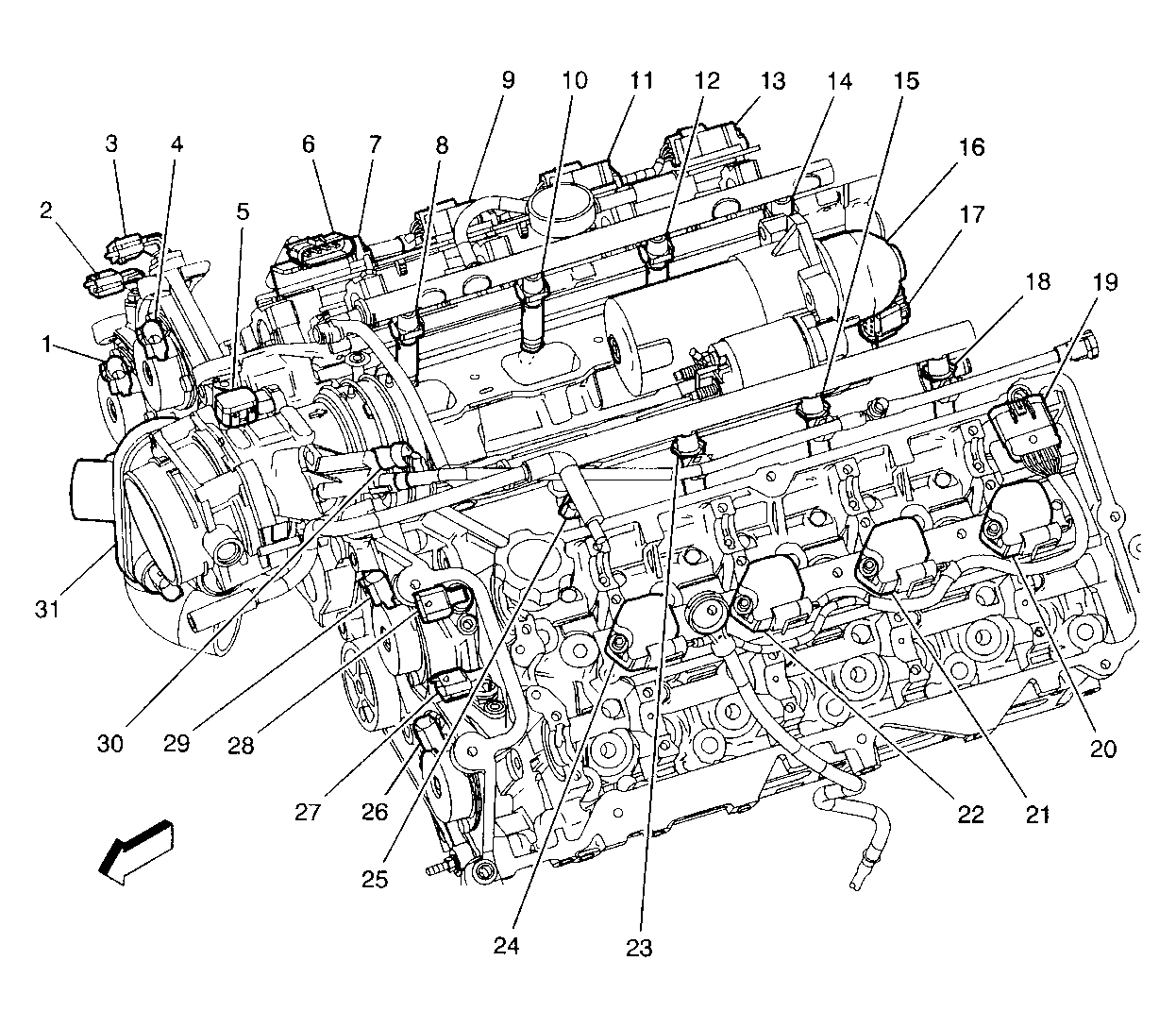

Fig 49: Left Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.

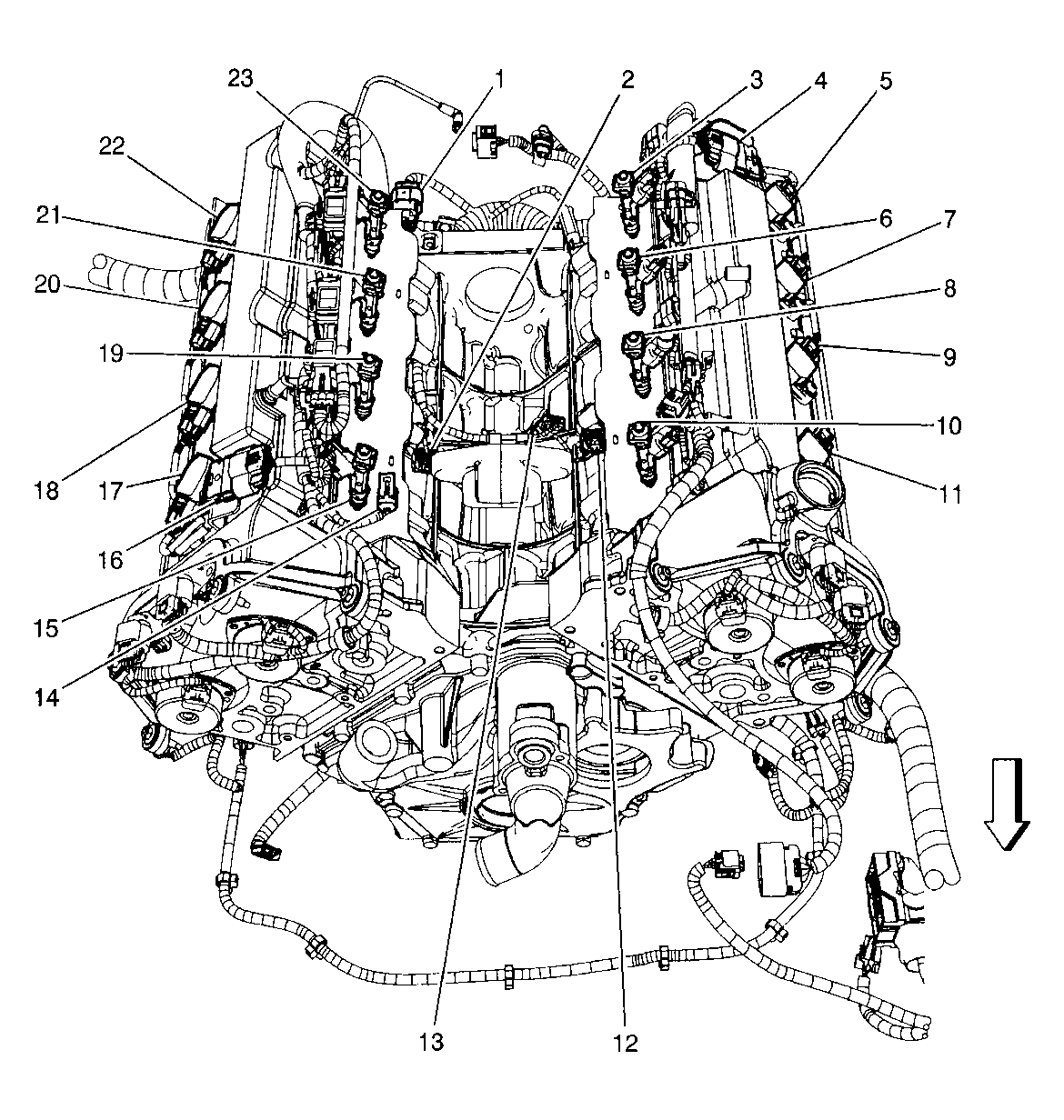

Fig 51: Engine Assembly (4.4L)
Courtesy of GENERAL MOTORS CORP.

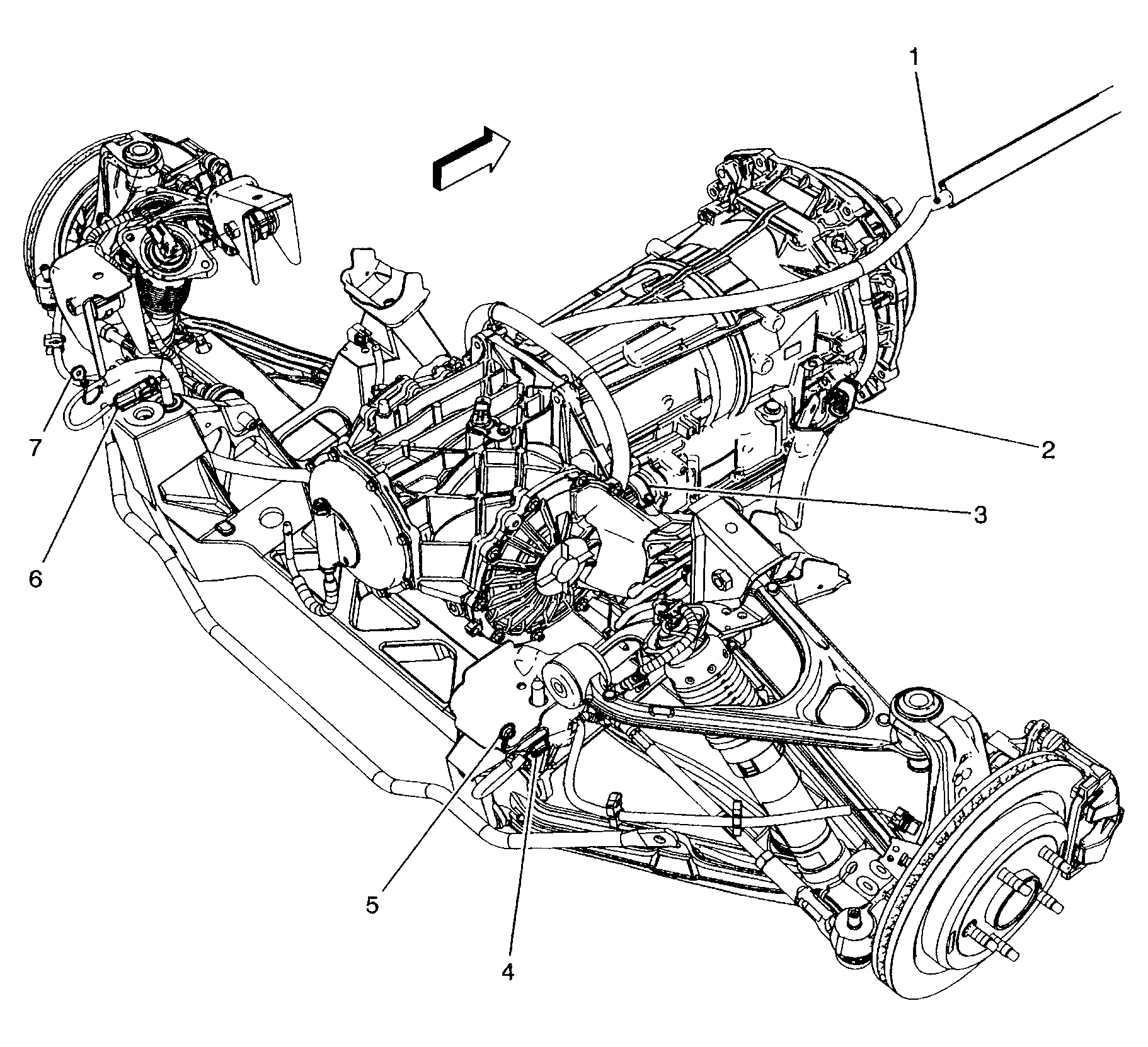

Fig 52: Transaxle Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 53: Center Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 54: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 58: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 59: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.
Fig 60: Rear Of Engine Assembly (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 63: Center Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Exhaust System Component Views (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Left Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Top Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Top Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.

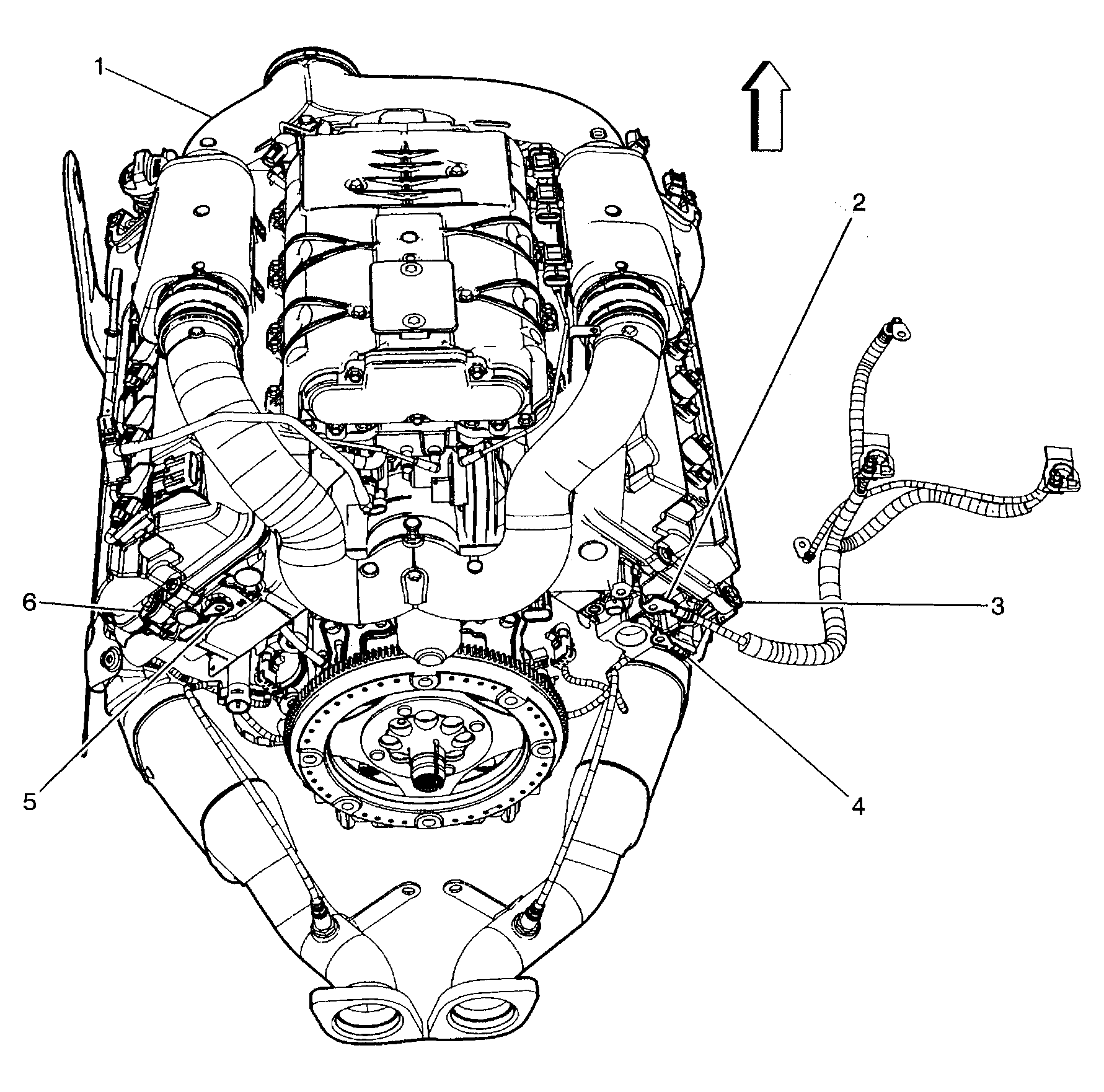

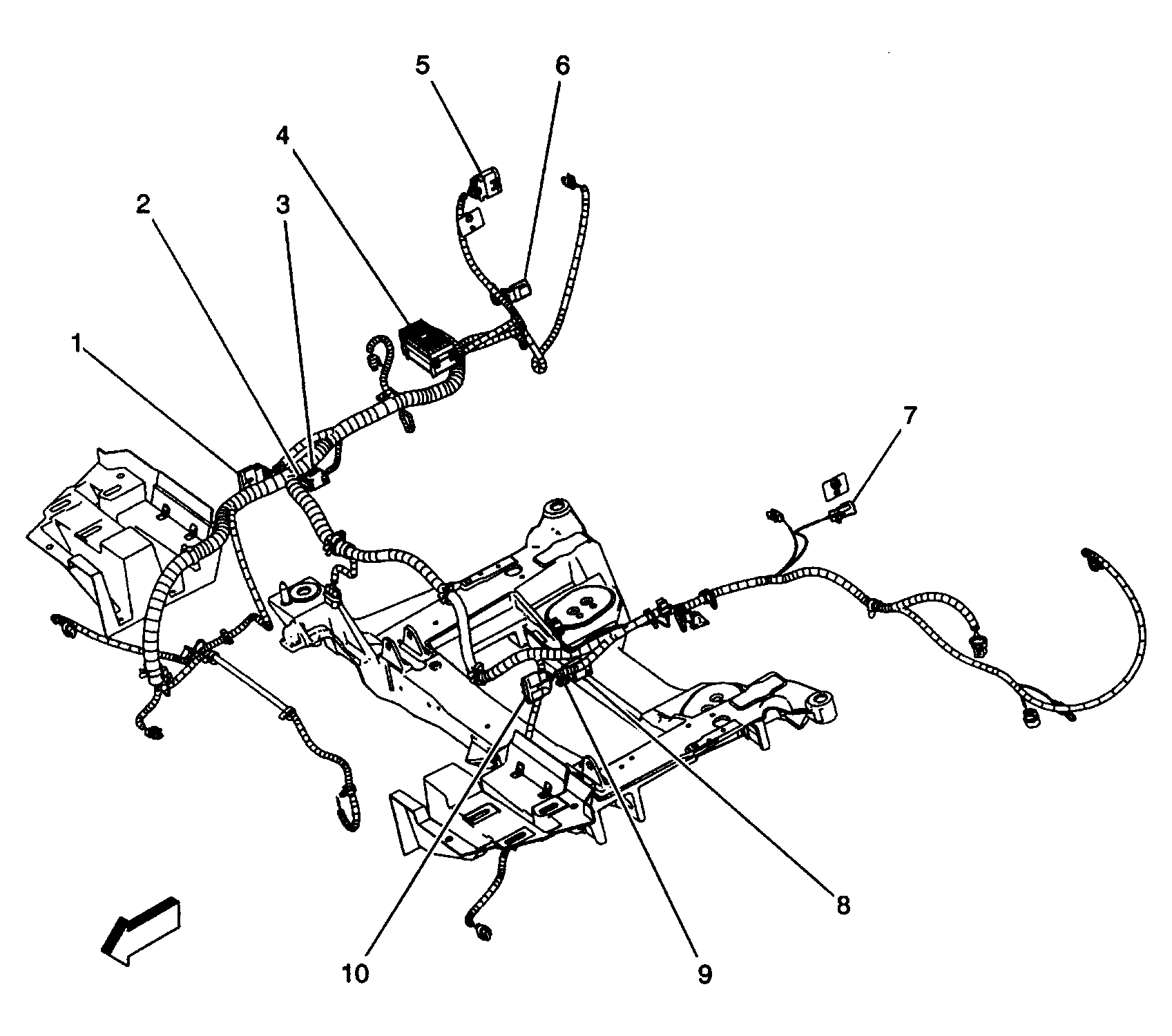

Fig 69: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

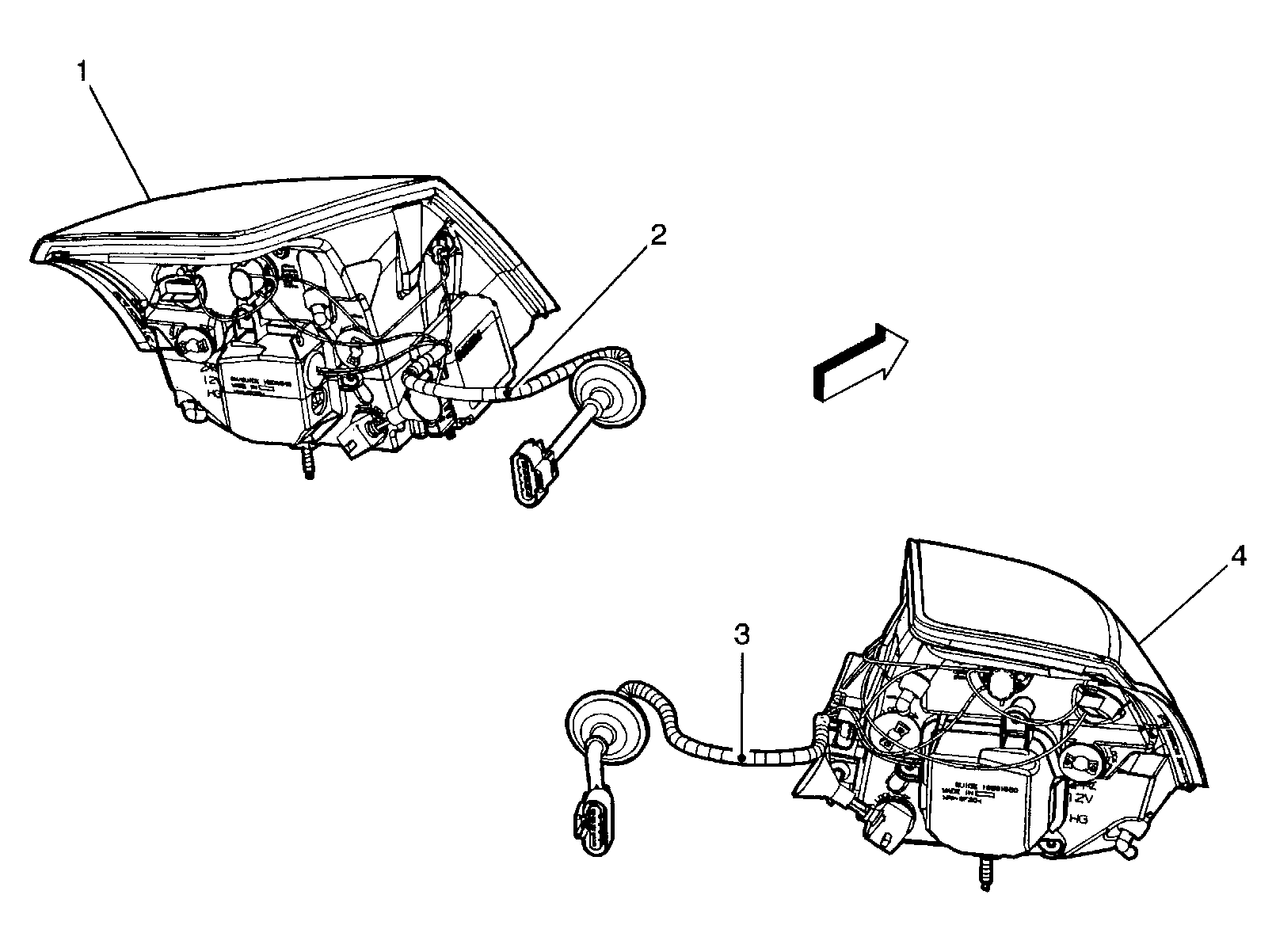

Fig 70: Behind Headlight Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 72: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

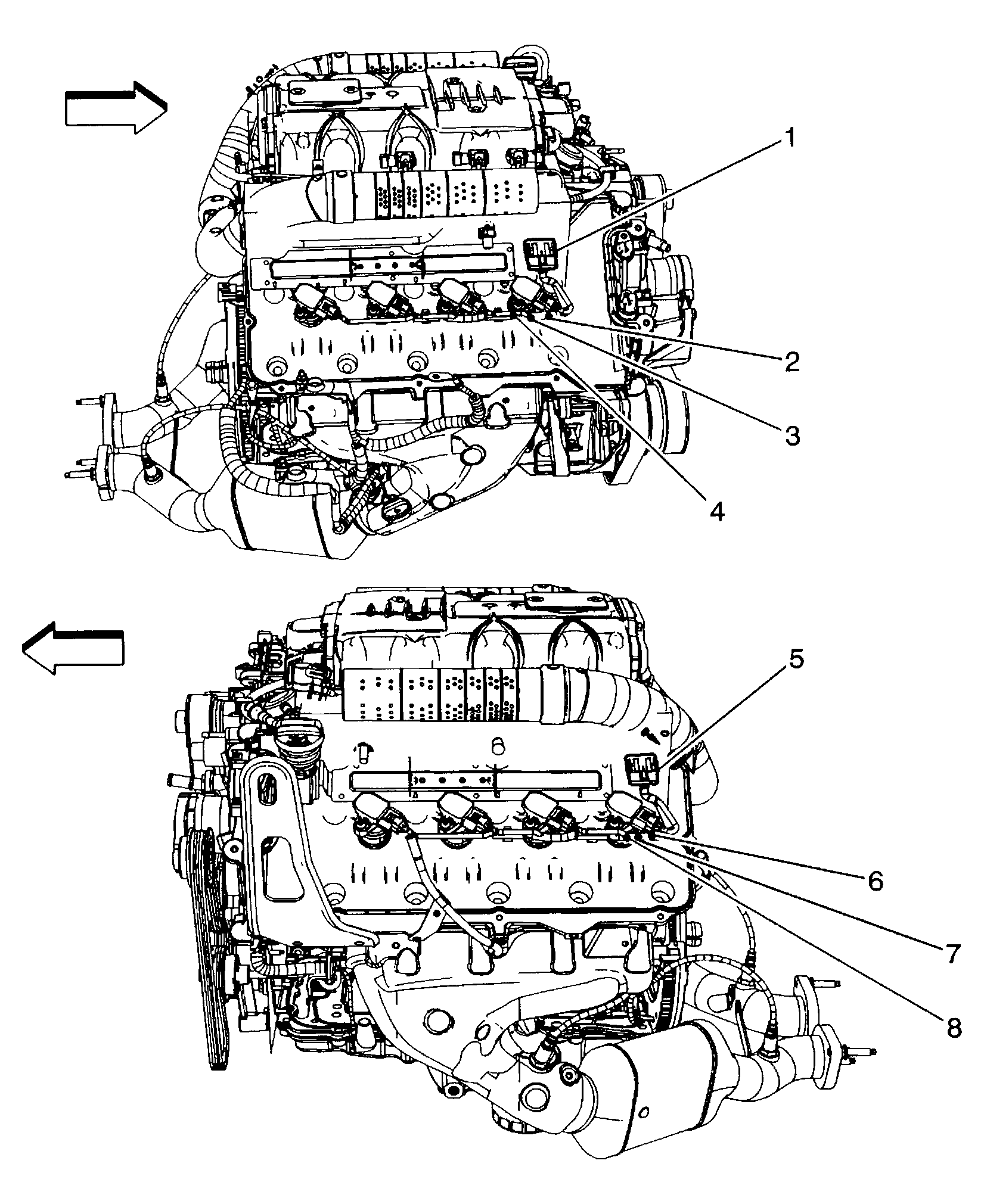

Fig 73: Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.

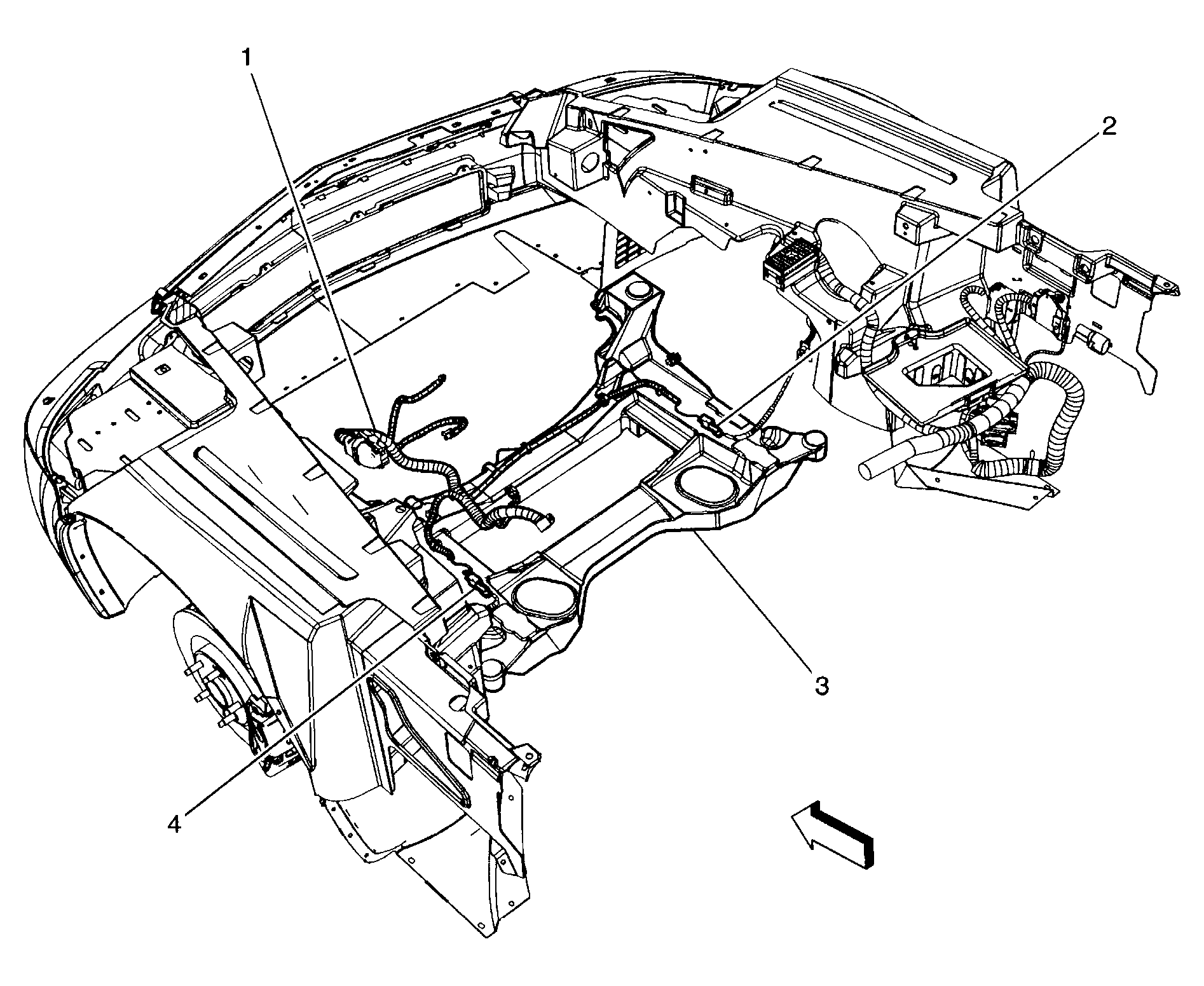

Fig 74: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

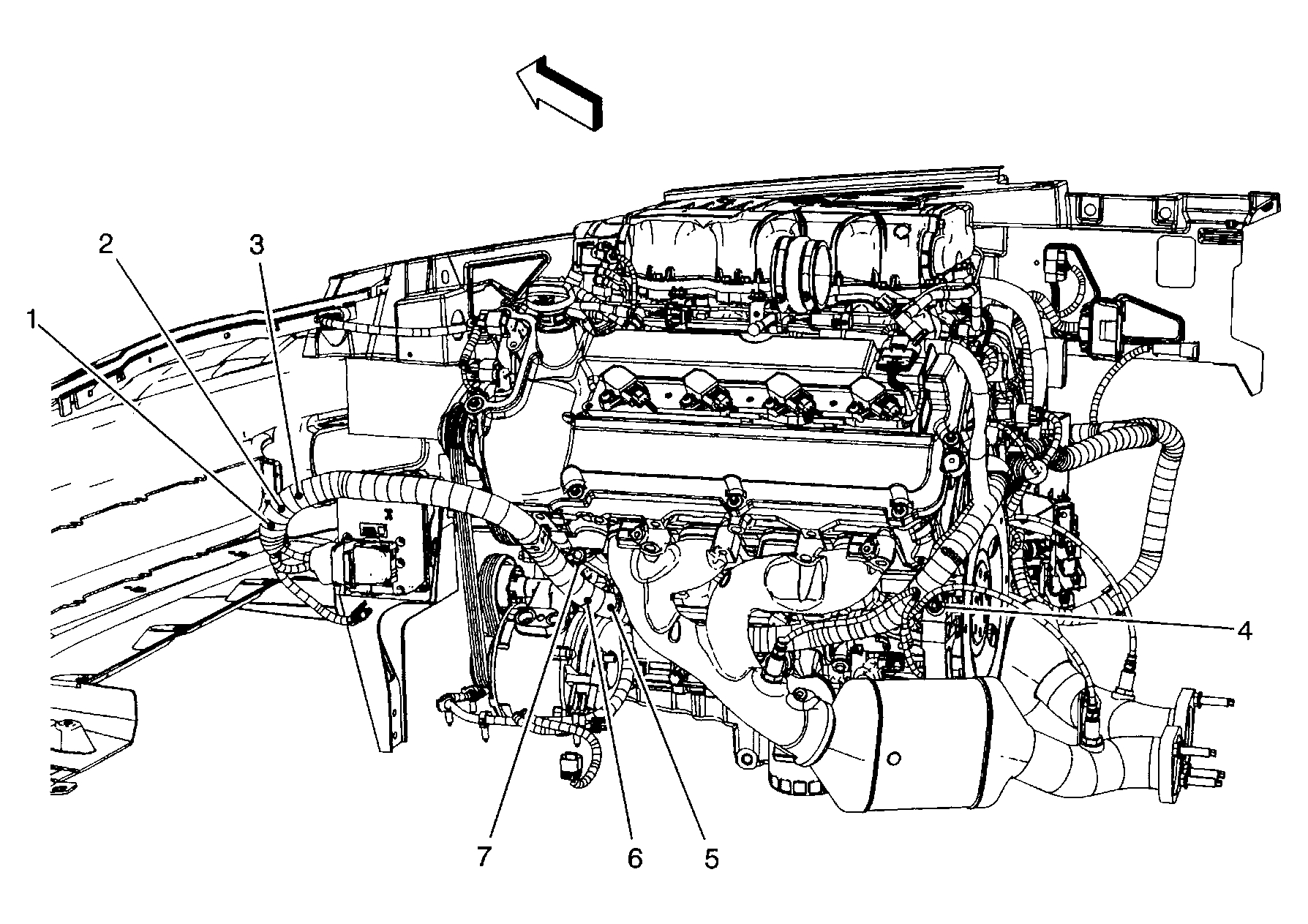

Fig 75: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

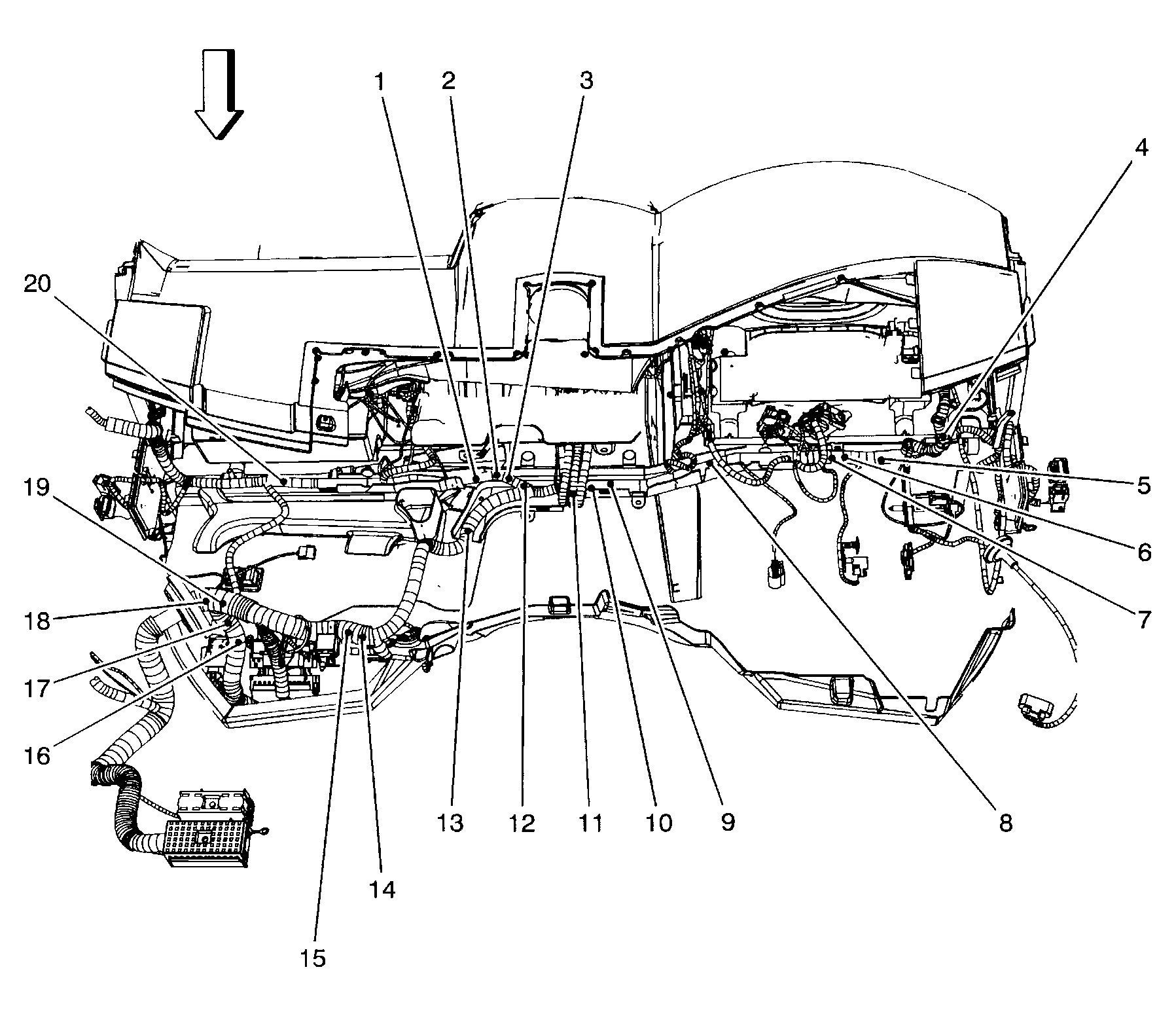

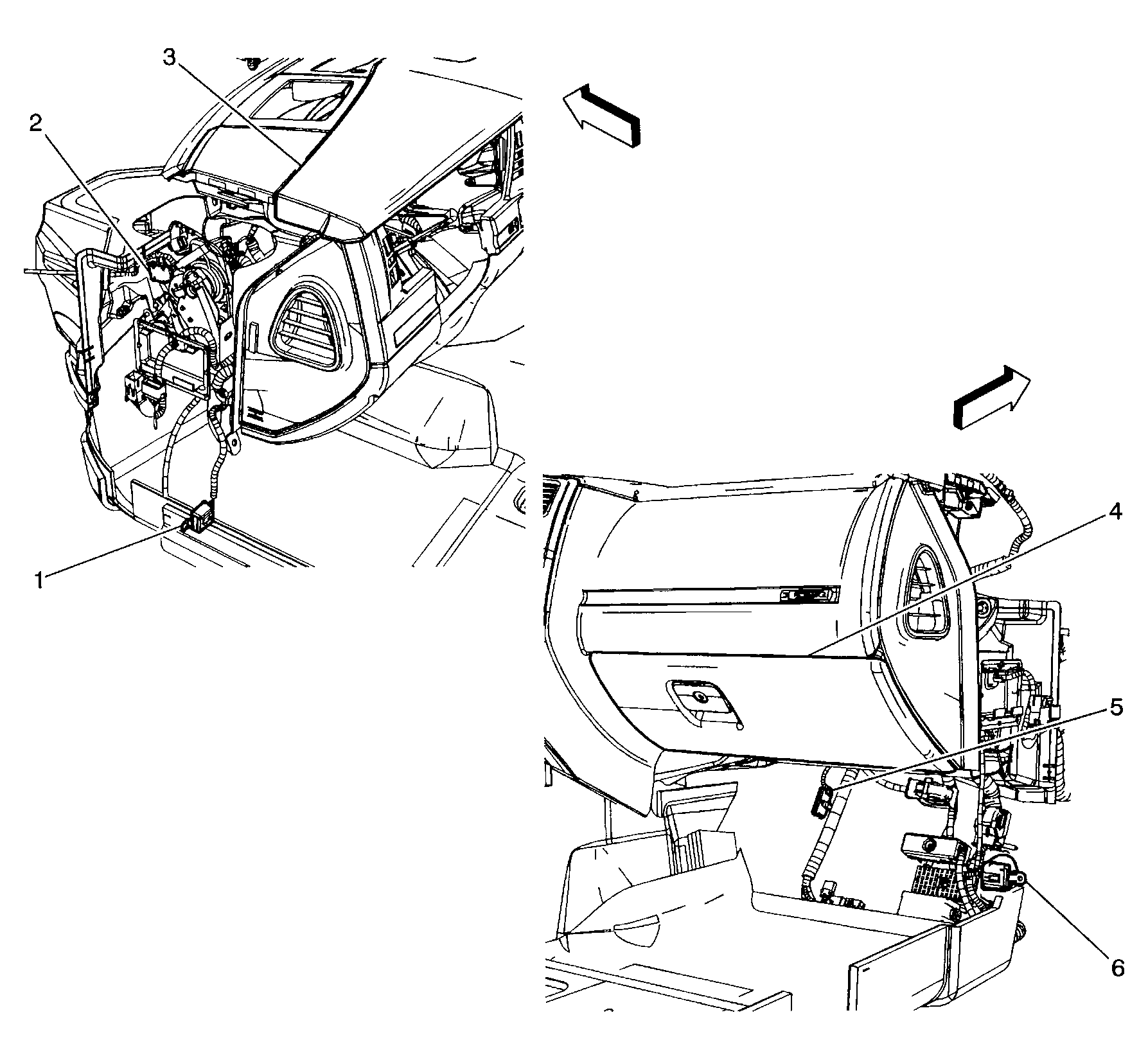

Fig 76: Dash
Courtesy of GENERAL MOTORS CORP.

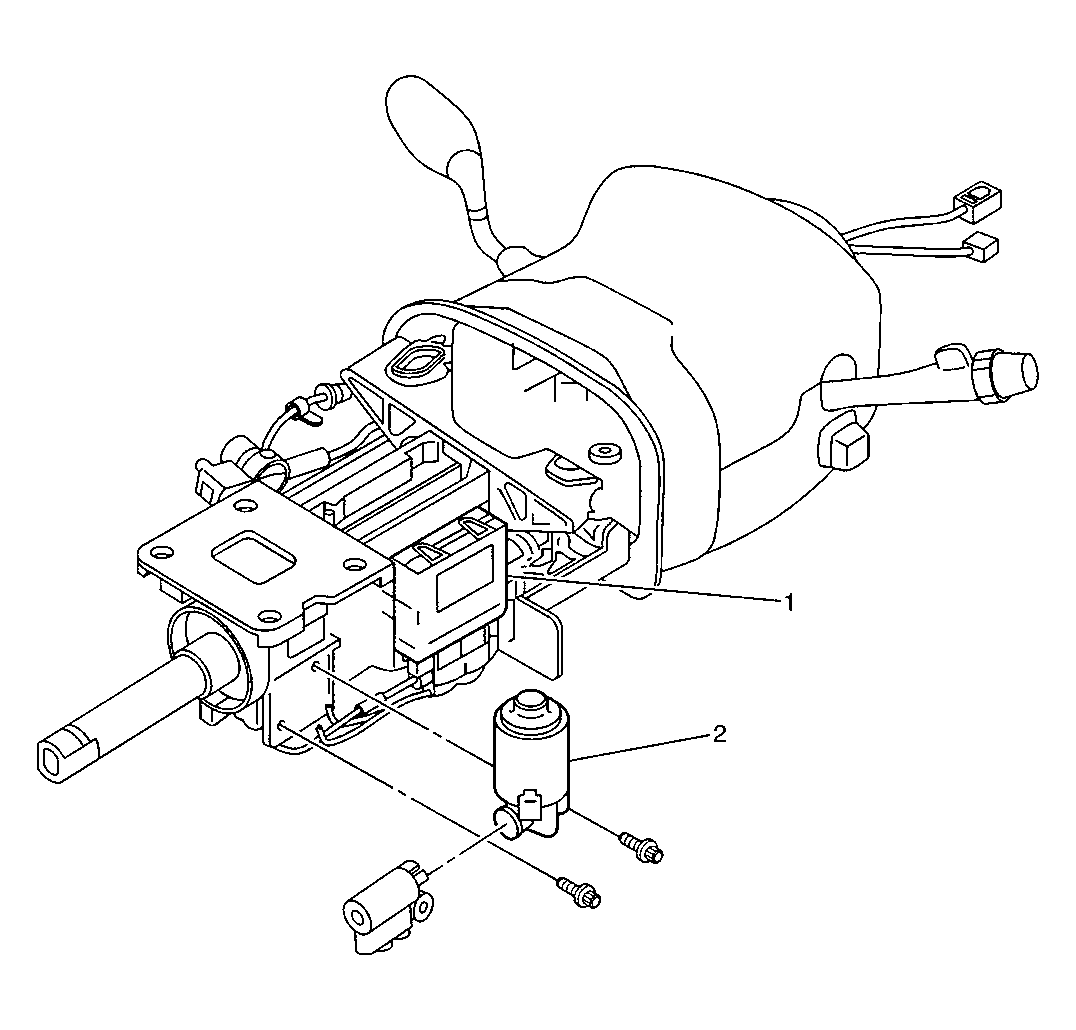

Fig 77: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 78: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 79: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

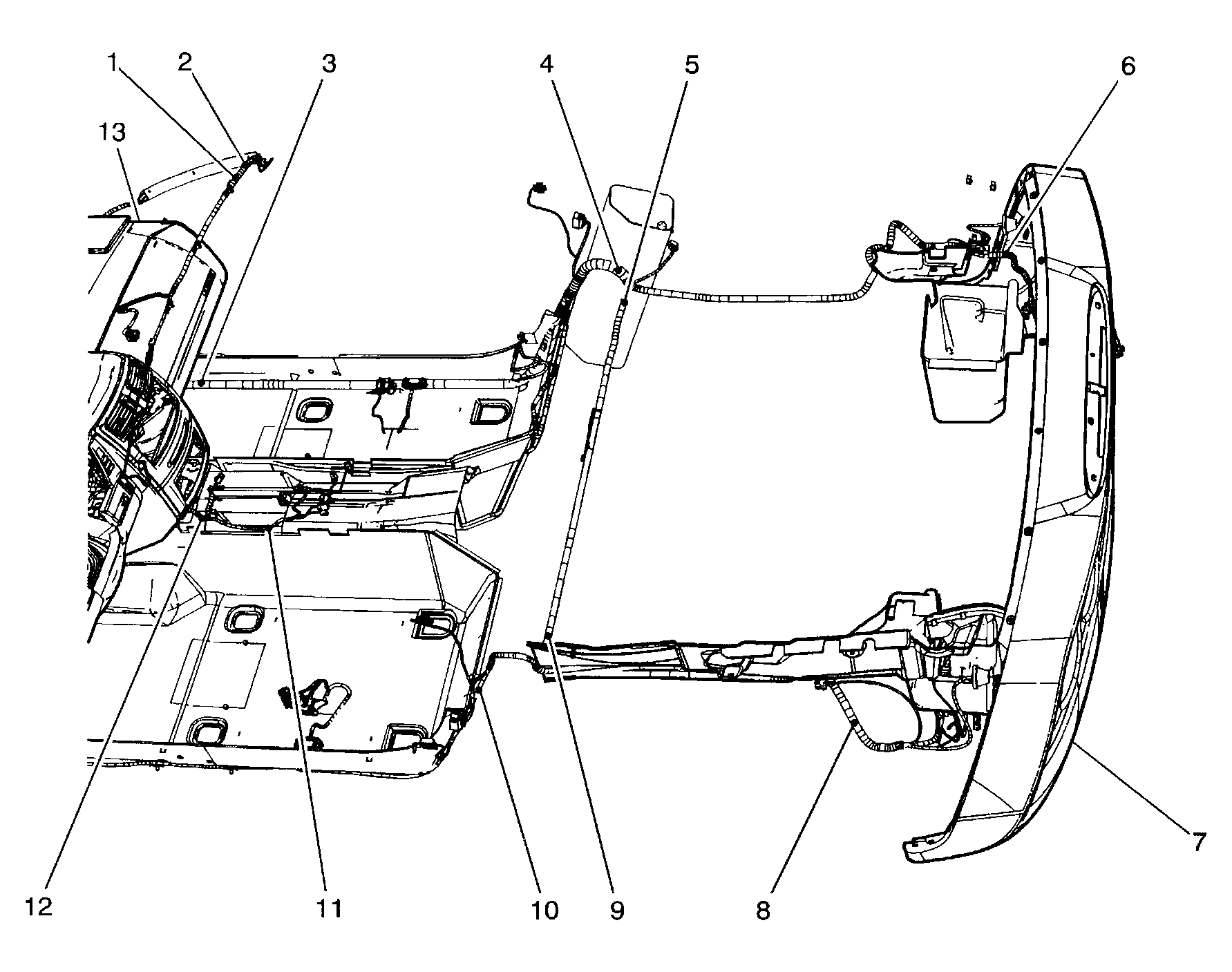

Fig 80: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

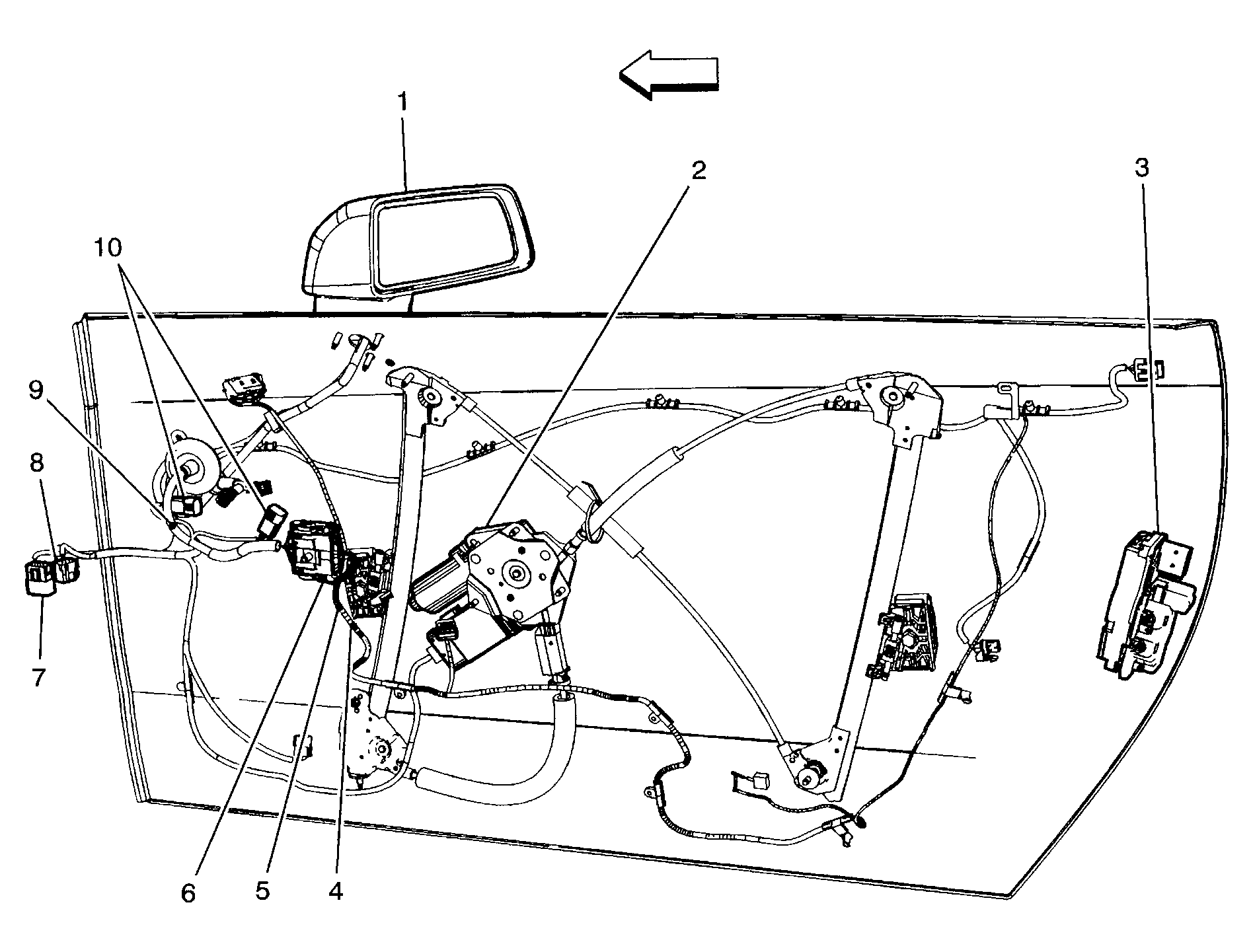

Fig 81: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 82: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 83: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

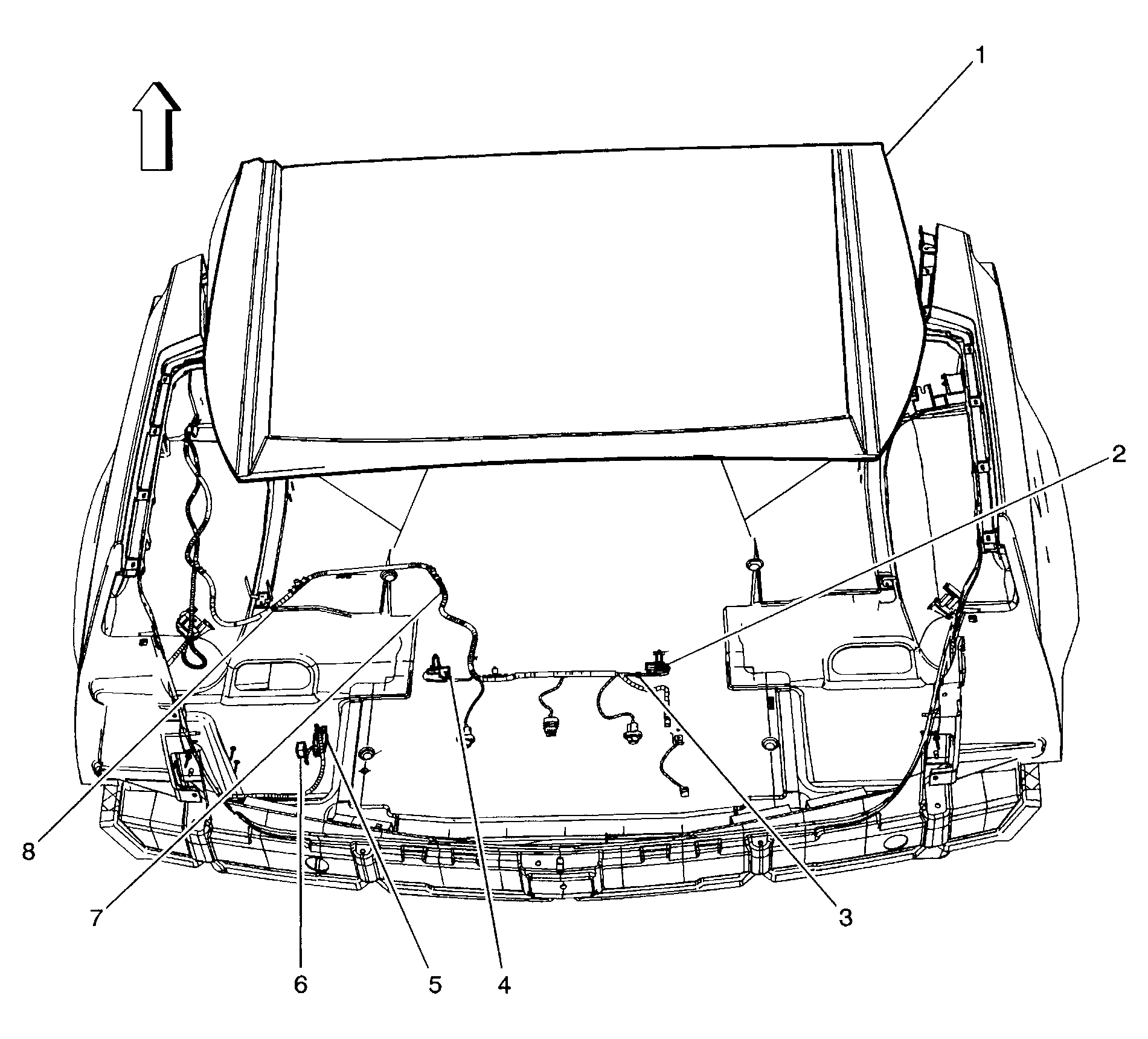

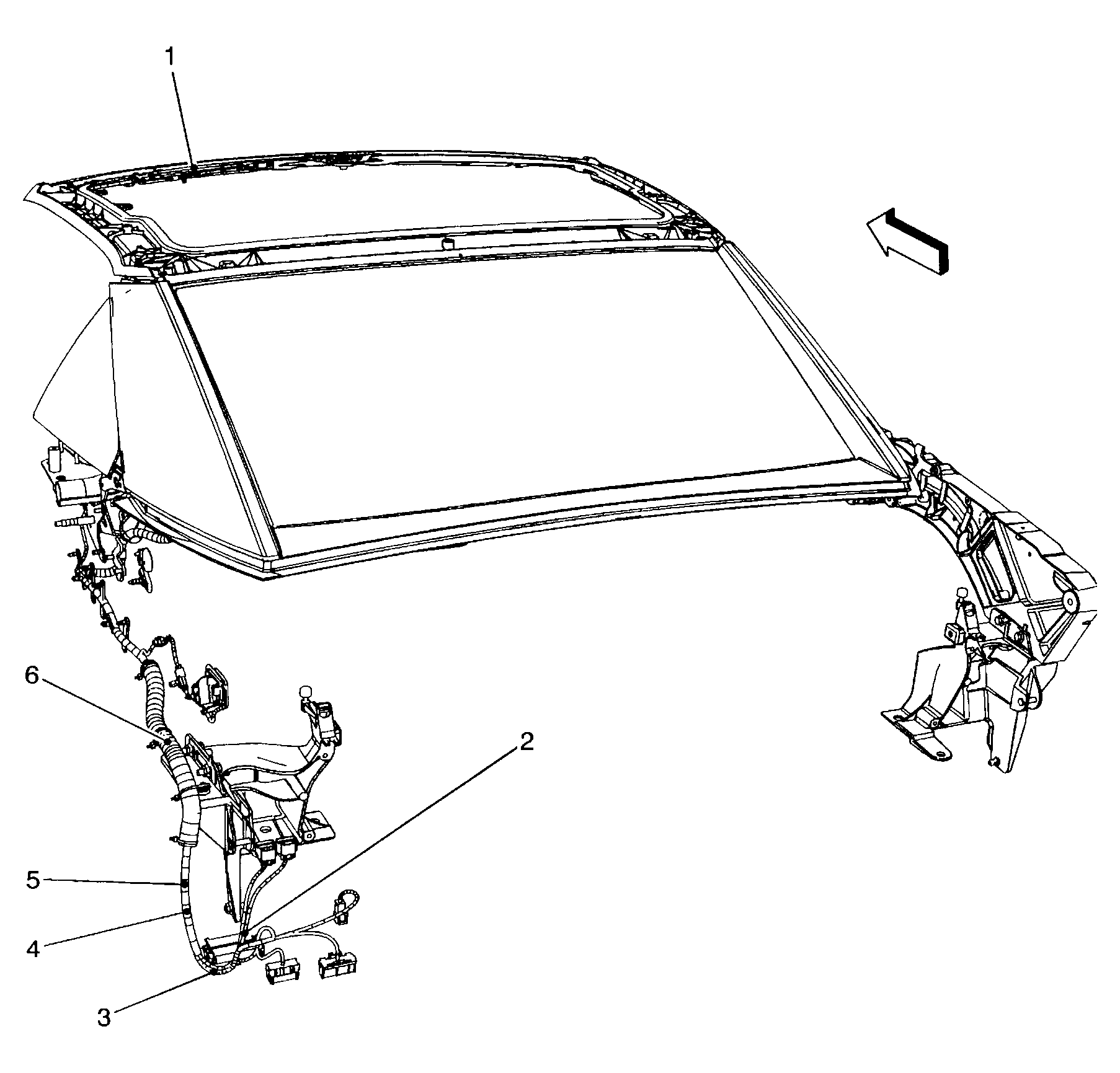

Fig 84: Folding Top
Courtesy of GENERAL MOTORS CORP.

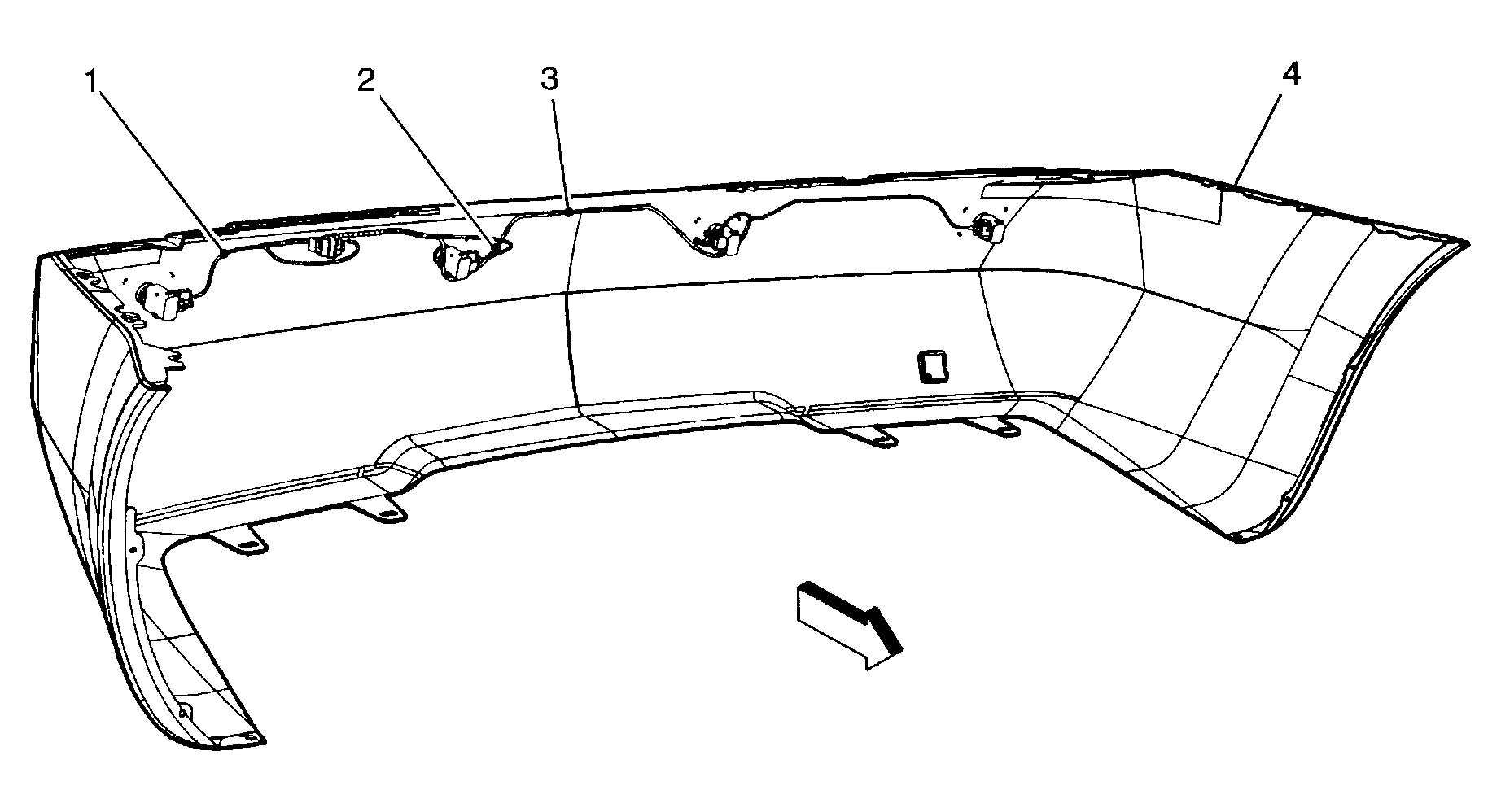

Fig 85: Rear Fascia
Courtesy of GENERAL MOTORS CORP.
