Installation Procedure

    Fig 1: Identifying Air Cleaner Filter Elements
    GM1685812Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner filter elements (1) and housing covers to the air cleaner housing assembly.

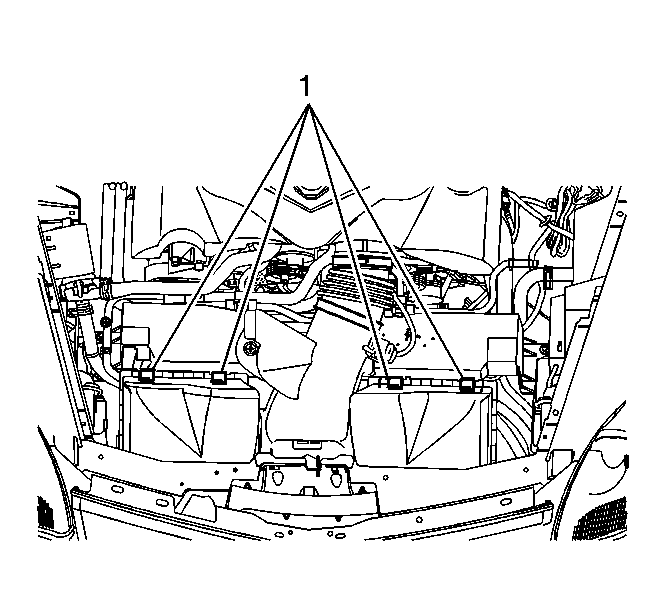

    2. Fig 2: Identifying Air Cleaner Housing Latches
    GM1685811Courtesy of GENERAL MOTORS CORP.
  2. Secure the air cleaner housing cover latches (1).
  3. If previously removed, install the air cleaner housing assembly splash shields.
