Suspension Control Module

Component Connector End Views

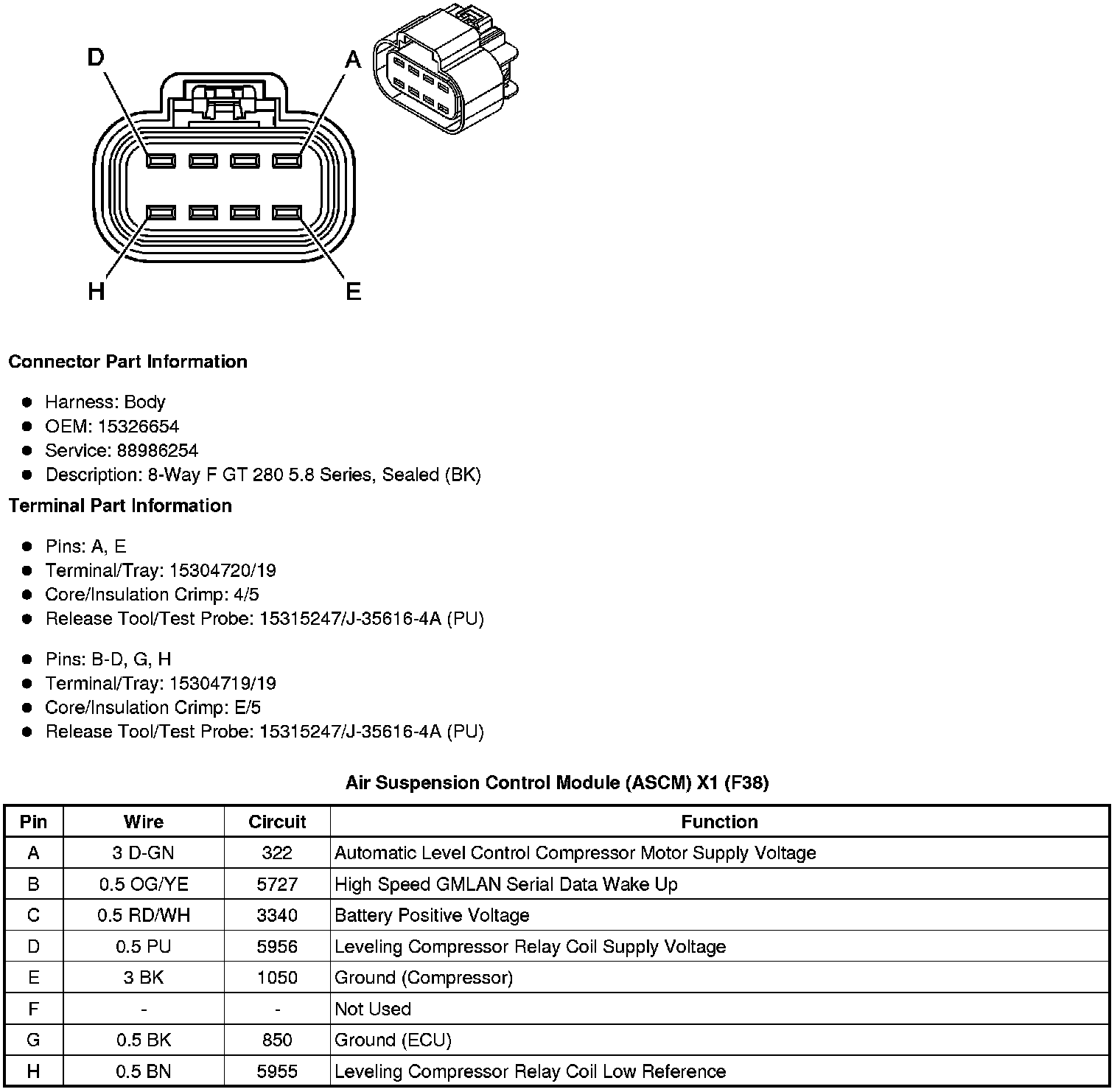

Air Suspension Control Module (ASCM) X1 (F38)

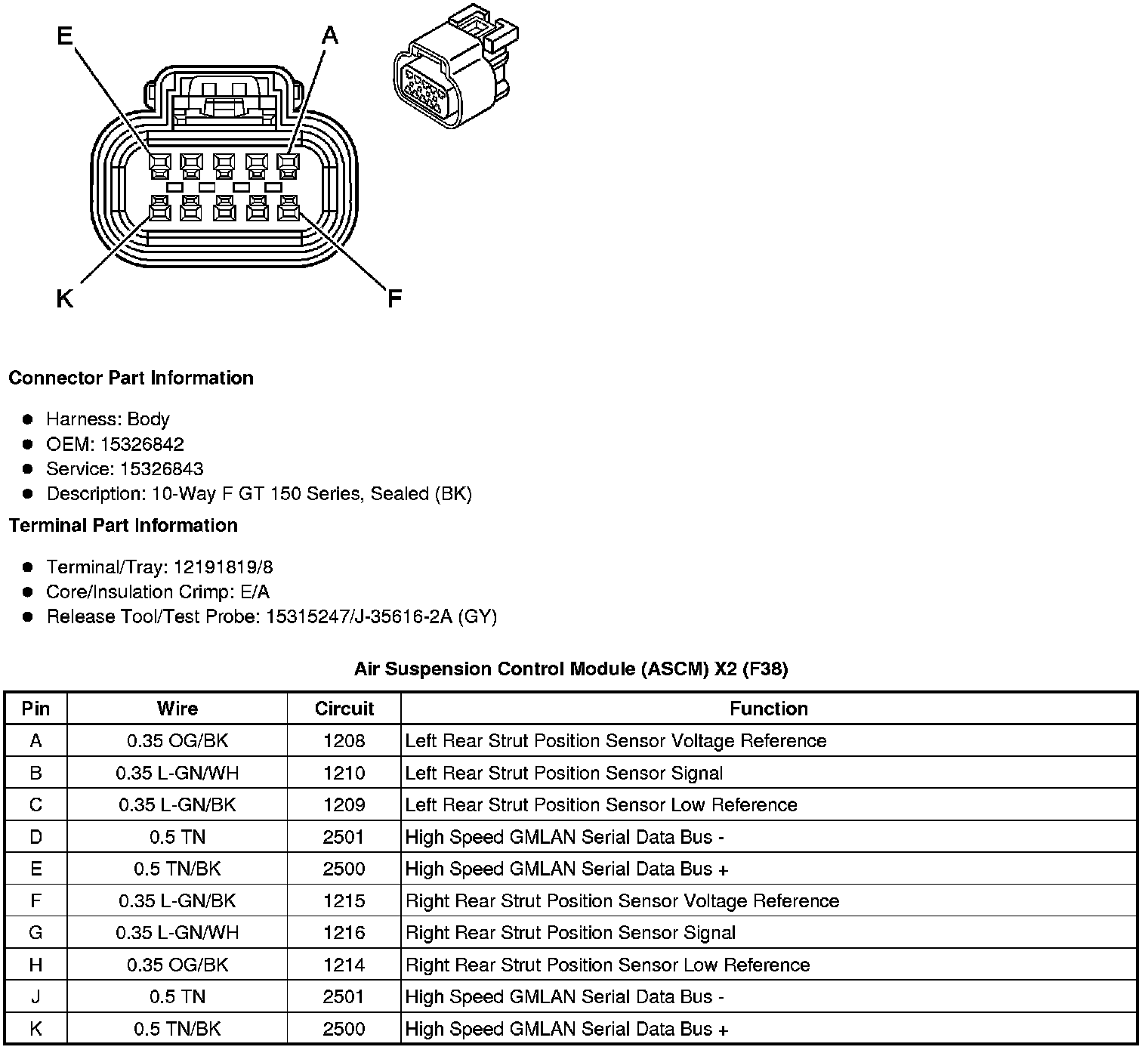

Air Suspension Control Module (ASCM) X2 (F38)

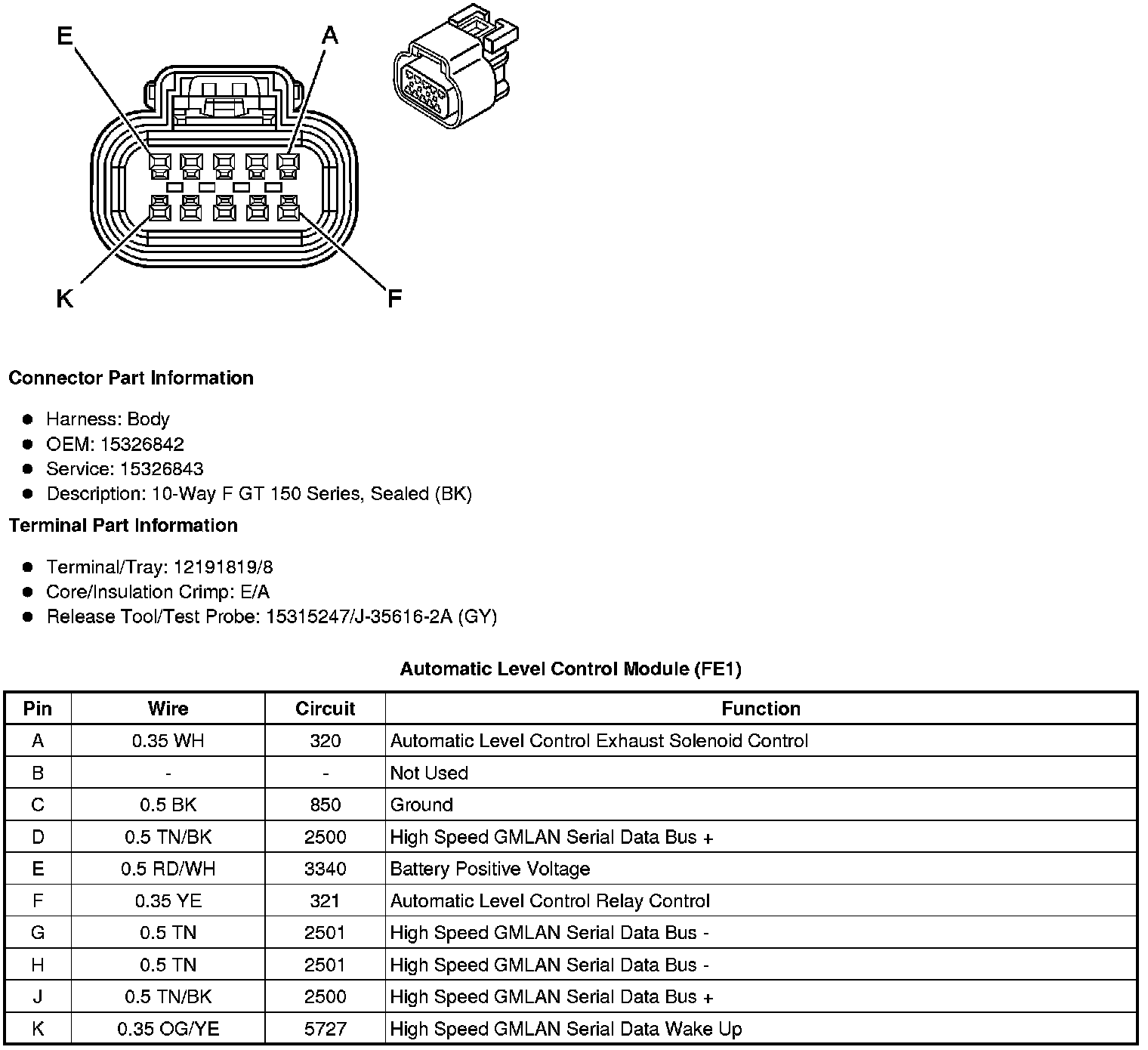

Automatic Level Control Module (FE1)

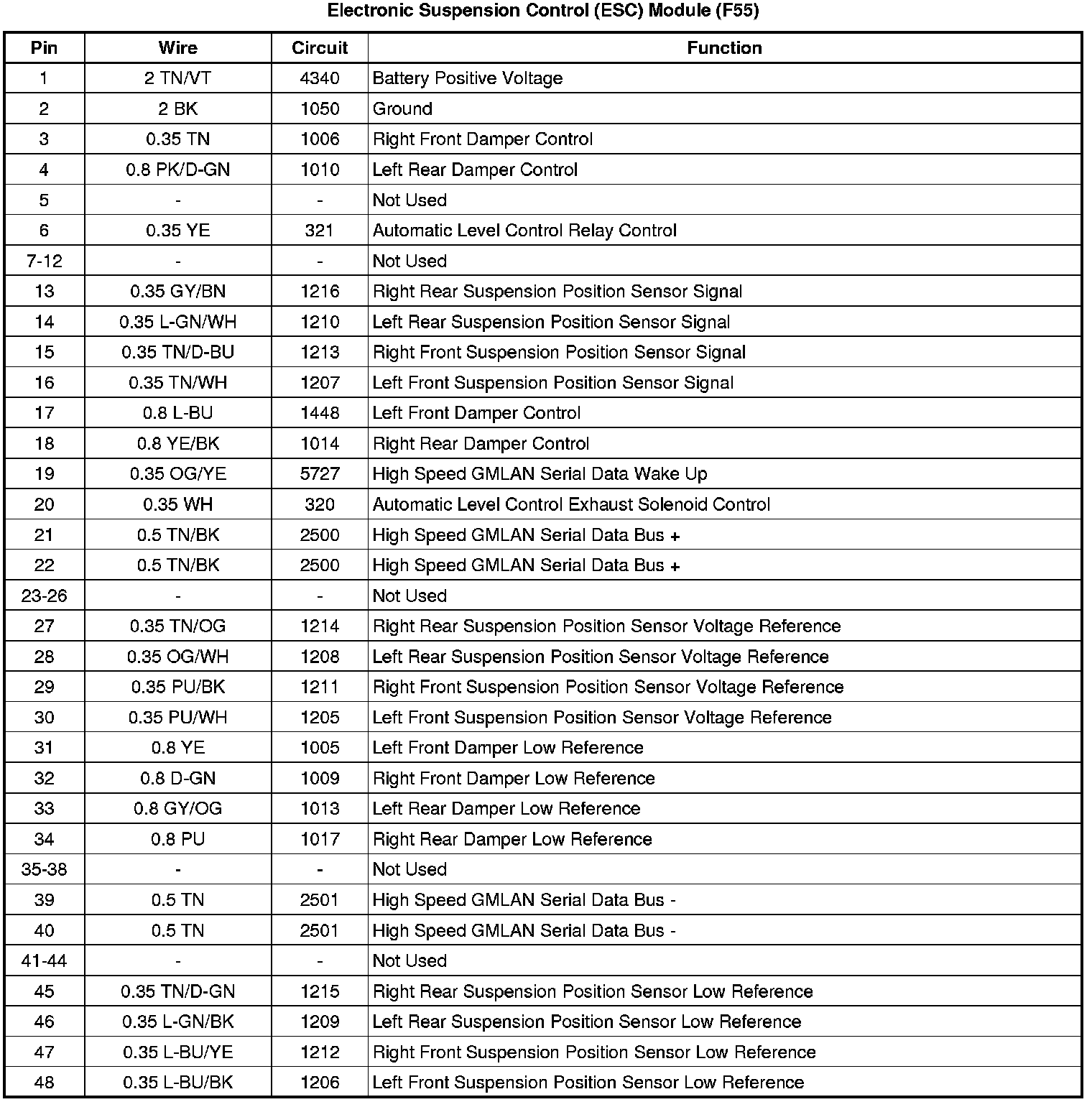

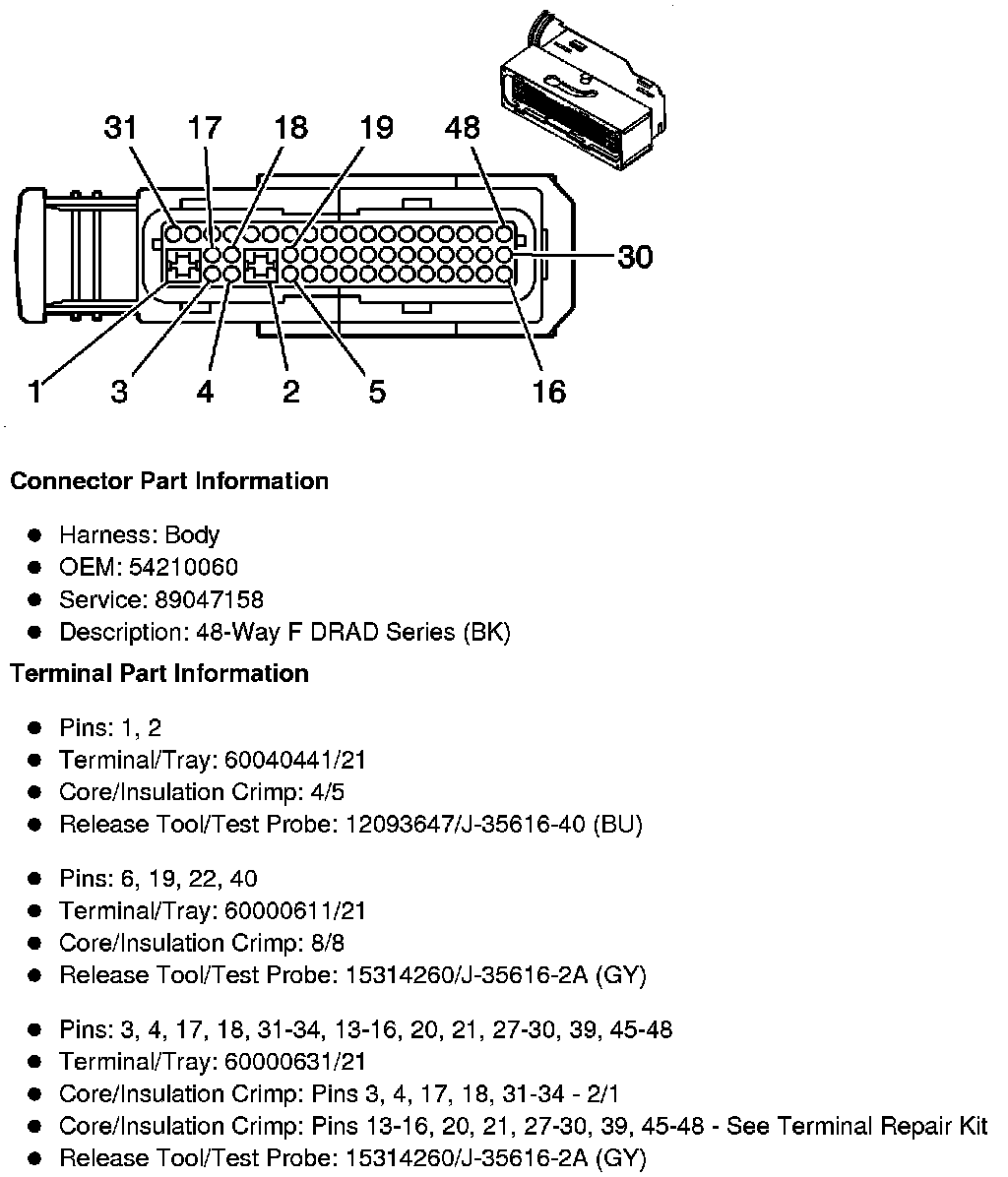

Electronic Suspension Control (ESC) Module (F55)
