Front of Vehicle/Engine Compartment Component Views

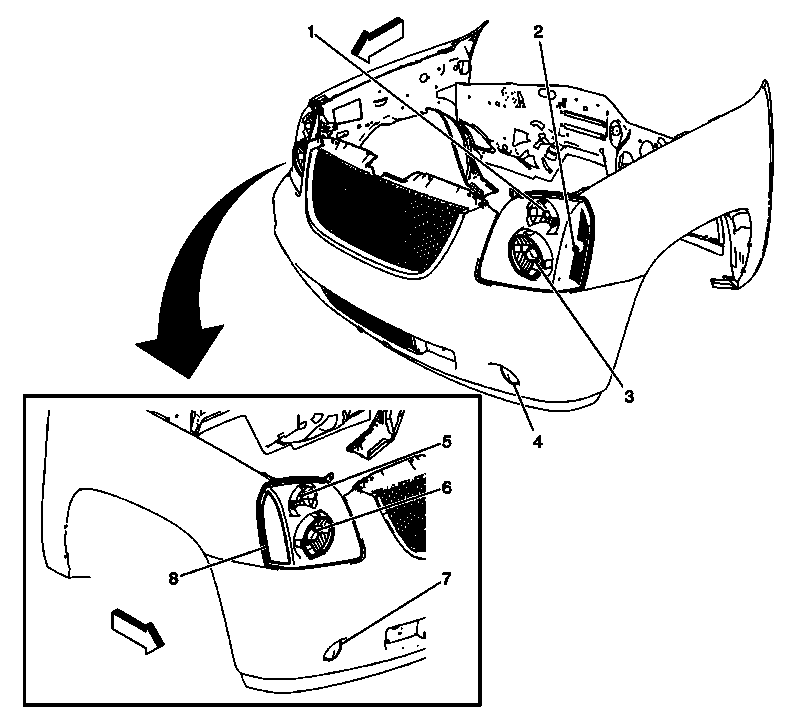

Fig 1: Front of Vehicle Components (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left High Beam
2	Headlamp - Left Low Beam
3	Side Marker Lamp - Left Front
4	Park/Turn Signal Lamp - Left
5	Daytime Running Lamp (DRL) - Left
6	Fog Lamp - Left Front (T96)
7	Daytime Running Lamp (DRL) - Right
8	Park/Turn Signal Lamp - Right
9	Fog Lamp - Right Front (T96)
10	Side Marker Lamp - Right Front
11	Headlamp - Right Low Beam
12	Headlamp - Right High Beam

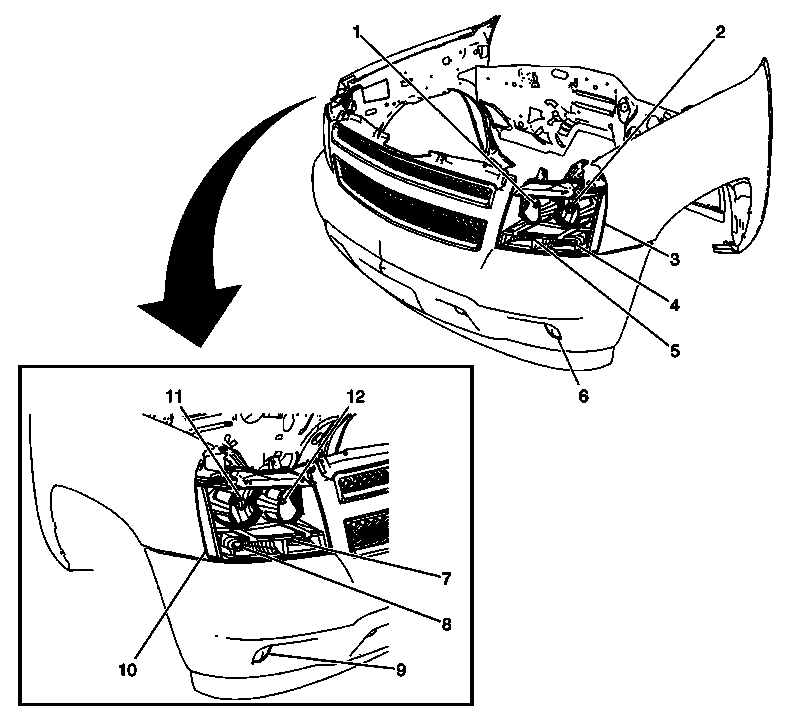

Fig 2: Front of Vehicle Components (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - Left
2	Side Marker Lamp - Left Front
3	Headlamp - Left
4	Fog Lamp - Left Front (T96)
5	Park/Turn Signal Lamp - Right
6	Headlamp - Right
7	Fog Lamp - Right Front (T96)
8	Side Marker Lamp - Right Front

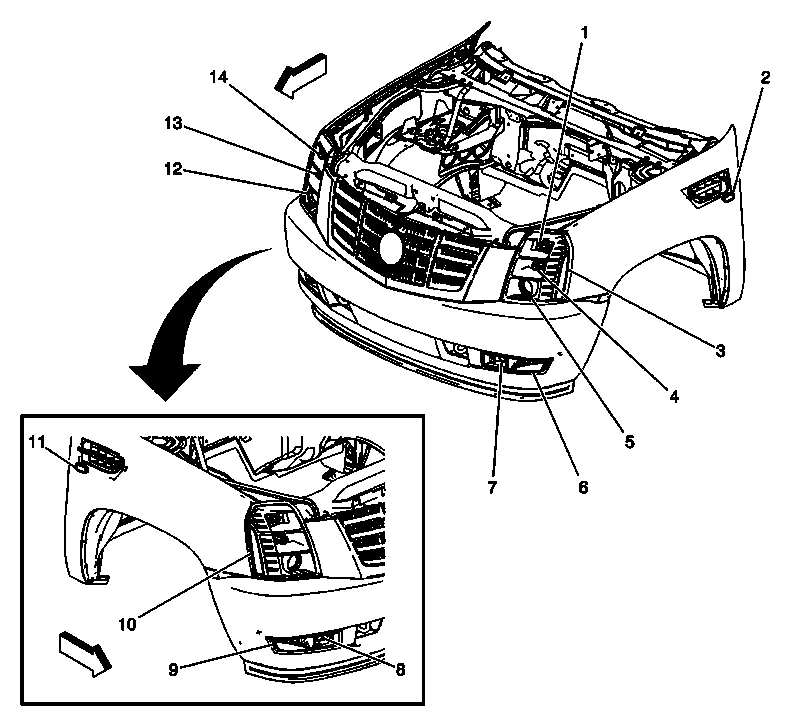

Fig 3: Front of Vehicle Components (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Lamp - Left Front (Z75)
2	Repeater Lamp - Left Front (TR2)
3	Side Marker Lamp - Left Front
4	Daytime Running Lamp (DRL) - Left
5	Headlamp - Left
6	Turn Signal Lamp - Left Front
7	Fog Lamp - Left Front (T96)
8	Fog Lamp - Right Front (T96)
9	Turn Signal Lamp - Right Front
10	Side Marker Lamp - Right Front
11	Repeater Lamp - Right Front (TR2)
12	Headlamp - Right
13	Daytime Running Lamp (DRL) - Right
14	Park Lamp - Right Front (Z75)

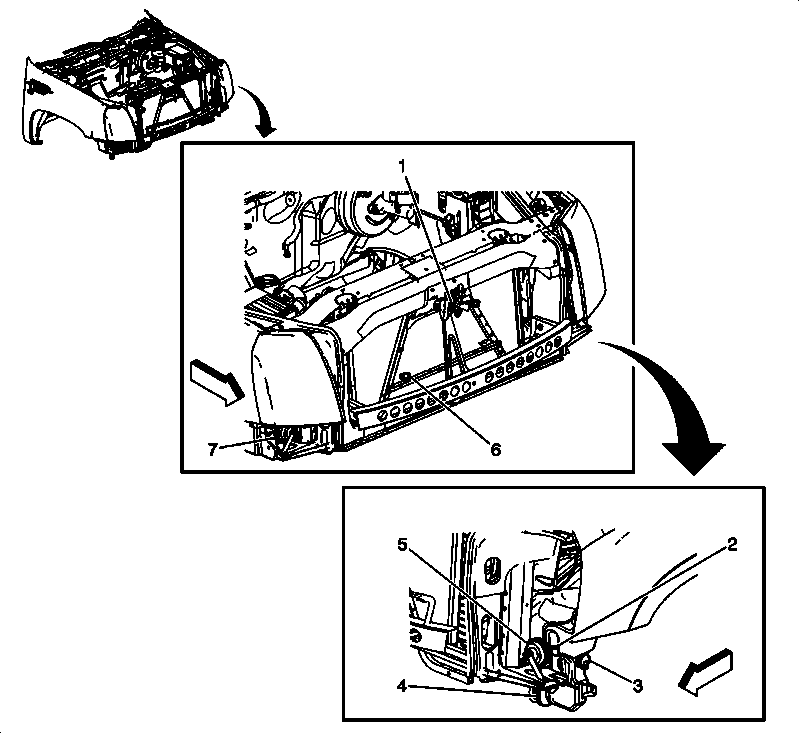

Fig 4: Rear of Front Grille Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3, AP8 or HP2)
2	Ambient Air Temperature Sensor - HVAC (CJ2)
3	Rear Window Washer Fluid Pump (E52)
4	Windshield Washer Fluid Level Switch
5	Windshield Washer Fluid Pump
6	Horn - Left
7	Ambient Air Temperature Sensor - HVAC (CJ2)
8	Horn - Right

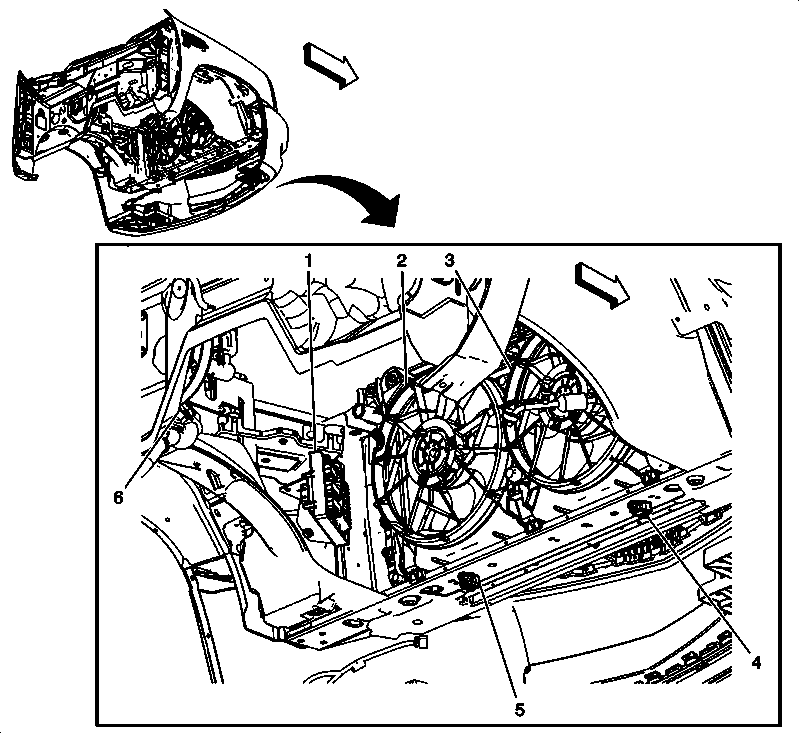

Fig 5: Front of the Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM)
2	Engine Cooling Fan - Left
3	Engine Cooling Fan - Right
4	Inflatable Restraint Front Sensor - Right
5	Inflatable Restraint Front Sensor - Left
6	Automatic Level Control (ALC) Relay (Z55)

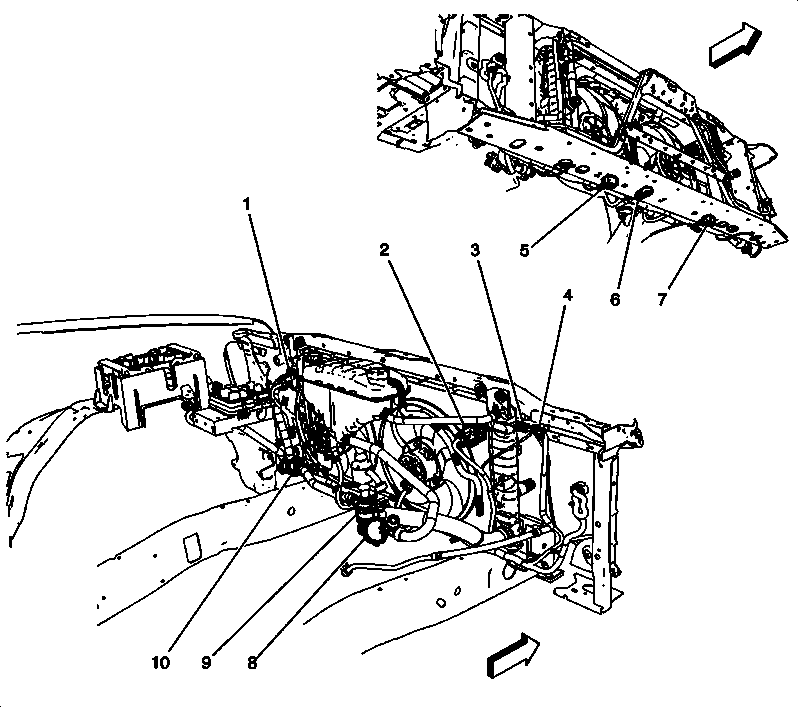

Fig 6: Front of Engine Compartment Components (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cooling Fan Resistor - Left
2	Engine Cooling Fan Resistor - Right
3	Generator Control Module Temperature Sensor
4	A/C Low Pressure Sensor
5	Inflatable Restraint Front End Sensor - Right
6	High Voltage Circuit Impact Detection Sensor
7	Inflatable Restraint Front End Sensor - Left
8	Heater Coolant Pump
9	Generator Control Module Coolant Pump - Right
10	Generator Control Module Coolant Pump - Left

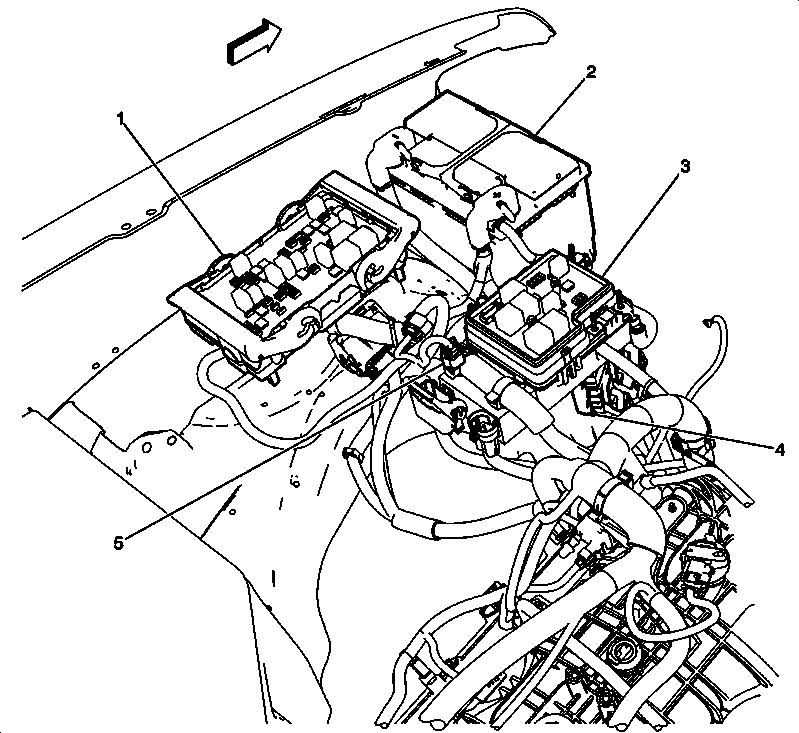

Fig 7: Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2	Battery (except HP2)
3	Fuse Holder (except HP2)
4	Battery (HP2)
5	A/C Refrigerant Pressure Sensor (except HP2)
6	A/C Refrigerant Pressure Sensor (HP2)

Fig 8: Left Side of Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Fuse Block - Underhood
3	Engine Control Module (ECM)
4	Brake Booster Vacuum Sensor (JD9)
5	Brake Fluid Level Switch

Fig 9: Left Side of Engine Compartment Components (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Fuse Block - Auxiliary
3	Engine Control Module (ECM)
4	Battery Current Sensor

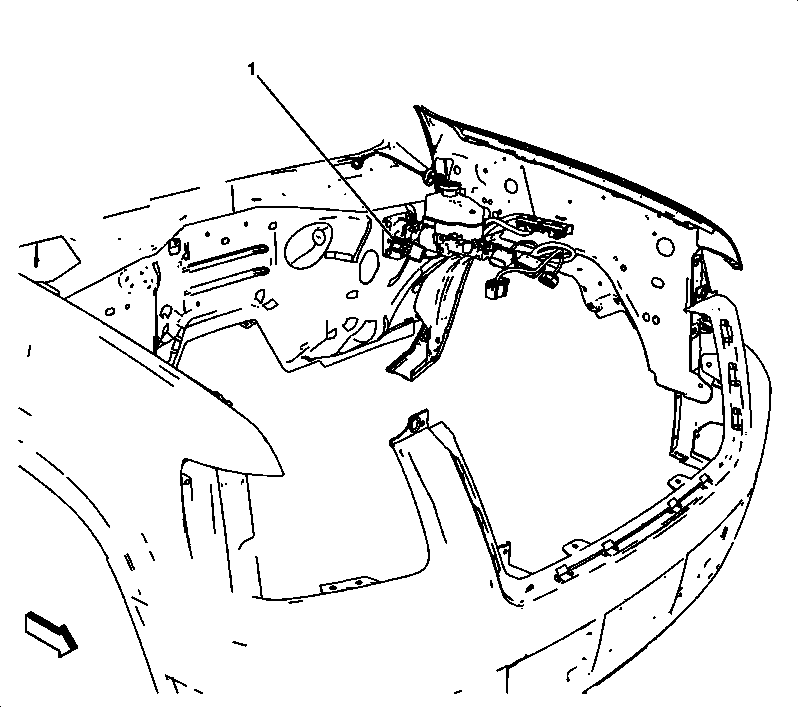

Fig 10: Brake Master Cylinder Piston Position Sensor (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Master Cylinder Piston Position Sensor

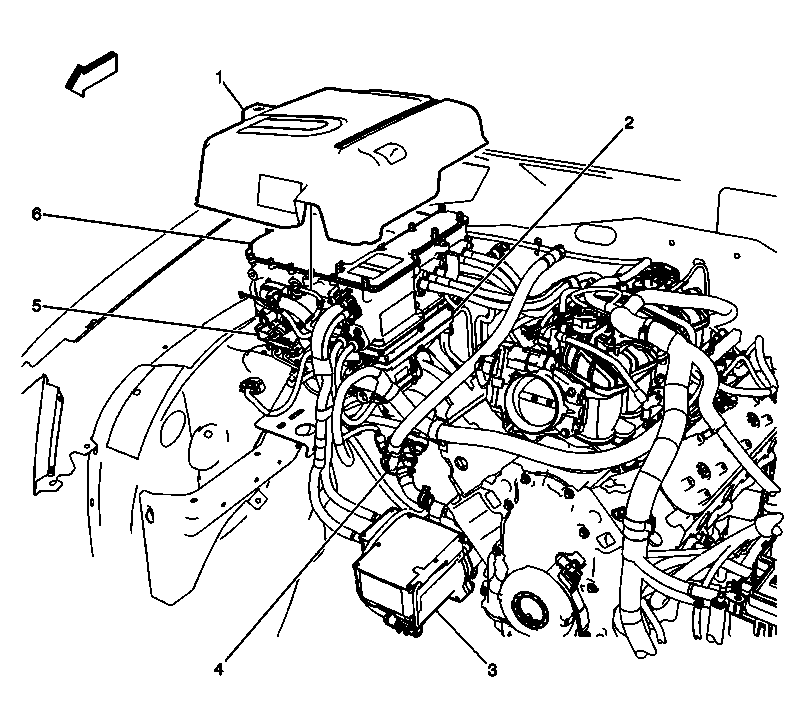

Fig 11: Right Side of Engine Compartment Components (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Drive Motor Generator Power Inverter Module Cover
2	Electronic Power Steering Motor Control Module
3	A/C Compressor
4	Heater Coolant Pump
5	Accessory DC Power Control Module
6	Drive Motor Generator Power Inverter Module

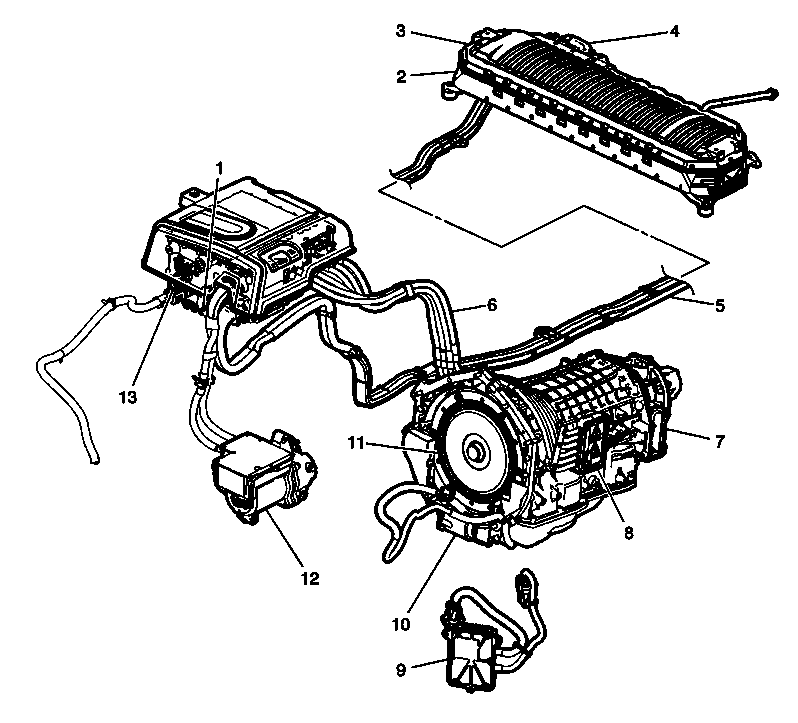

Fig 12: Hybrid Control Electronic Component Views (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accessory DC Power Control Module
2	Drive Motor Generator Battery
3	Drive Motor Generator Battery Control Module
4	Drive Motor Battery Cable Terminal Extension Cover
5	Drive Motor Battery 300 Volt Positive and Negative Cable Assembly
6	Drive Motor Generator Power Inverter Module 3 Phase Cable Assembly
7	Drive Motor with Generator Assembly - 2nd Position
8	Transmission Power Inverter Module (3 Phase) Cable Cover
9	Automatic Transmission Auxiliary Fluid Pump Control Module
10	Automatic Transmission Auxiliary Fluid Pump
11	Drive Motor with Generator Assembly - 1st Position
12	A/C Compressor
13	Drive Motor Generator Power Inverter Module

Fig 13: High Voltage Ring Terminal Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Conditioner Compressor 300 V B-
2	Air Conditioner Compressor 300 V B+
3	Motor 2 Phase U
4	Motor 2 Phase W
5	Motor 2 Phase V
6	Motor 1 Phase U
7	Motor 1 Phase W
8	Motor 1 Phase V
9	Drive Motor Generator Battery 300 V B-
10	Drive Motor Generator Battery 300 V B+
