Assist Step Control Module X2 (BRS)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

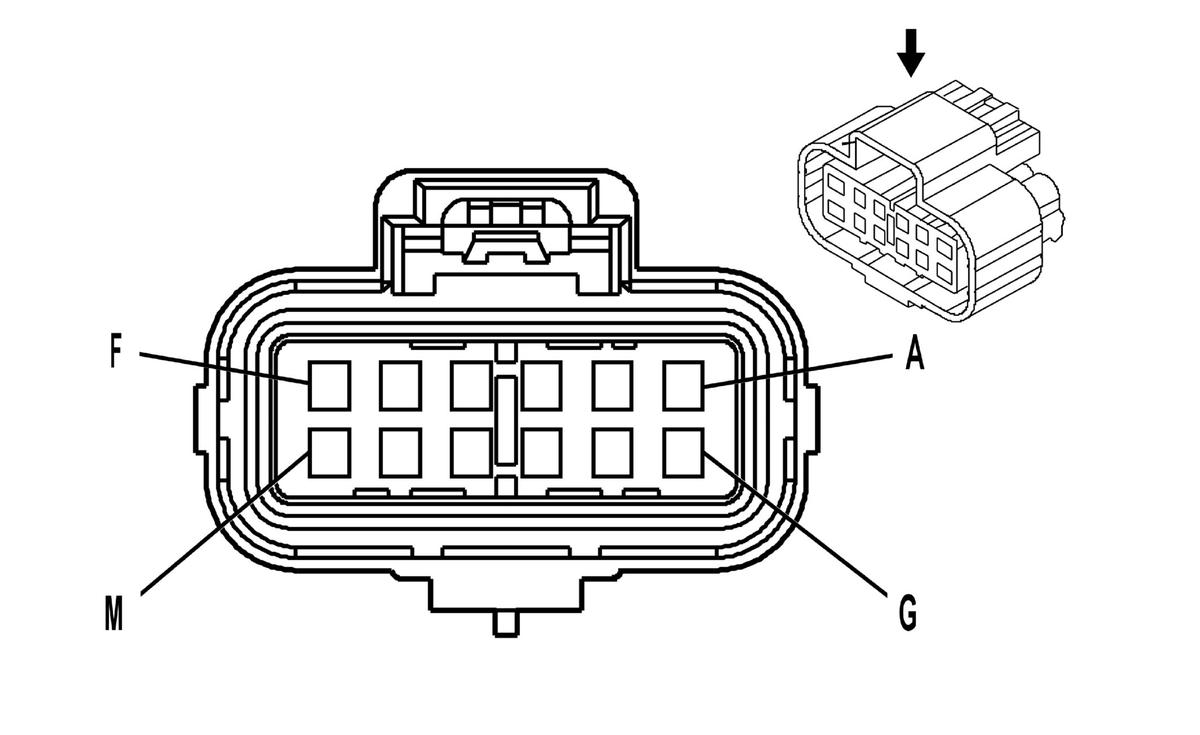

Fig 1: Assist Step Control Module X2 (BRS) Connector End View
GM831372Courtesy of GENERAL MOTORS CORP.
Assist Step Control Module X2 (BRS)

Pin Wire Color Circuit Function
A 0.5 PK 7468 10-Volt Reference
B 0.5 L-GN 7464 10-Volt Referencee
C 0.5 YE 7467 Running Board Motor Hall Sensor Left Signal
D 0.5 PU 7465 Running Board Motor Hall Sensor Right Signal
E 0.5 TN 7466 Low Reference
F 0.5 YE/BK 7463 Low Reference
G - - Not Used
H 0.5 D-GN 5060 Low Speed GMLAN Serial Data
J - - Not Used
K 0.5 TN/WH 7462 Running Board Disable Signal
L-M - - Not Used
Connector Part Information
  • OEM: 15326849
  • Service: 88986260
  • Description: 12-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
