Rear Seat Number 2 Buckle Side Belt Replacement

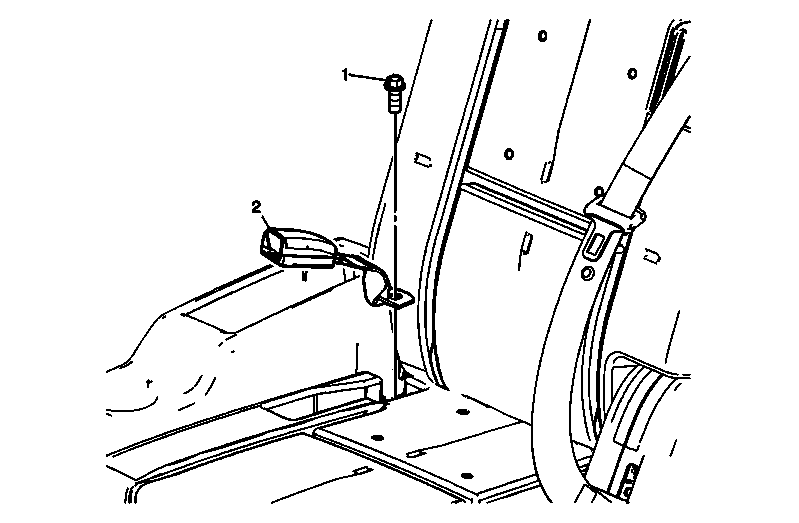

Fig 1: View Of Rear Seat Belt Buckle & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove third row seat. Refer to Rear Number 2 Seat Replacement (Suburban/Yukon XL) or Rear Number 2 Seat Replacement (Tahoe/Yukon/Escalade) . Remove seat back pad and cover. Refer to Rear Seat Number 2 Back Cushion Cover and Pad Replacement .
1	Rear Seat No. 2 (Buckle Side) Belt Bolt CAUTION: Refer to Fastener Caution . Tighten: 52 N.m (38 lb ft)
2	Rear Seat No. 2 (Buckle Side) Belt Assembly

Callout

Component Name

Preliminary Procedure

Rear Seat No. 2 (Buckle Side) Belt Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 52 N.m (38 lb ft)

Rear Seat No. 2 (Buckle Side) Belt Assembly
