Power Window Switch: Diagrams




Component Connector End Views

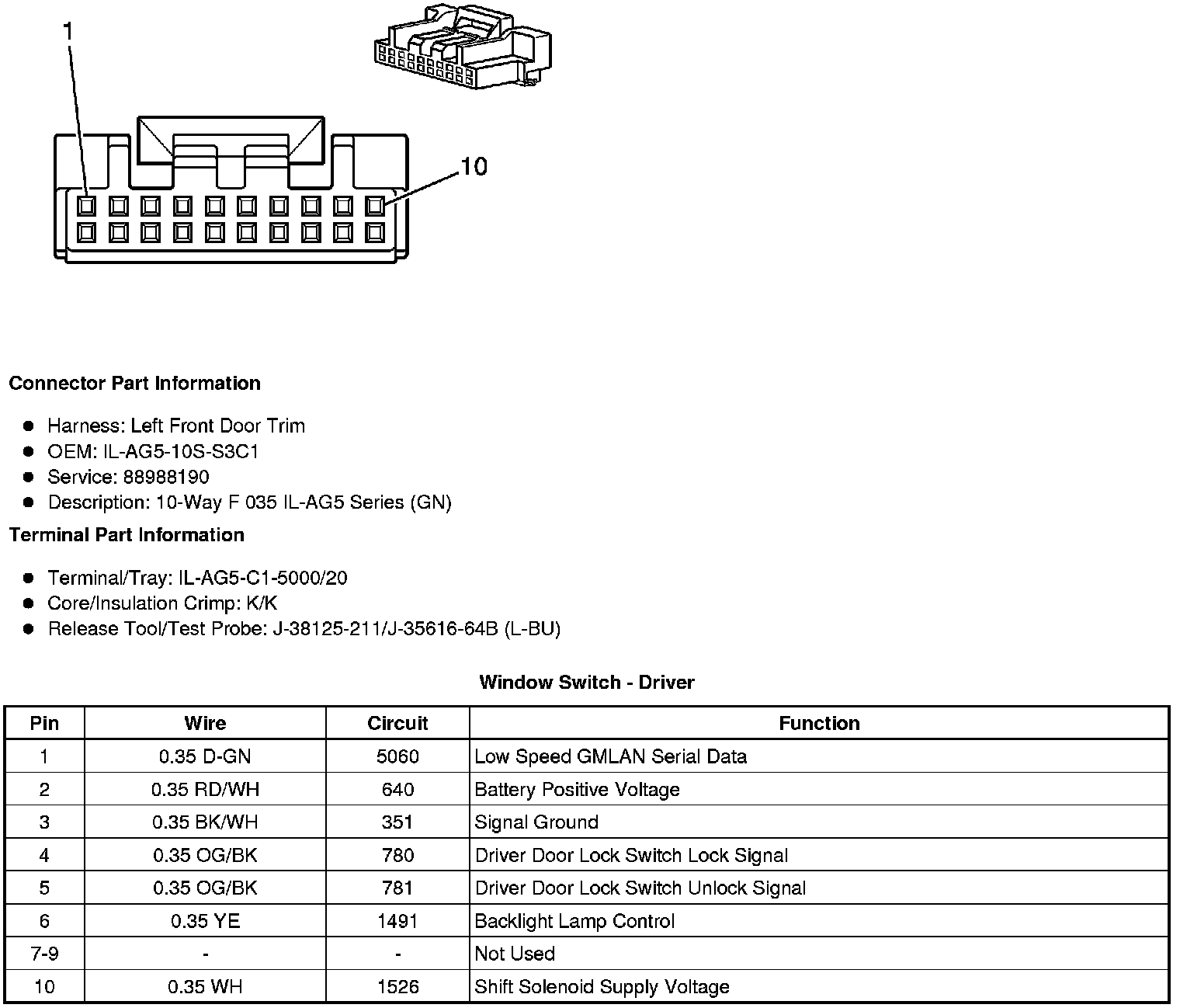

Window Switch - Driver





Window Switch - Left Rear





Window Switch - Passenger





Window Switch - Right Rear
