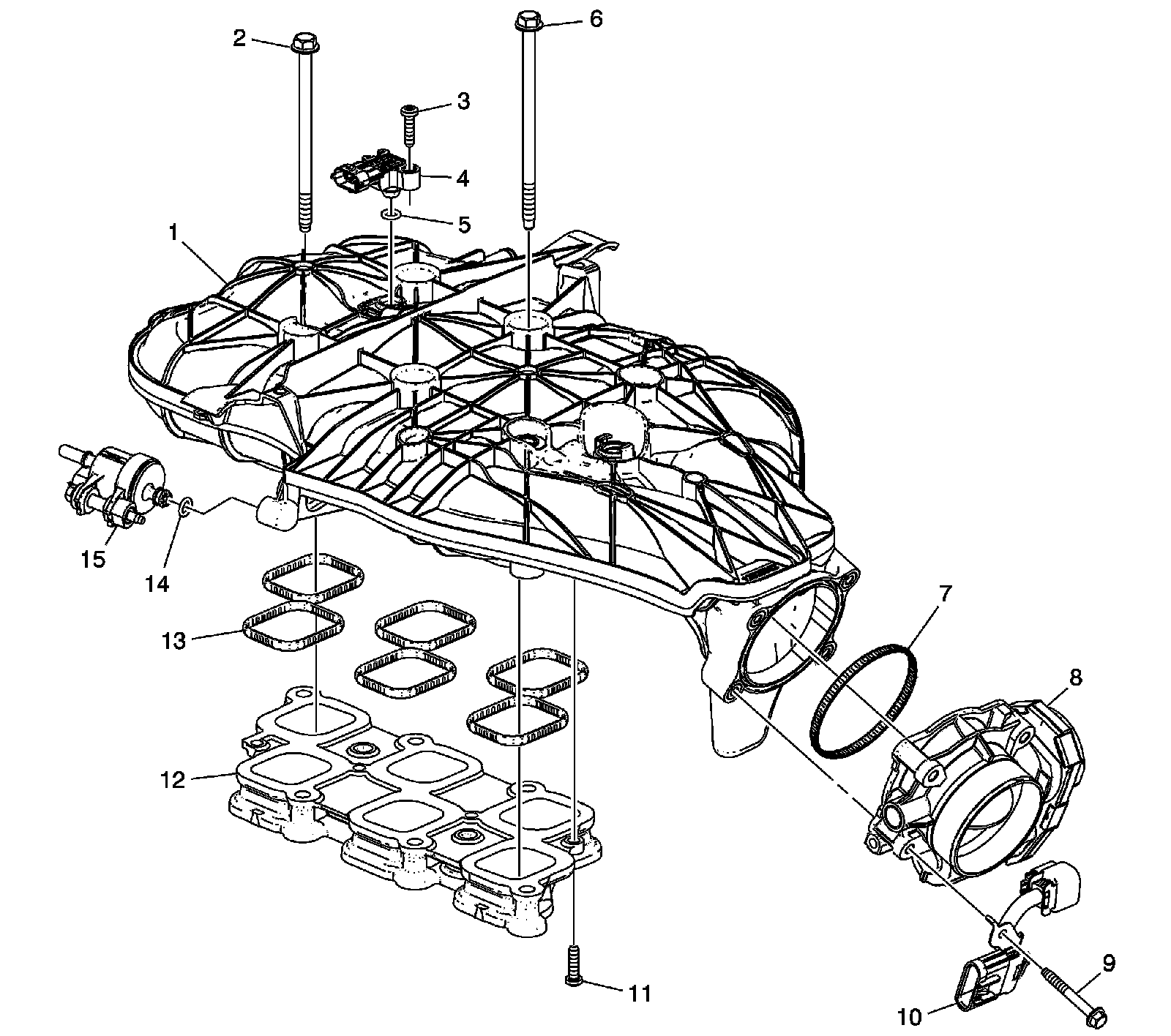

Intake Manifold (LF1 or LFW)




1 - Upper Intake Manifold
2 - Upper Intake Manifold Bolt - Short
3 - MAP Sensor Bolt
4 - MAP Sensor
5 - MAP Sensor O-ring Seal
6 - Upper Intake Manifold Bolt - Long
7 - Throttle Body Gasket
8 - Throttle Body
9 - Throttle Body Bolt
10 - Throttle Body Jumper Harness
11 - Lower Intake Manifold Bolt
12 - Lower Intake Manifold
13 - Upper Intake Manifold Gasket
14 - EVAP Solenoid O-ring Seal
15 - EVAP Solenoid
