Floor Console Components

Instrument Panel/Center Console Component Views

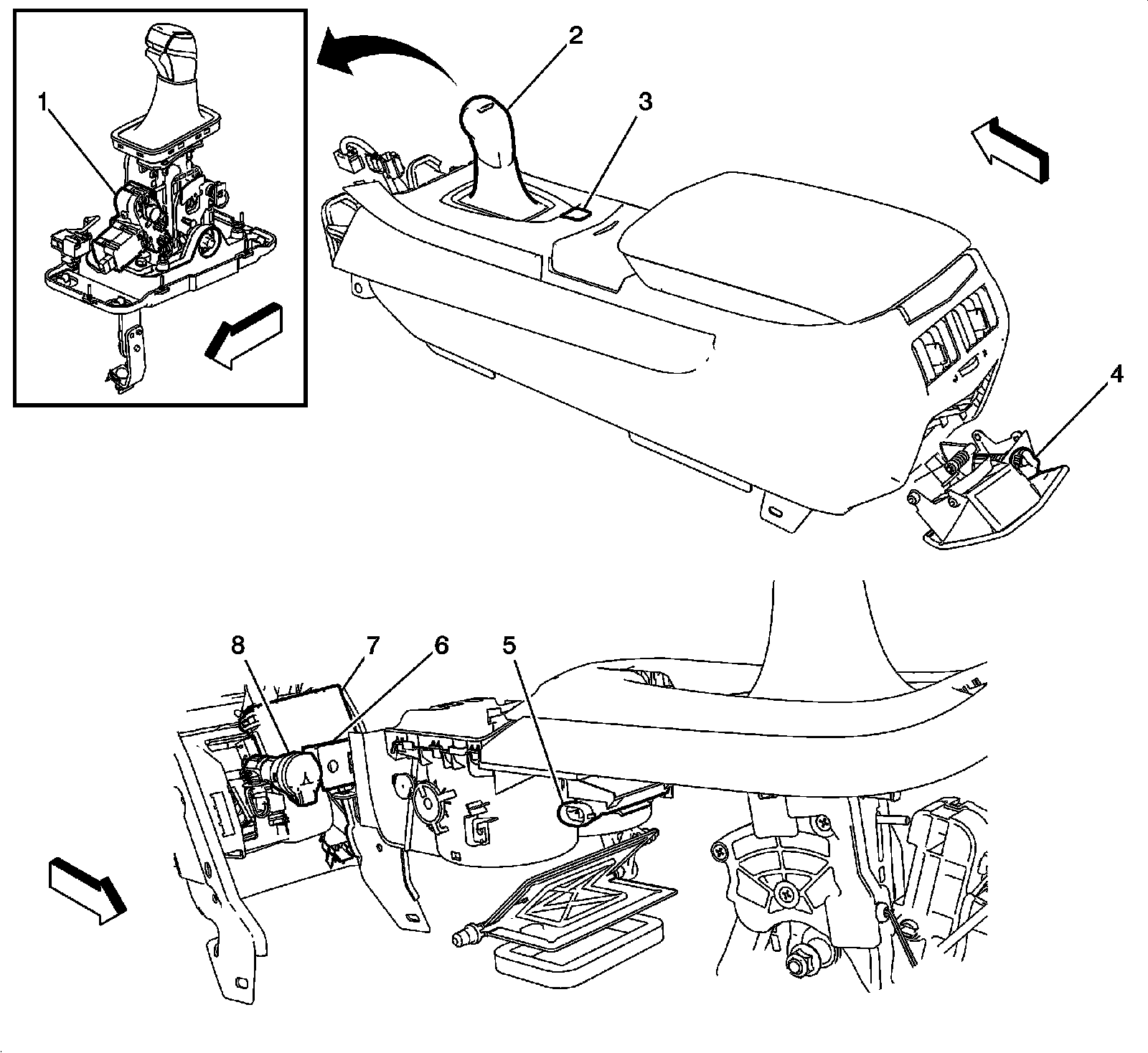

Floor Console Components




1 - Shift Lock Control Solenoid (MYA or MYB or MYD)
2 - Automatic Transmission Shift Lever (MYA or MYB or MYD)
3 - Electronic Park Brake Switch (J77)
4 - Accessory Power Outlet - Rear (without DT4) or Cigar Lighter (DT4)
5 - Keyless Entry Antenna - Center Console Passive (BTM)
6 - Auxiliary Audio Jack
7 - Keyless Entry Antenna - Center Console Active (BTM)
8 - Accessory Power Outlet - Center Console Compartment
