Installation Procedure
CAUTION:
Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.
CAUTION:
Replacement components must be the correct part number for the application. Components requiring the use of the thread locking compound, lubricants, corrosion inhibitors, or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. Do not use these coatings on components unless specified. These coatings can affect the final torque, which may affect the operation of the component. Use the correct torque specification when installing components in order to avoid damage.
- Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the threads of the ECT sensor.

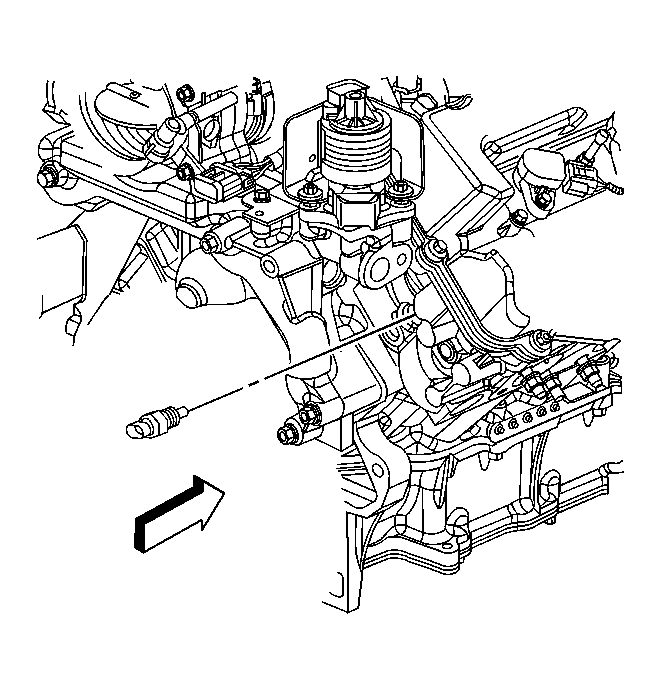

- Install the ECT sensor.
Tighten
Tighten the sensor to 20 N.m (15 lb ft).

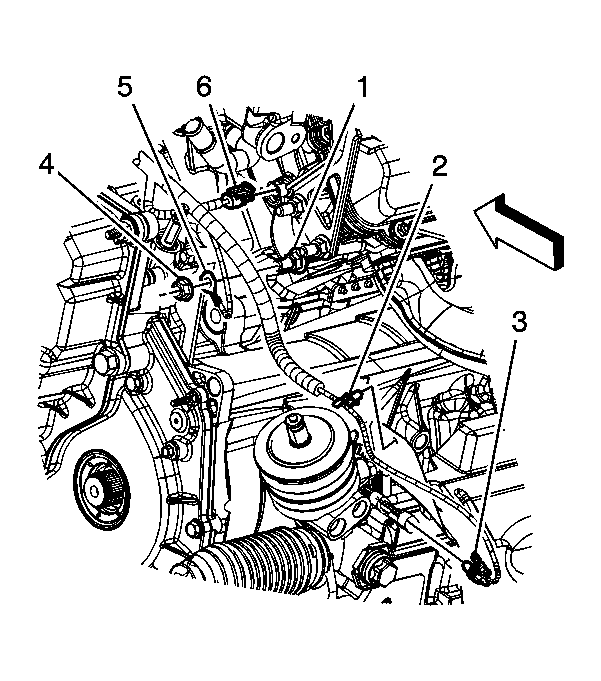

- Connect the engine harness electrical connector (6) to the ECT sensor.
- Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (Vac-N-Fill) .
- Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
CAUTION:
Refer to Fastener Caution .
