Rear of Engine Compartment




Front of Vehicle/Engine Compartment Component Views

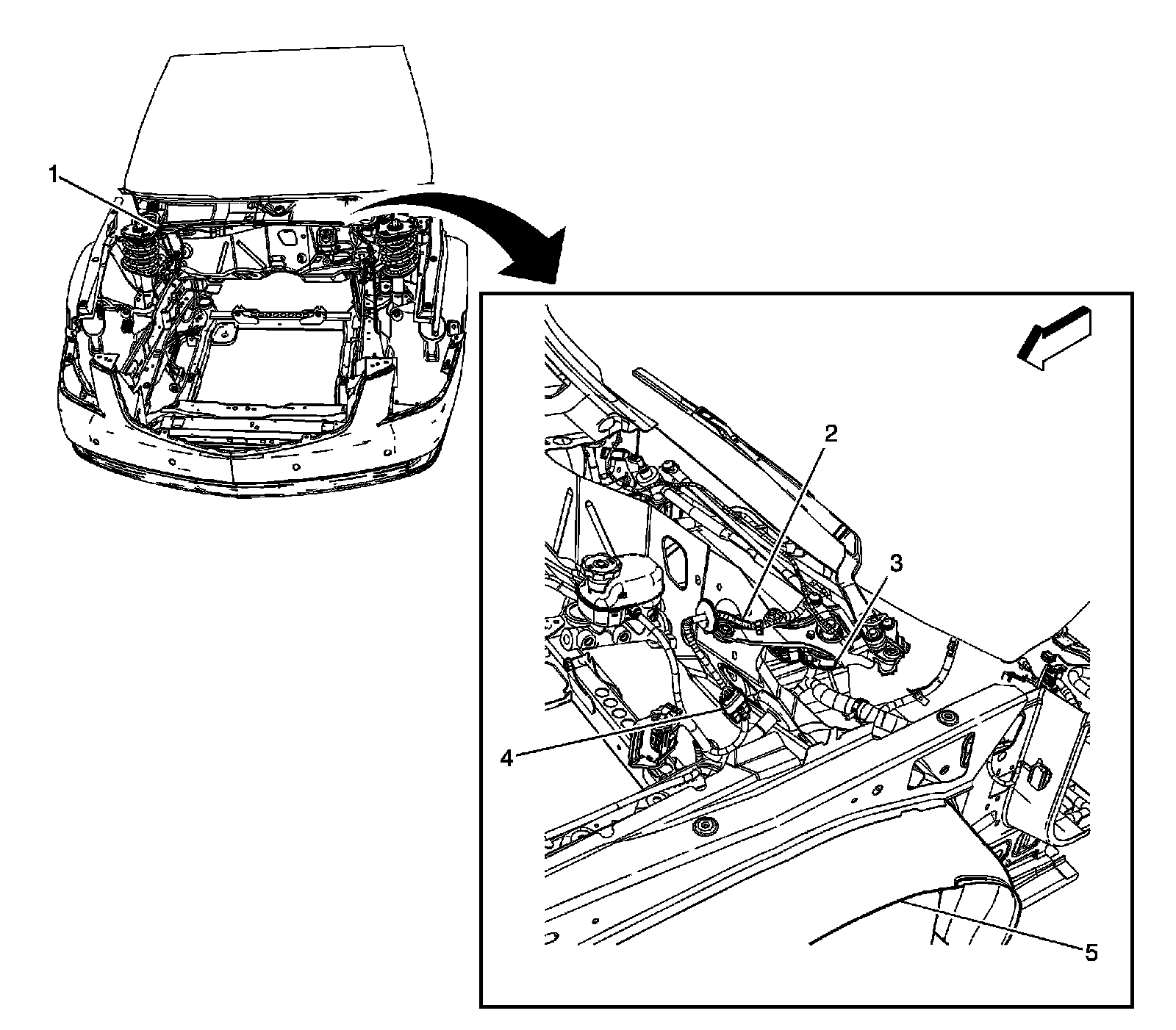

Rear of Engine Compartment




1 - Windshield Washer Solvent Heater (XA7)
2 - Windshield Wiper Motor Jumper Harness
3 - Windshield Wiper Motor
4 - X100 Wiper Motor Jumper Harness to Body Harness
5 - Left Front Wheel Well
