Automatic Transmission Auxiliary Fluid Pump Control Module X2 (HP2)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

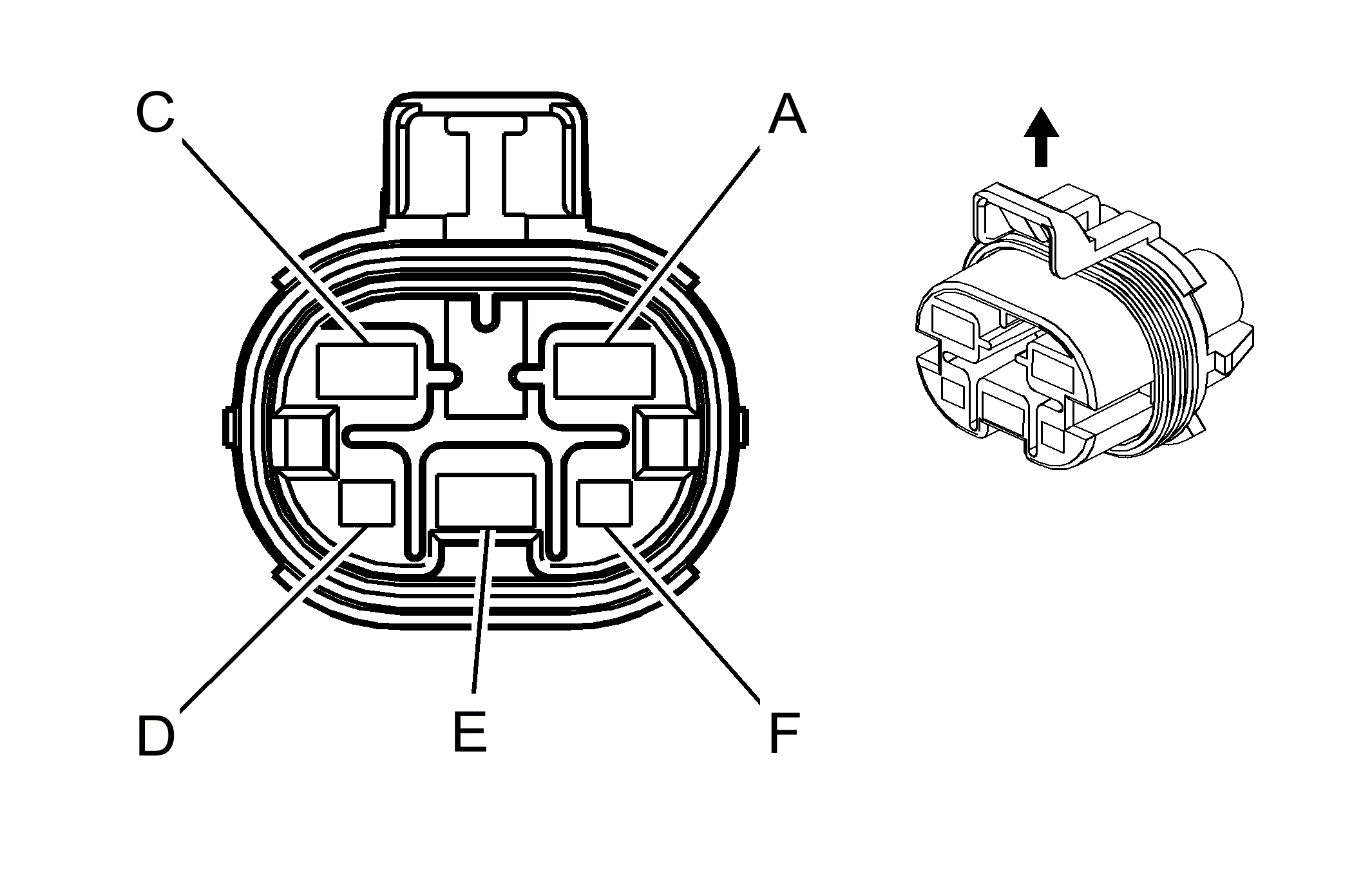

Fig 1: Automatic Transmission Auxiliary Fluid Pump Control Module X2 (HP2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	5 RD	922	AC Voltage Phase A
B	-	-	Not Available
C	5 YE	944	AC Voltage Phase C
D	-	-	Not Used
E	5 D-BU	933	AC Voltage Phase B
F	0.8 BARE	955	Drain Wire

Connector Part Information

OEM: 12052287
Service: See Catalog
Description: 5-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
