Engine Control Module (ECM) X2 (Diesel)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

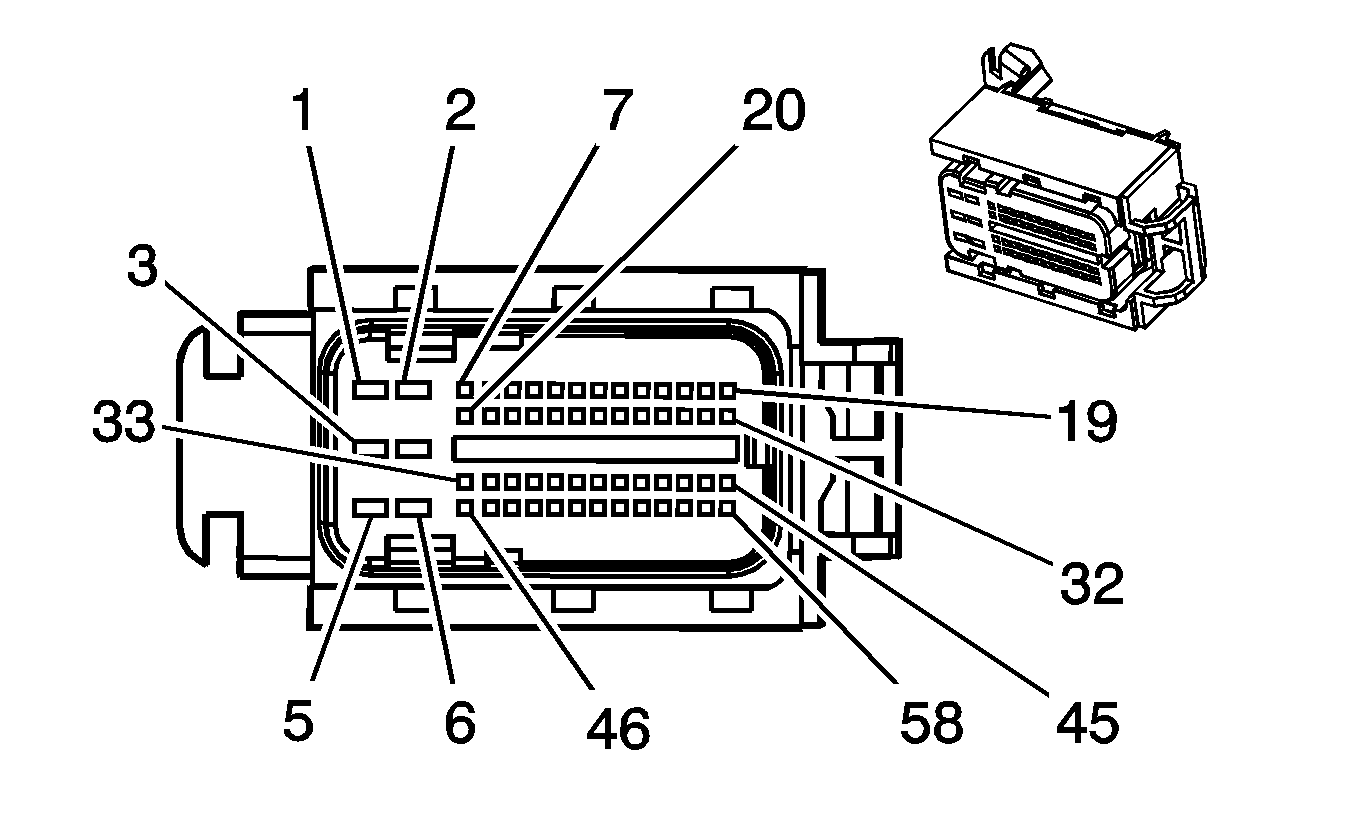

Fig 1: Engine Control Module (ECM) X2 (Diesel) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	2 PK/BK	1439	Ignition 1 Voltage
2	2 BK/WH	451	Ground
3	2 PK	1439	Ignition 1 Voltage
4	2 BK/WH	451	Ground
5	2 PK	1439	Ignition 1 Voltage
6	2 BK/WH	451	Ground
7	0.8 BN	582	Motor Control - 2
8	0.8 BN	25	Charge Indicator Control
9-11	-	-	Not Used
12	0.5 D-GN/WH	465	Fuel Pump Relay Control
13	0.5 TN	5514	Low Reference (CJ2/C67)
14	-	-	Not Used
15	0.5 WH/BK	1164	5-Volt Reference 3
16	0.5 D-BU	507	Wait to Start Indicator Control
17-18	-	-	Not Used
19	0.5 YE	5991	Powertrain Relay Coil Control
20	0.8 YE	581	Motor Control - 1
21	0.5 PK	439	Ignition 1 Voltage
22-26	-	-	Not Used
27	0.5 GY	2700	5-Volt Reference 2 (CJ2/C67)
28	-	-	Not Used
29	0.5 BN	1271	Low Reference
30	0.5 BN/WH	419	MIL Control
31	0.5 D-GN/WH	459	A/C Compressor Clutch Relay Control (CJ2/C67)
32	-	-	Not Used
33	0.5 OG/BK	5764	Exhaust Gas Recirculation Valve Motor High Signal
34	0.5 TN/BK	6049	Low Reference
35	0.5 OG/BK	380	A/C Refrigerant Pressure Sensor Signal (CJ2/C67)
36	0.5 PU	1589	Fuel Level Sensor Signal
37	-	-	Not Used
38	0.8 GY	23	Generator Field Duty Cycle Signal
39	0.5 OG/BK	1786	Park/Neutral Signal
40-43	-	-	Not Used
44	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
45	0.5 OG/BK	6399	VSS High Signal
46	0.5 L-GN/BK	5746	EGR Valve Motor Low Control
47	0.5 BN	6062	Low Reference
48	0.5 YE	1578	Fuel Temperature Sensor Signal
49	0.5 D-BU	1161	APP Sensor 1 Signal
50	0.5 L-BU/WH	1937	Secondary Fuel Level Sensor Signal (Except NQZ)
51	-	-	Not Used
52	0.35 WH	6275	Low Reference
53	-	-	Not Used
54	0.5 YE/BK	1827	Vehicle Speed Signal
55	-	-	Not Used
56	0.5 D-BU	5985	Accessory Wakeup Serial Data
57	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
58	-	-	Not Used

Connector Part Information

OEM: 15462694
Service: 88988935
Description: 58-Way F Mixed Series Sealed (BK)

Terminal Part Information

Pins: 1-6
Terminal/Tray: 1928498059/24
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: J-38125-561/J-35616-35 (PU)

Pins: 7-8, 12-13, 15-16, 19-21, 27, 29-31, 33-34, 36, 38-39, 44-50, 52, 54, 56-57
Terminal/Tray: 1928498135/19
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)
