Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front of the I/P -YE9

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information (DIC) Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Ambient Light/Sunload Sensor Assembly (CJ2) / Ambient Light Sensor (C67/C42)
5	HVAC Control Module
6	Inflatable Restraint I/P Module Disable Switch (C99)
7	Power Take-Off (PTO) Switch
8	Auxiliary Power Outlet - Front 2
9	I/P Multifunction Switch Assembly
10	Auxiliary Power Outlet - Front 1
11	Transfer Case Shift Control Switch (NQF/NQH)
12	Trailer Brake Control Panel Switch (JL1)
13	Headlamp and Panel Dimmer Switch

Fig 2: Front of the I/P +YE9

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Inflatable Restraint Steering Wheel Module
3	Shift Control Lever
4	Ambient Light/Sunload Sensor Assembly (CJ2)/Ambient Light Sensor (C67/C42)
5	Speaker - Center (UQA +Y91)
6	Radio
7	Inflatable Restraint I/P Module
8	I/P Compartment Lamp
9	HVAC Control Module
10	Auxiliary Power Outlet - Front 2
11	I/P Multifunction Switch Assembly
12	Auxiliary Power Outlet - Front 1
13	Driver Information Center (DIC) Switch
14	Steering Wheel Control Switch Assembly - Right (UK3)
15	Steering Wheel Control Switch Assembly - Left (K34/KA9)
16	Trailer Brake Control Panel Switch (JL1)
17	Headlamp and Panel Dimmer Switch
18	Dimmer Control
19	Transfer Case Shift Control Switch (NQF/NQH)
20	Turn Signal Multifunction Switch

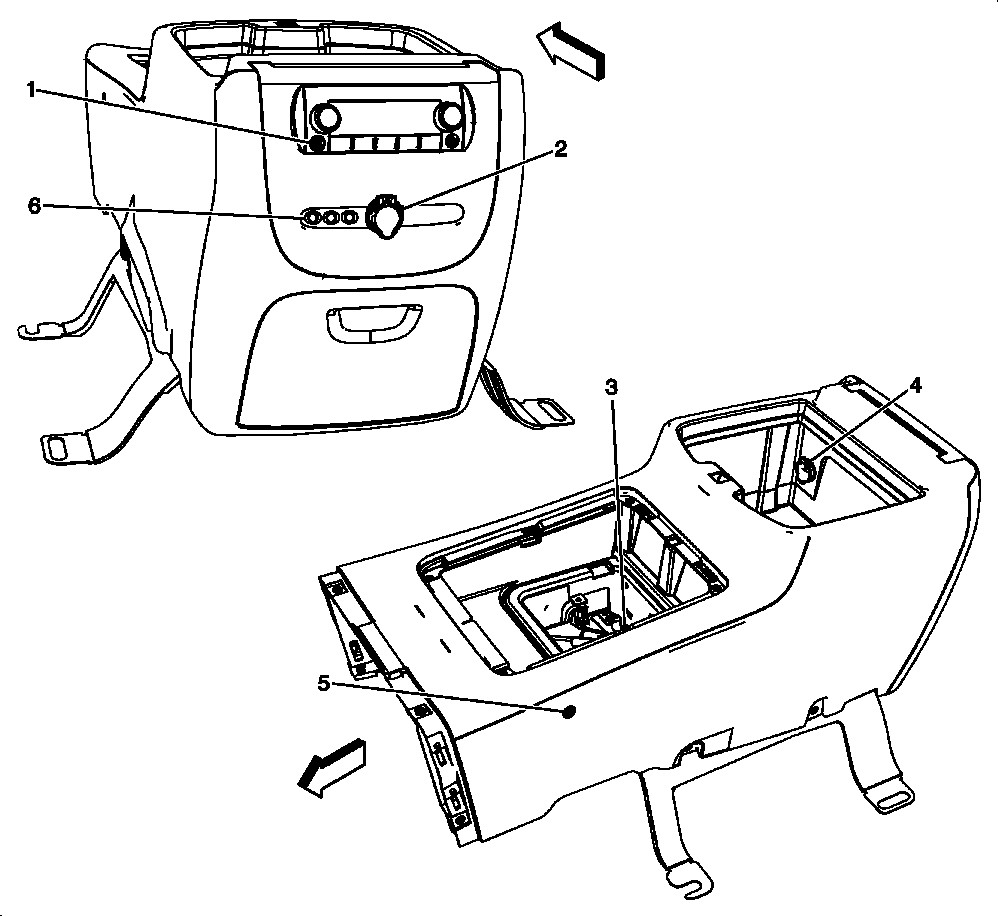

Fig 3: Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Audio (RSA) Controller (UK6)
2	Auxiliary Power Outlet - Console (D07)
3	Audio Amplifier (UQA)
4	Auxiliary Power Outlet - Bin (D07)
5	Noise Compensation Microphone (Y91)
6	Audio/Video Adapter (U42)

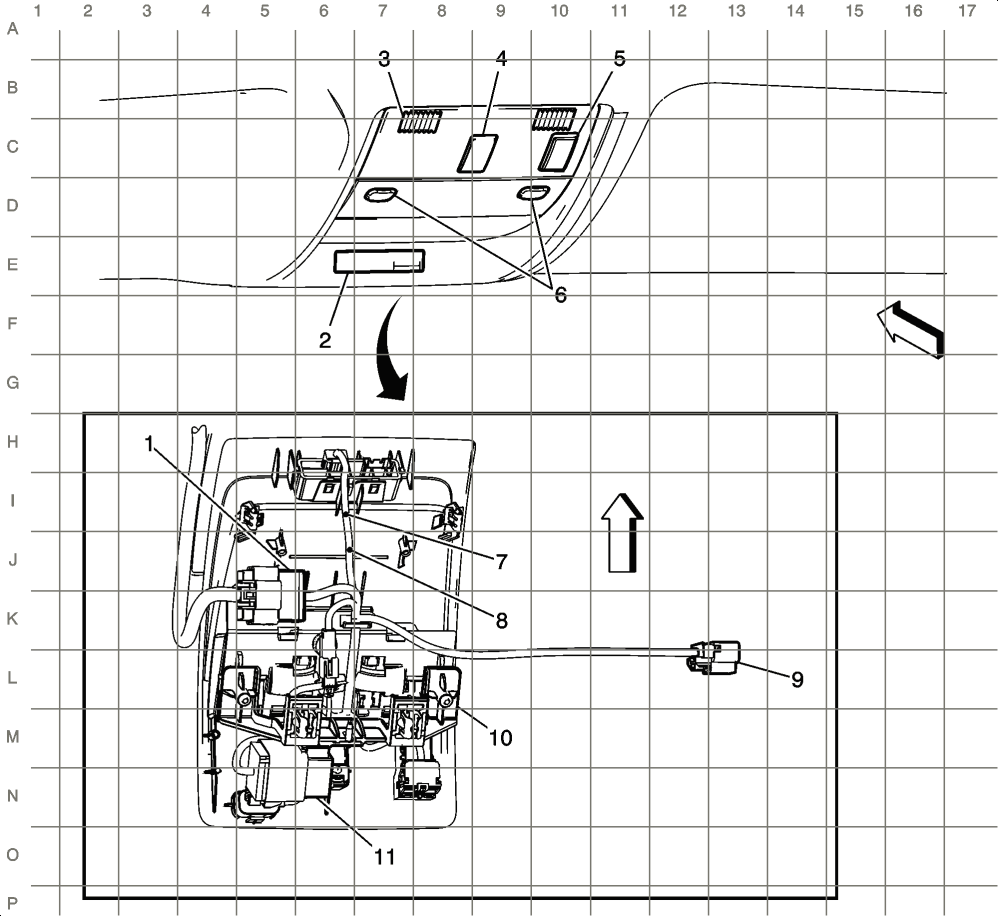

Fig 4: Overhead Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X304
2	Inflatable Restraint Passenger Air Bag ON/OFF Indicator (AL0/C99)
3	Cellular Microphone (UE1/U3U/UVB)
4	Roof Beacon Switch (TRW)
5	Sliding Rear Window Switch (A48)
6	Courtesy/Reading Lamps-Front
7	J322
8	J323
9	X313
10	Roof Mounted Beacon Blunt Cuts (TRW)
11	Roof Beacon Relay (TRW)

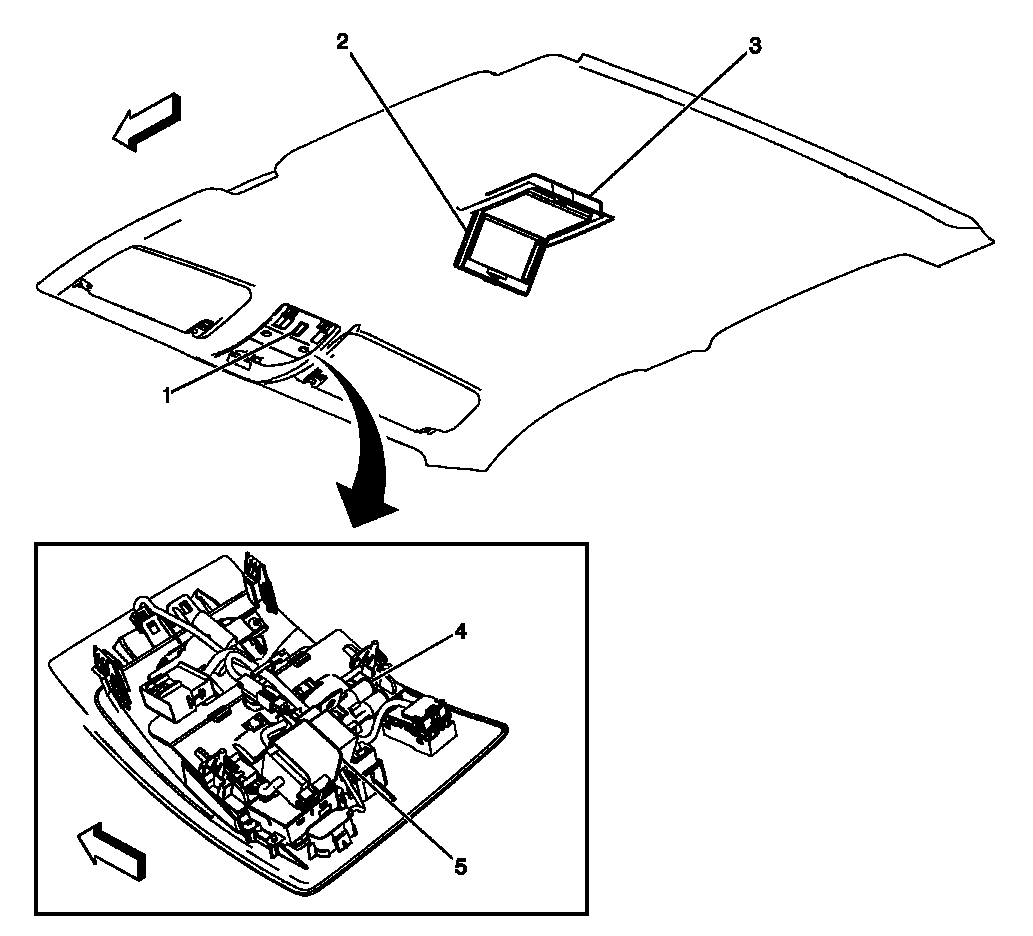

Fig 5: Headliner and Overhead Console (U42/5Y0)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Beacon Switch (5Y0)
2	Video Display (U42)
3	Infared Module (U42)
4	Emergency Vehicle Wiring Blunt Cuts (5Y0)
5	Emergency Vehicle Roof Lamp Relay (5Y0)

Fig 6: Front Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Air Temperature Sensor - Front (CJ2)
2	Cellular Microphone (UE1/U3U/UVB)
3	Courtesy/Reading Lamps - Rear (Extended Cab/Crew Cab)
4	Sunroof Switch (CF5)
5	Sunshade - Right (DH6)
6	Garage Door Opener (UG1)
7	Onstar Button Assembly
8	Inside Rearview Mirror (ISRVM)
9	Courtesy/Reading Lamps - Front
10	Windshield
11	Sunshade - Left (DH6)

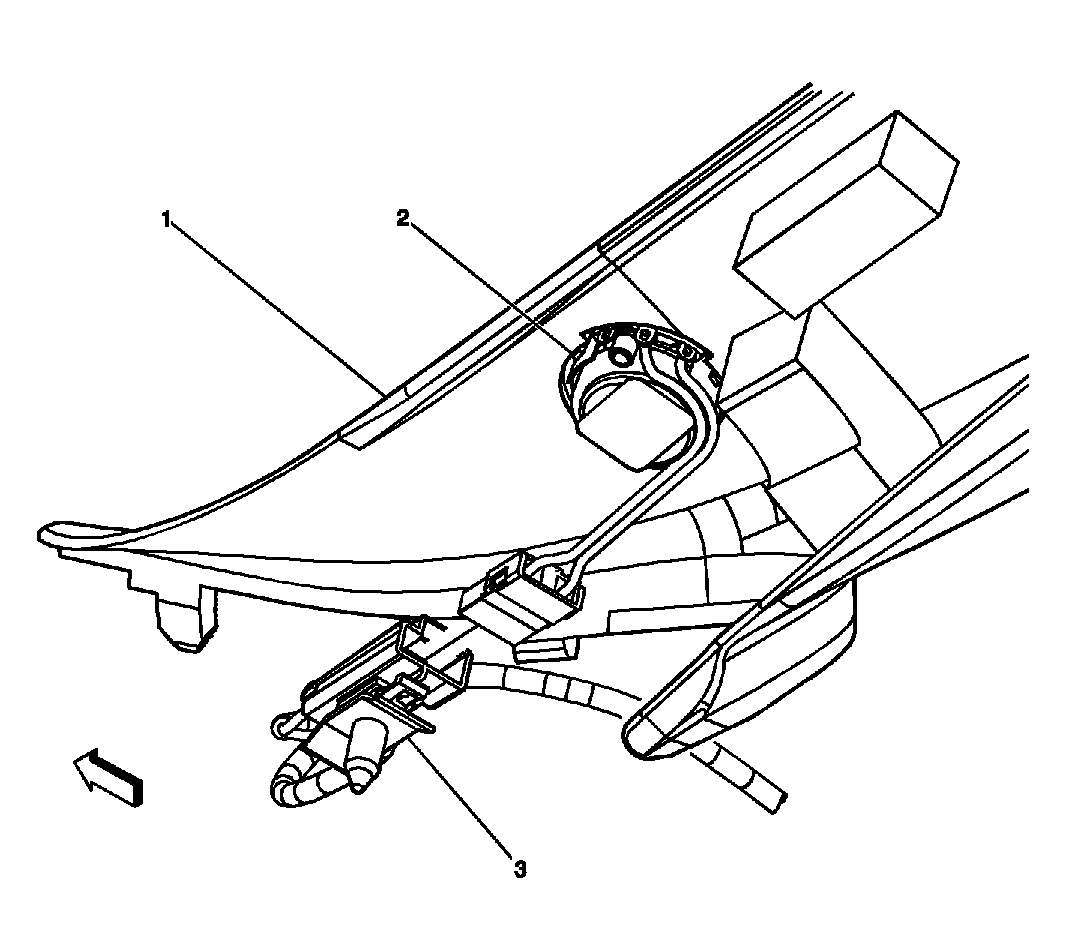

Fig 7: Speaker - LF Tweeter (RF Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left A-Pillar Trim Panel
2	Speaker - Left Front Tweeter
3	Speaker - Left Front Tweeter Connector

Fig 8: Driver Door (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Memory/Heated Seat Switch
4	Driver Door Switch (DDS)
5	Speaker - Left Front
6	Window Motor - Driver (A31)
7	Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
8	Door Latch Assembly - Driver

Fig 9: Passenger Door (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Passenger Door Switch (PDS)
3	Door Latch Assembly - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
5	Speaker - Right Front
6	Window Motor - Passenger (A31)
7	Heated Seat Switch - Passenger

Fig 10: Driver Door (AU3 -AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Lock Switch - Driver
3	Speaker - Left Front
4	Door Latch Assembly - Driver

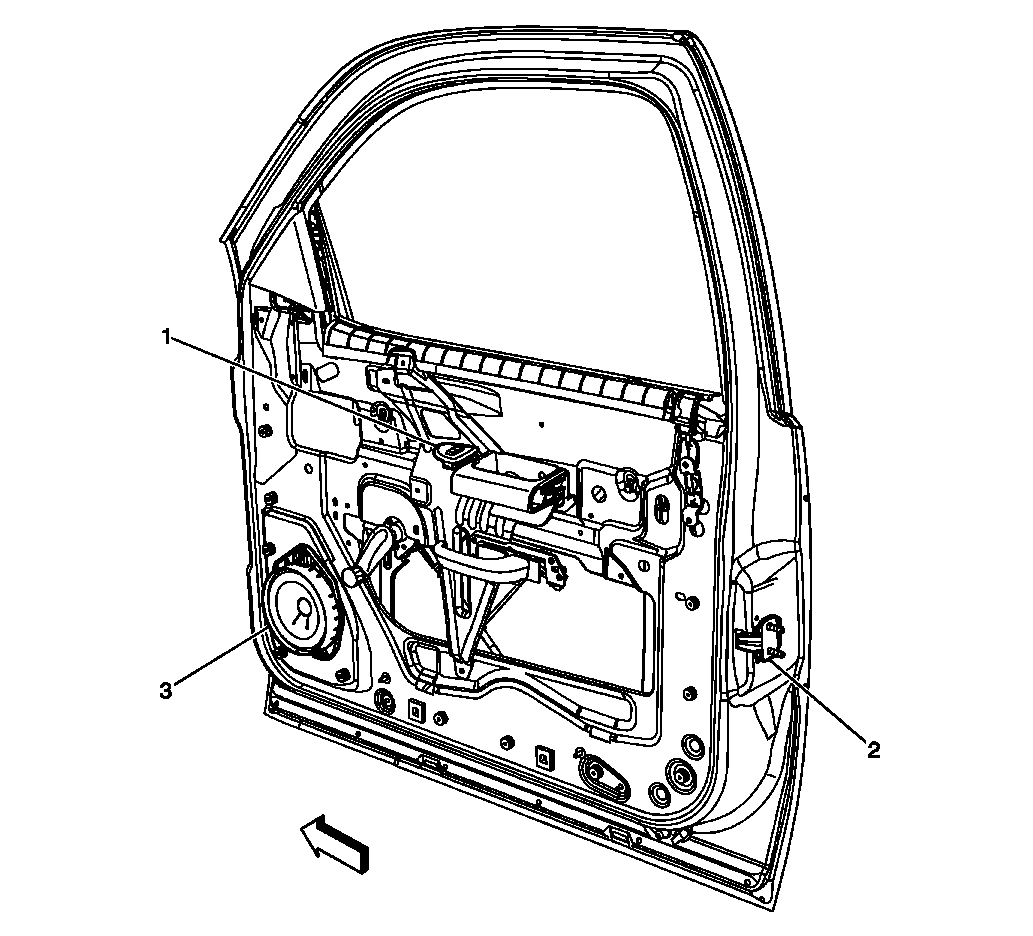

Fig 11: Passenger Door (AU3 -AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Passenger
2	Door Latch Assembly - Passenger
3	Speaker - Right Front

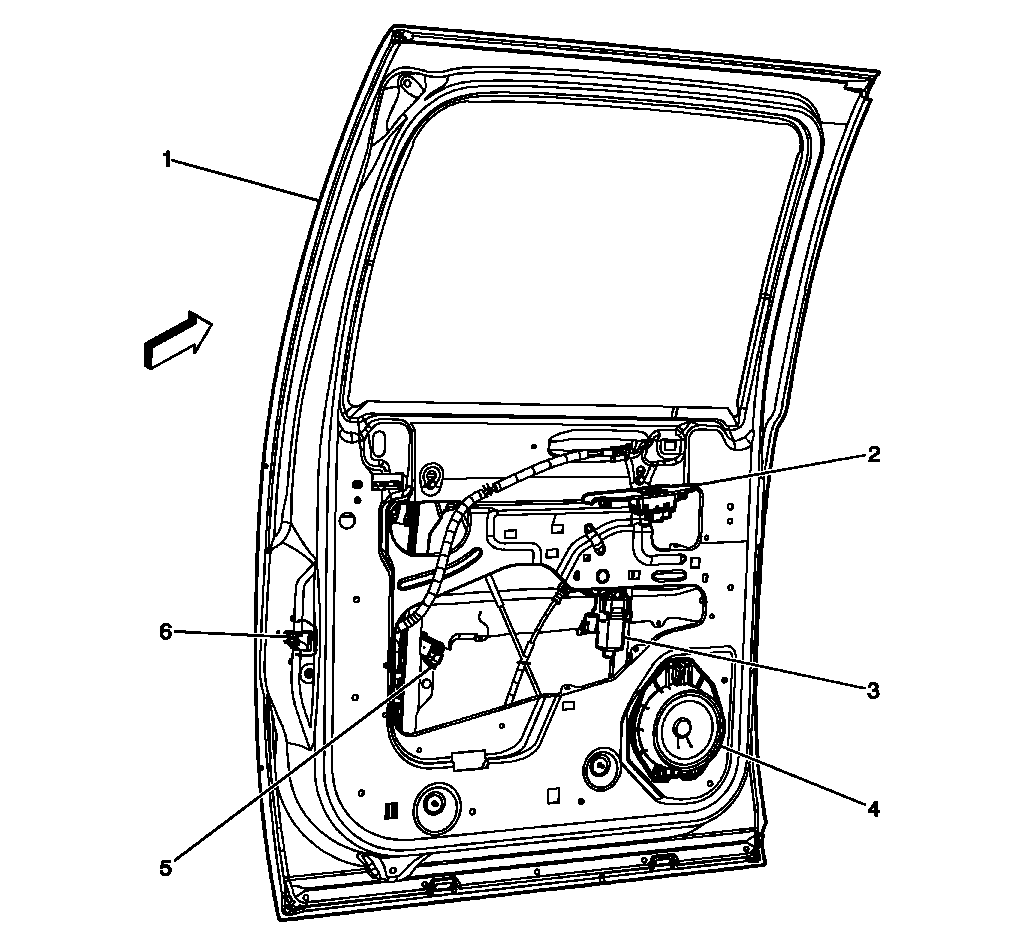

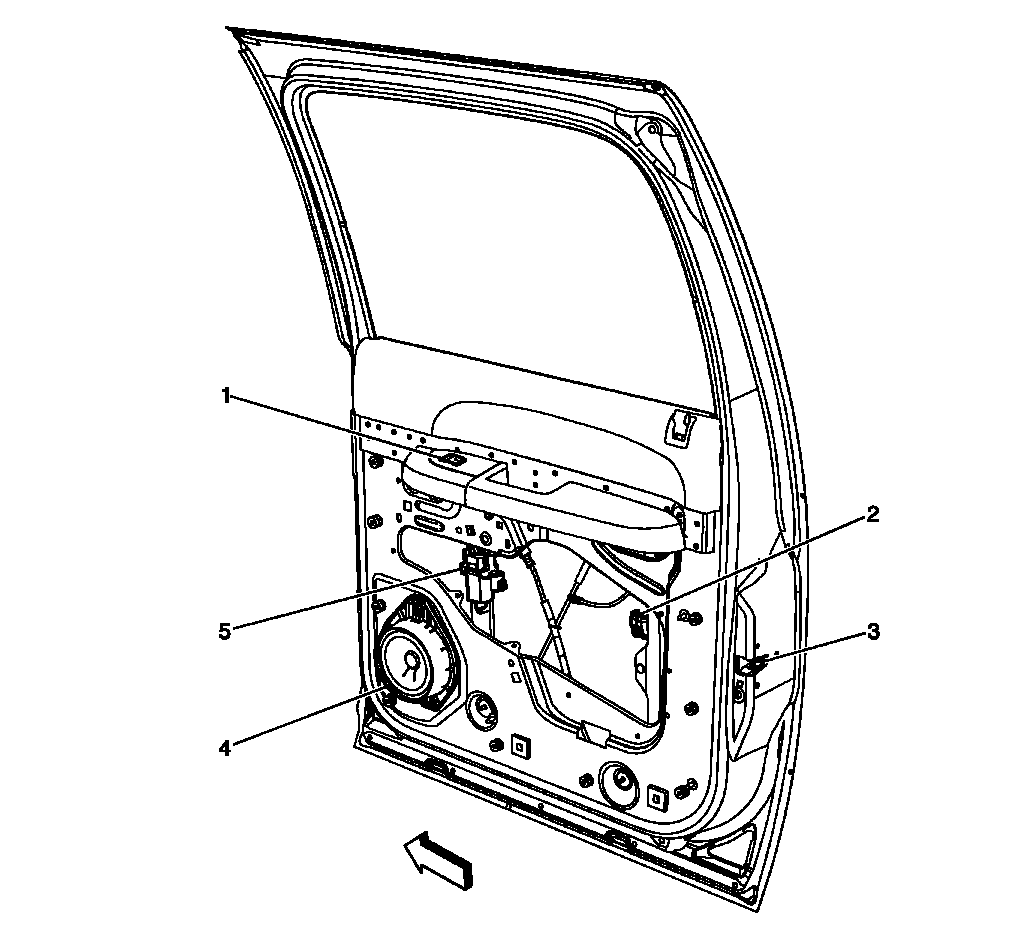

Fig 12: Left Rear Door (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - Left Rear (A31)
3	Window Motor - Left Rear (A31)
4	Speaker - Left Rear Door
5	Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
6	Door Latch Assembly - Left Rear

Fig 13: Right Rear Door (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear (A31)
2	Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
3	Door Latch Assembly - Right Rear
4	Speaker - Right Rear Door
5	Window Motor - Right Rear (A31)

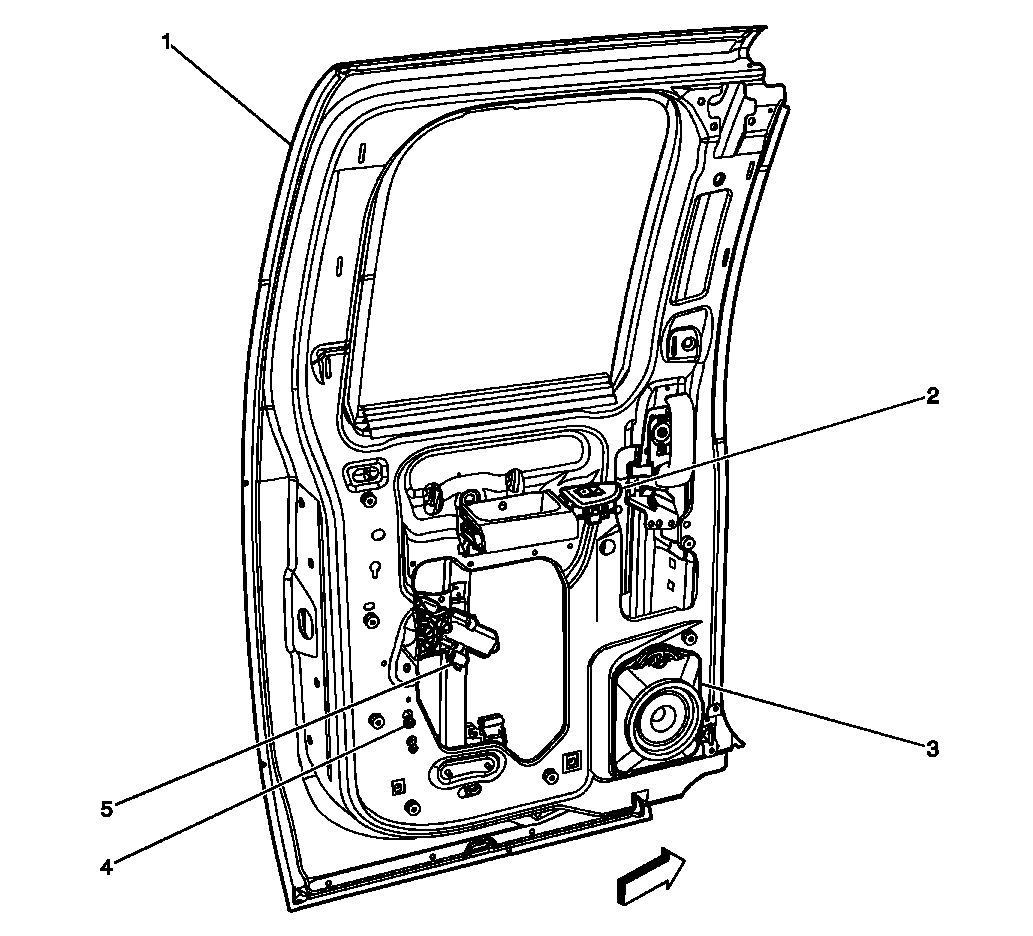

Fig 14: Left Rear Door (Extended Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - Left Rear (ABV)
3	Speaker - Left Rear Door
4	Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
5	Window Motor - Left Rear (ABV)

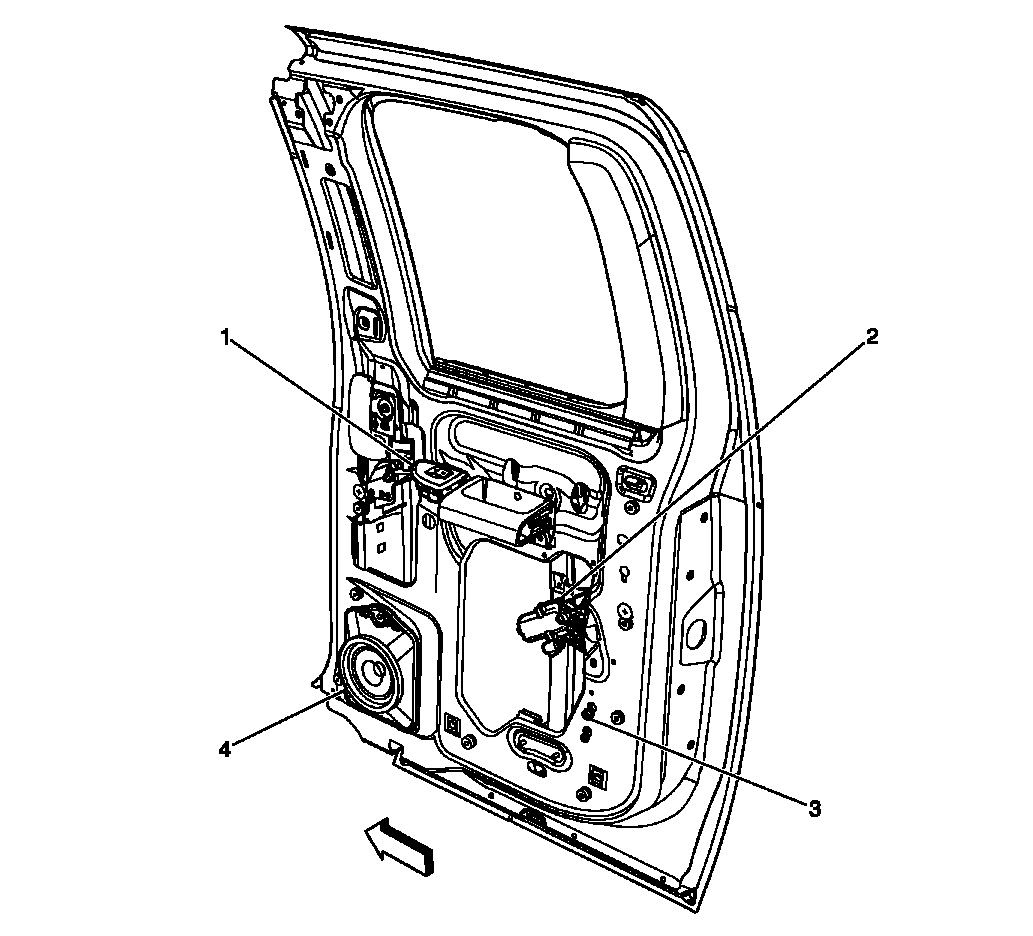

Fig 15: Right Rear Door (Extended Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear (ABV)
2	Window Motor - Right Rear (ABV)
3	Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
4	Speaker - Right Rear Door

Fig 16: Behind the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Fuse Block - I/P
3	Body Control Module (BCM)
4	Speaker - Subwoofer (UQA)
5	Vehicle Communication Interface Module (VCIM) (UE1)
6	Digital Radio Receiver (U2K)

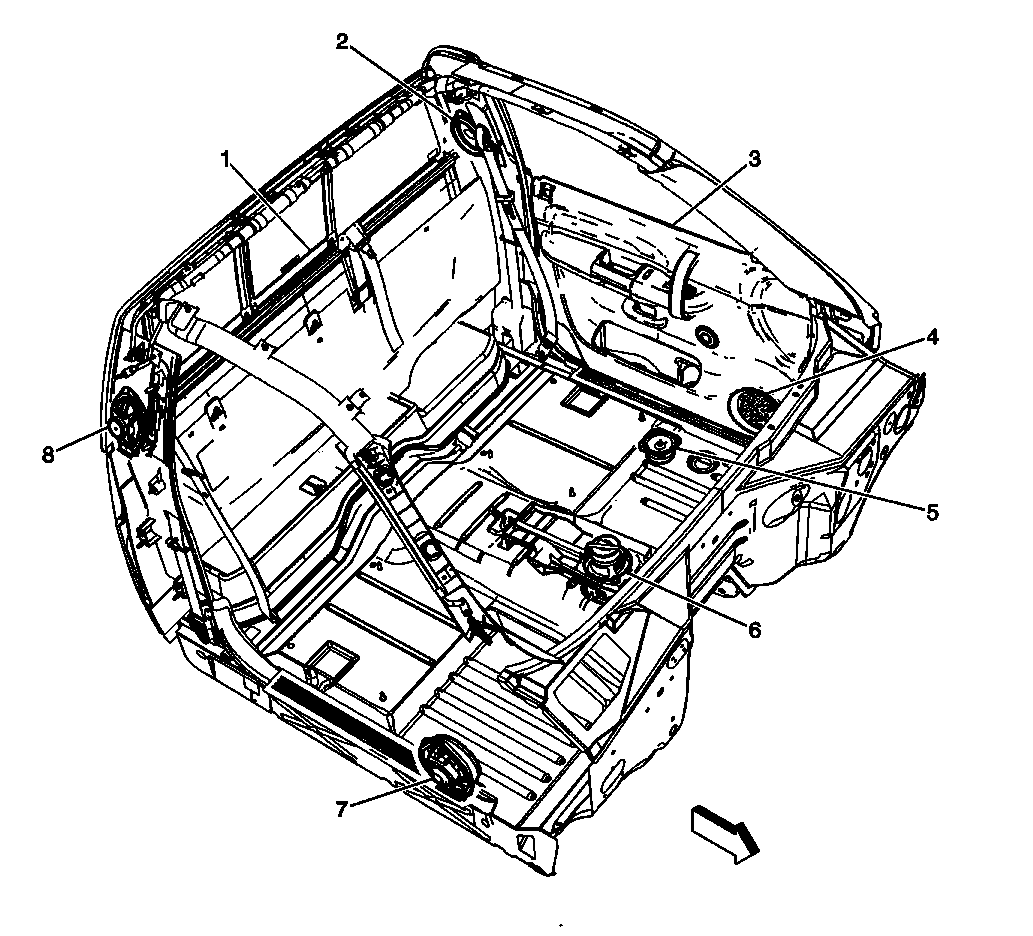

Fig 17: Audio Components (Regular Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window
2	Speaker - Left Rear
3	Driver Door Trim
4	Speaker - Left Front
5	Speaker - Center (UQA+Y91)
6	Speaker - Subwoofer (UQA)
7	Speaker - Right Front
8	Speaker - Right Rear

Fig 18: Above the Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield
2	Cellular/Navigation Antenna (UE1) / Cellular/Navigation and Digital Radio Antenna (UE1 w/U2K)
