Rear Toe Adjustment

Rear Toe Adjustment

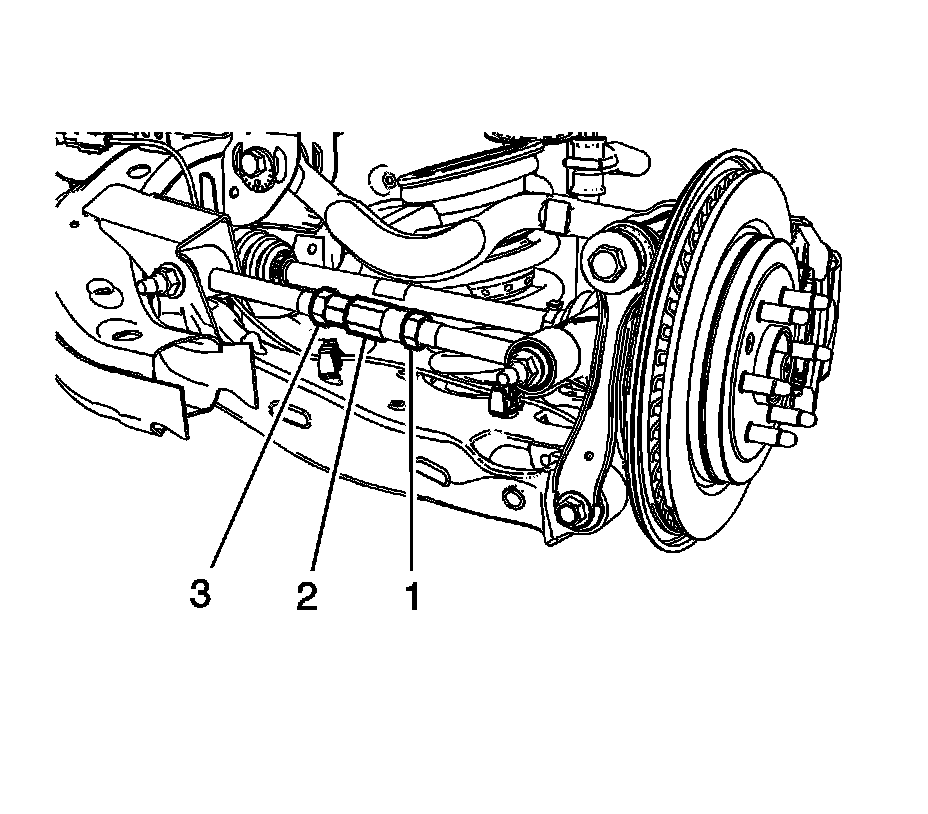

1. Loosen the rear suspension adjustment link nuts (1) and (3).
2. Rotate the rear suspension adjustment link (2) until the proper specification is achieved. Refer to Wheel Alignment Specifications (Wheel Alignment Specifications)

Caution: Refer to Component Fastener Tightening Caution (Component Fastener Tightening Caution).

3. Using a backup wrench, hold the rear suspension adjustment link (2) and tighten outer nut (1) to 150 Nm (110 lb ft), then tighten the inner nut (3) to 150 Nm (110 lb ft).
4. Recheck the toe setting after tightening, readjust if necessary.
