Turn Signal Lamp




Component Connector End Views

Turn Signal Repeater Lamp - Left

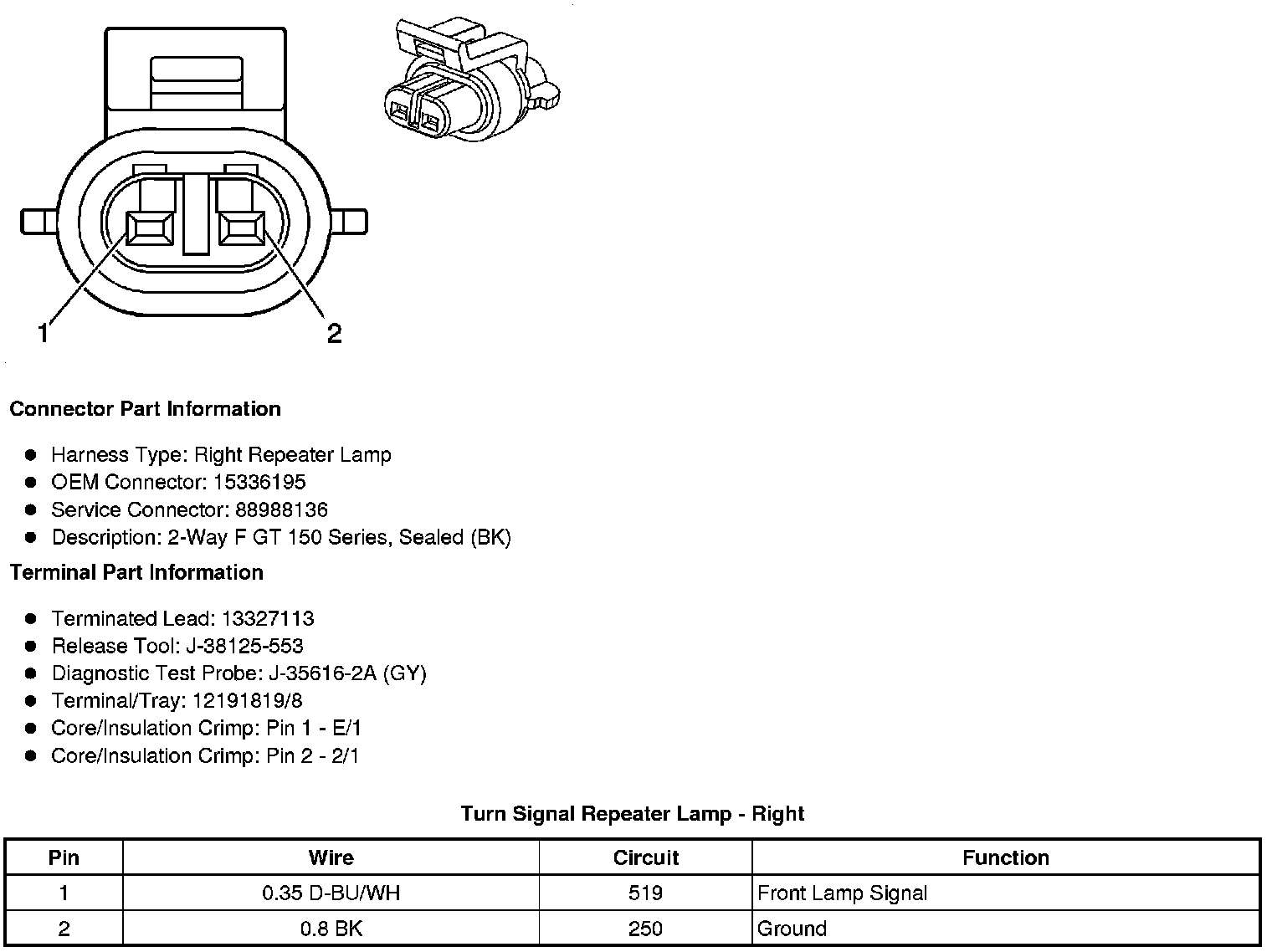

Turn Signal Repeater Lamp - Right





Turn Signal Lamp - Left Front

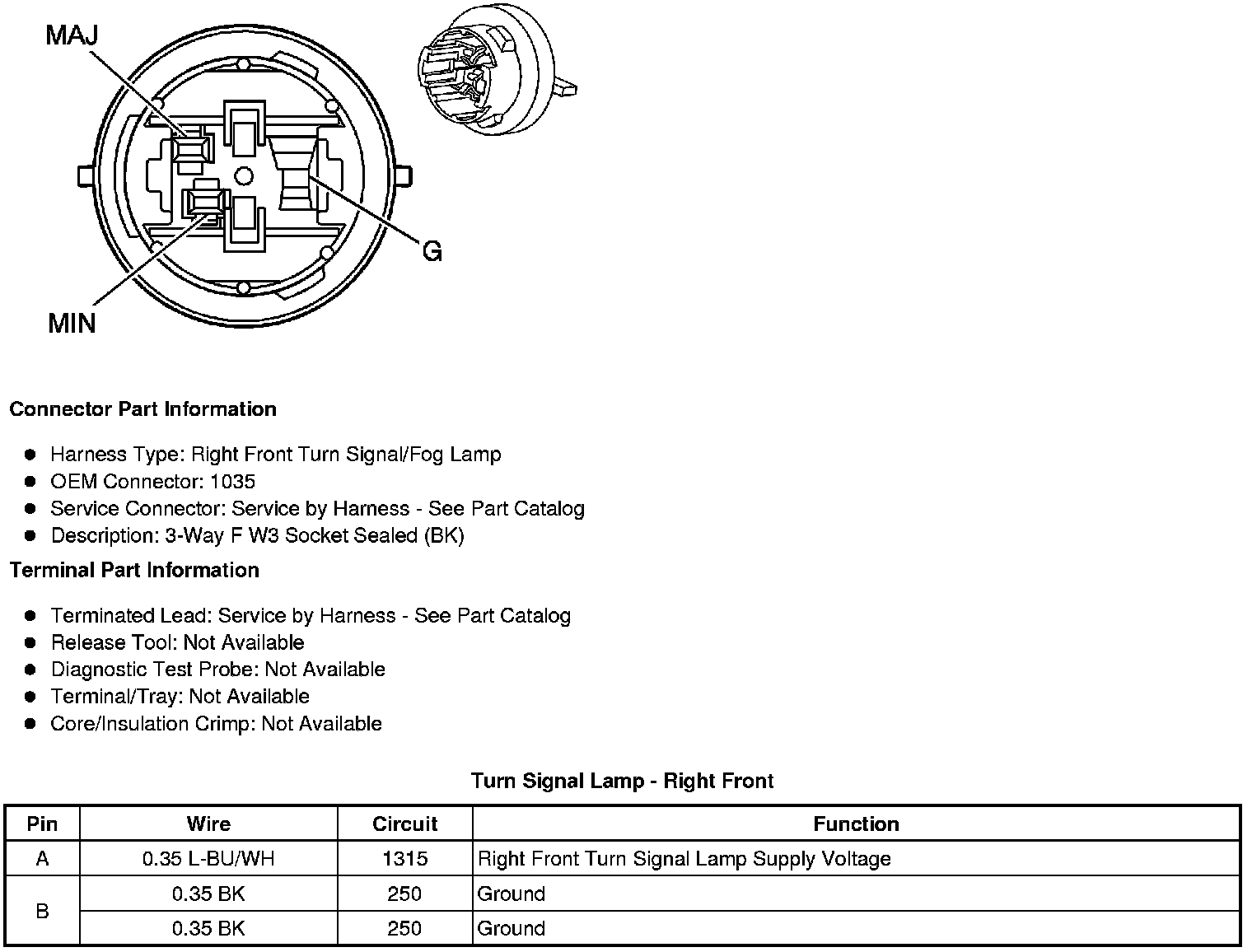

Turn Signal Lamp - Right Front
