Instrument Panel Control Module: Diagrams




Component Connector End Views

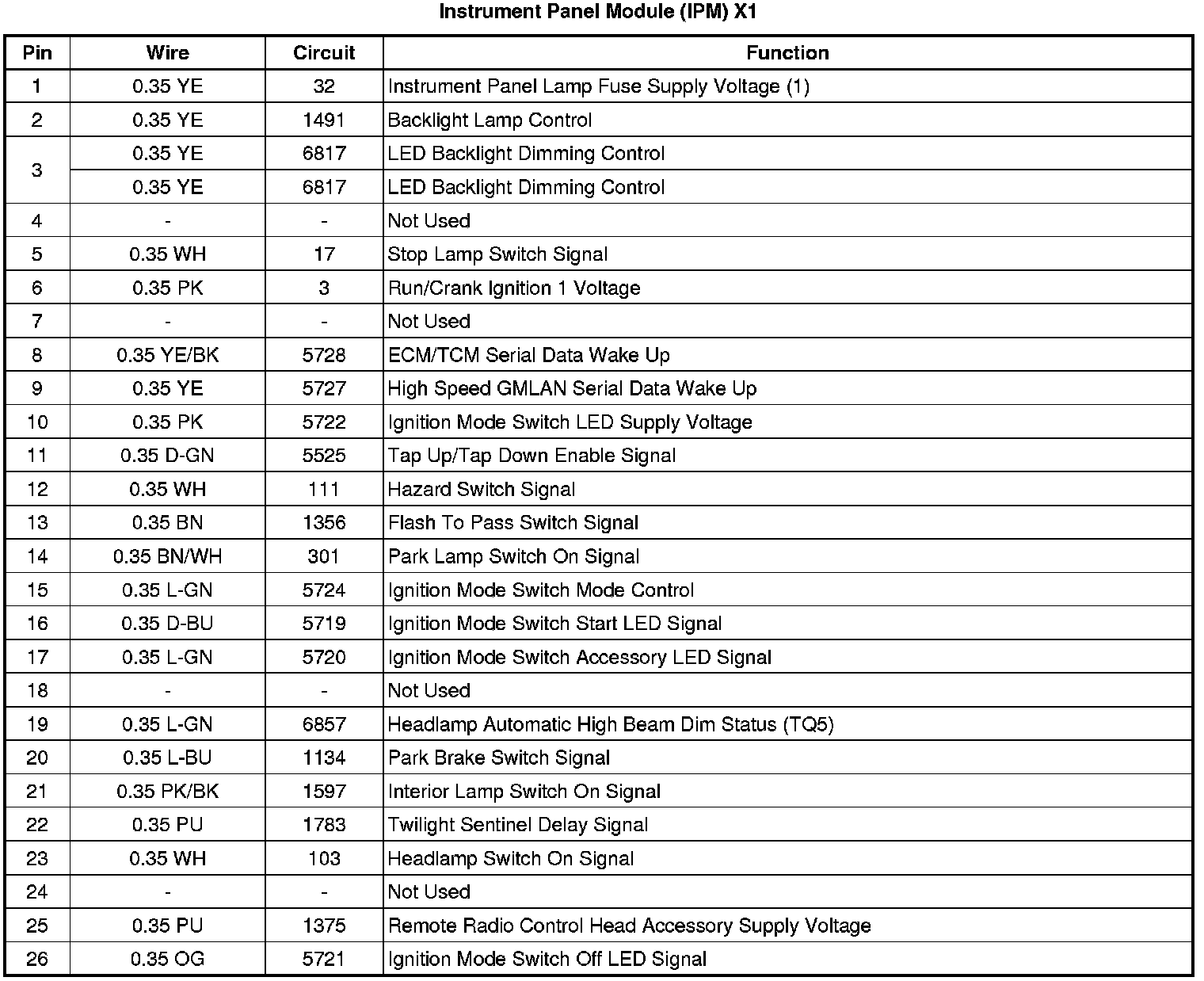

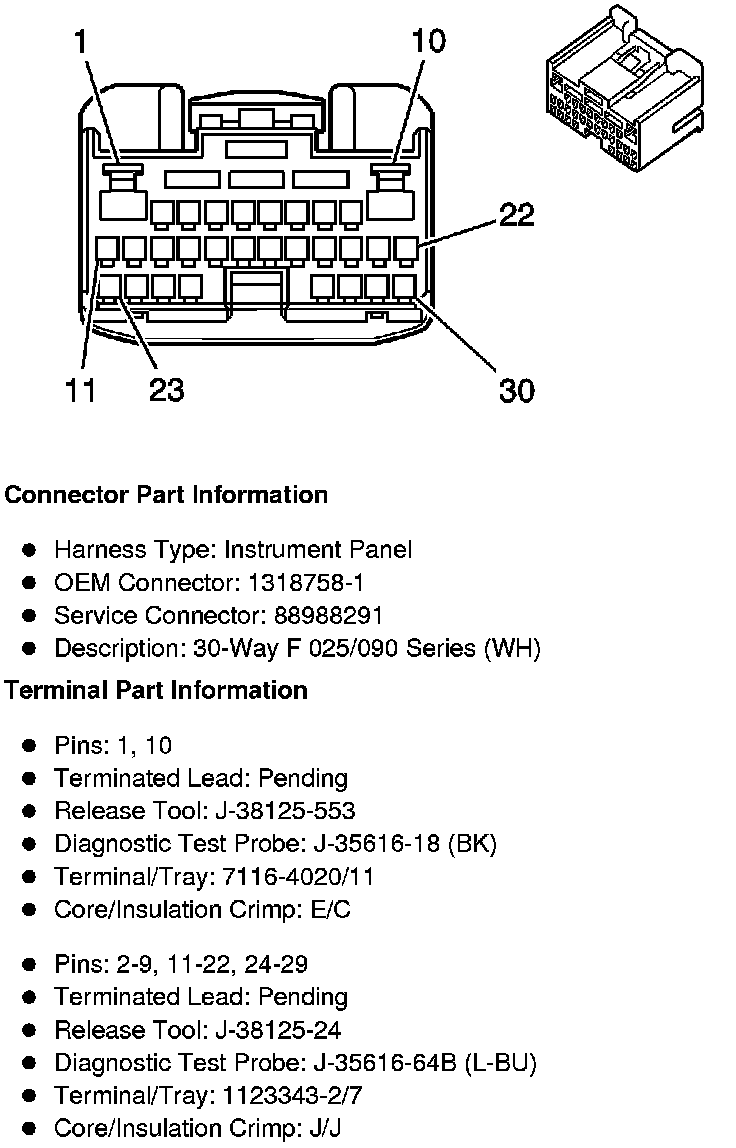

Instrument Panel Module (IPM) X1

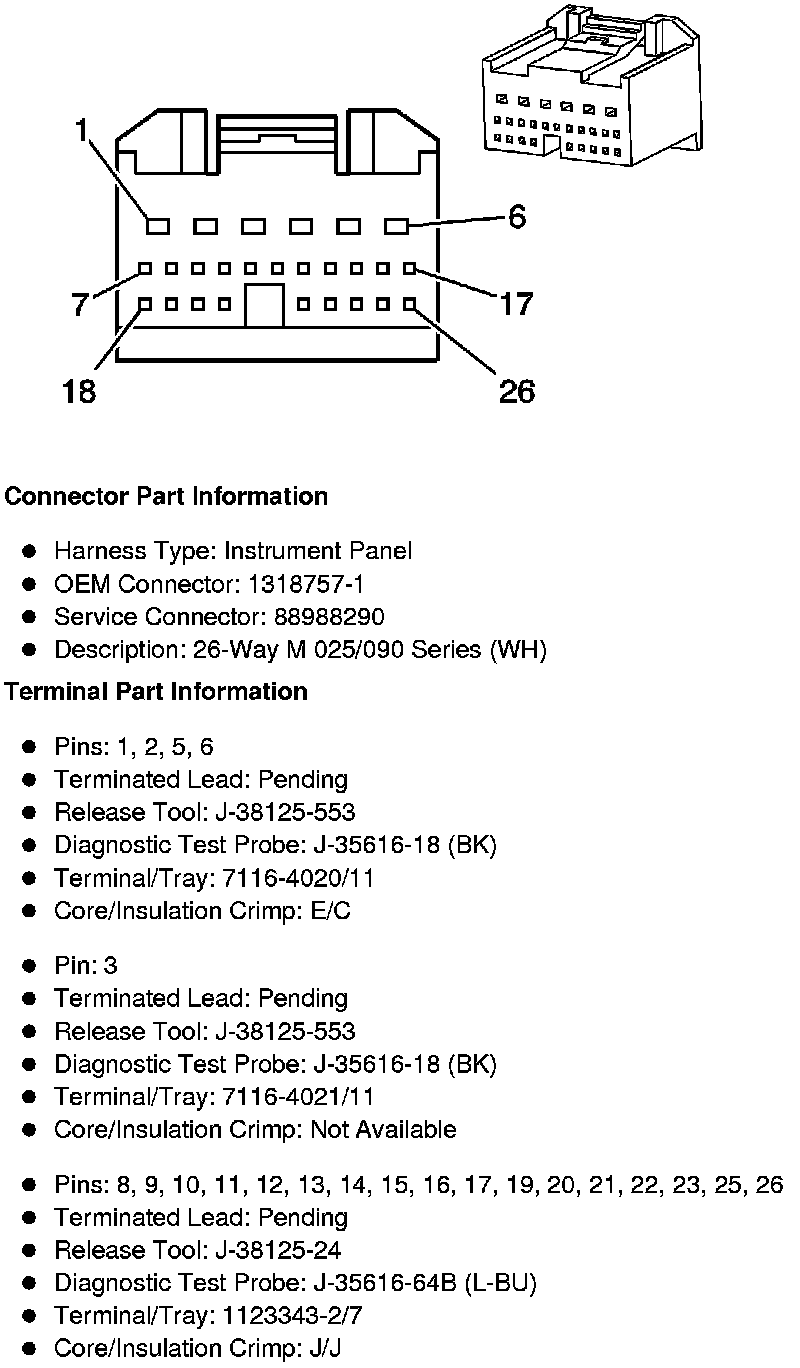

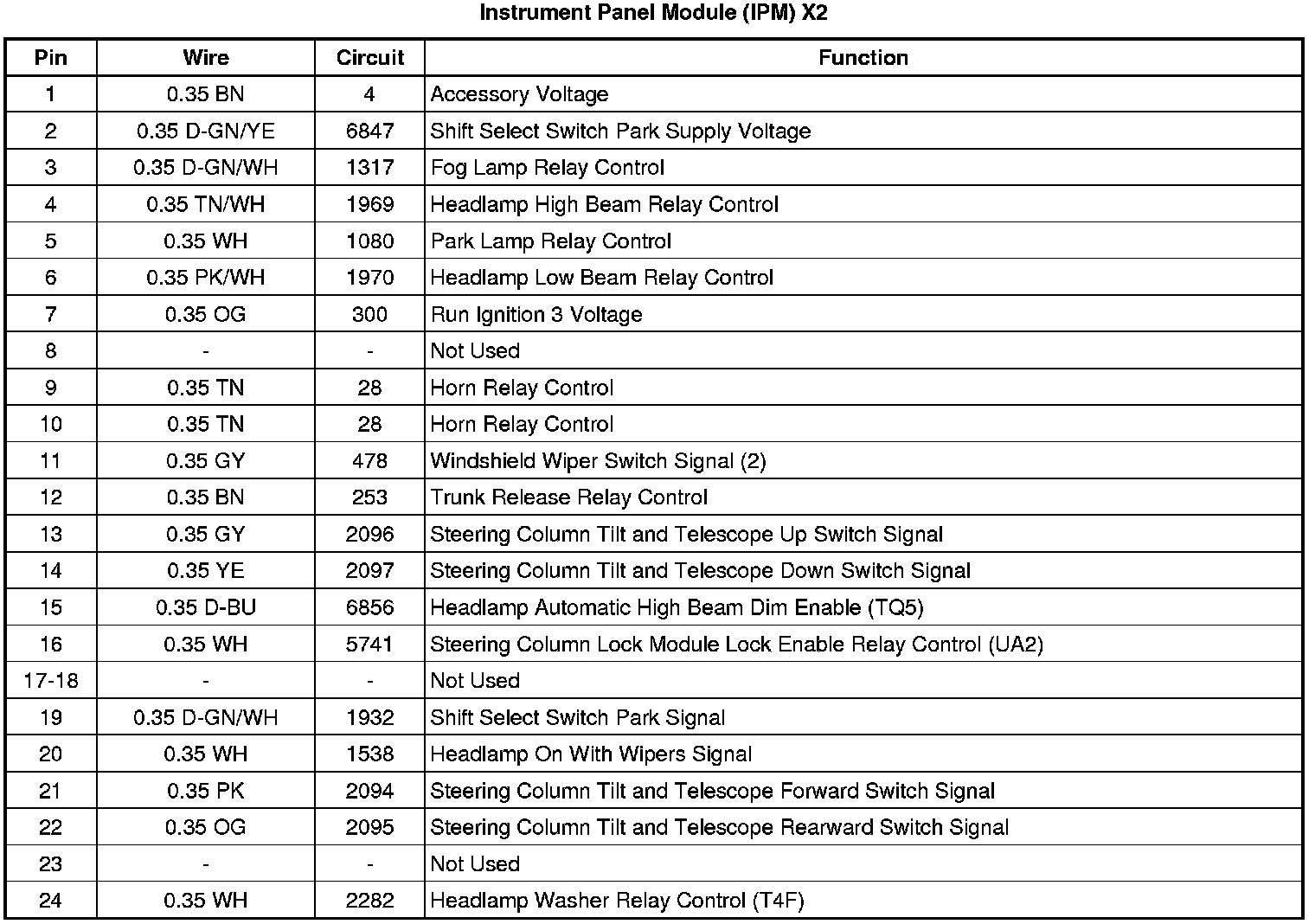

Instrument Panel Module (IPM) X2

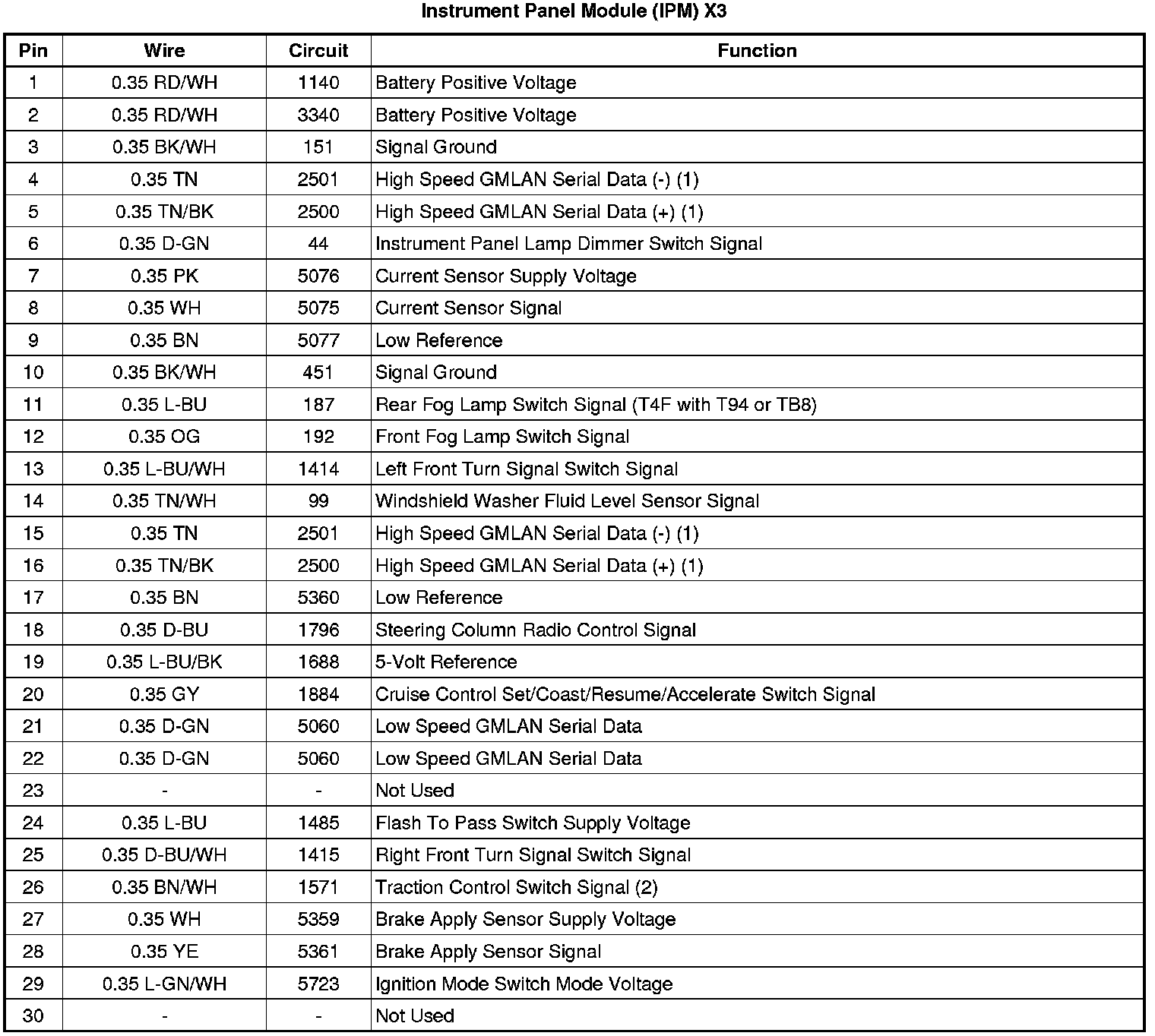

Instrument Panel Module (IPM) X3
