Assist Step Replacement (Z71)






Assist Step Replacement (Z71)

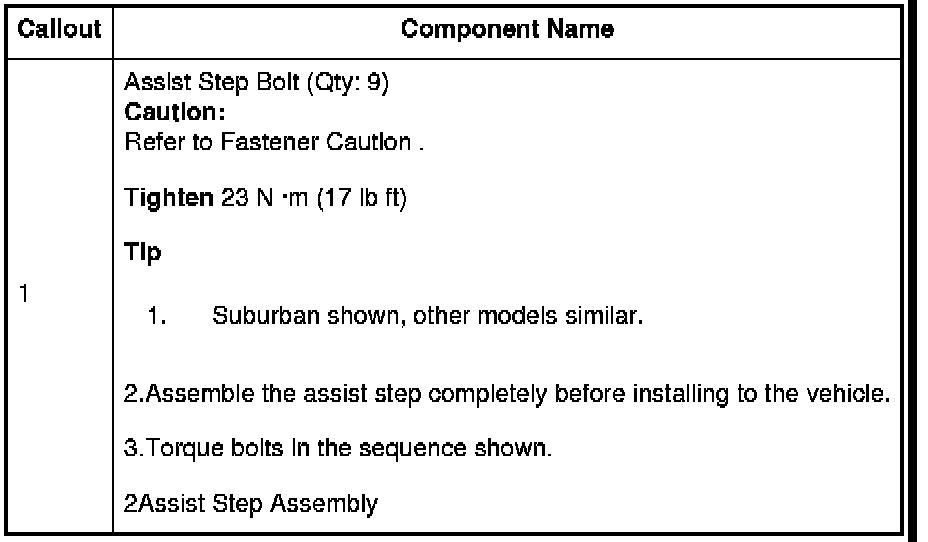

2.Assemble the assist step completely before installing to the vehicle.

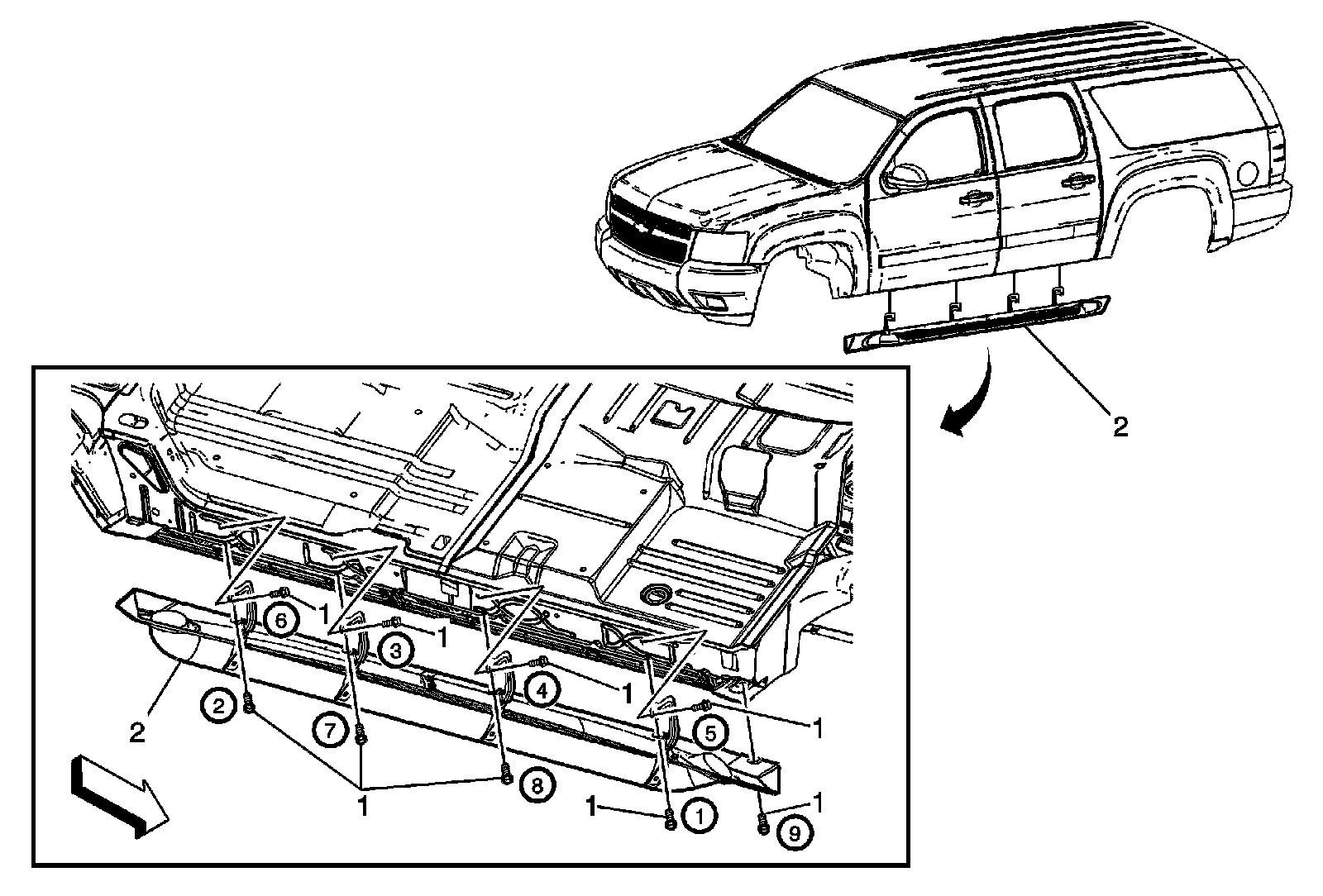

3.Torque bolts in the sequence shown.

2Assist Step Assembly
