Gear Sensor/Switch, Transfer Case

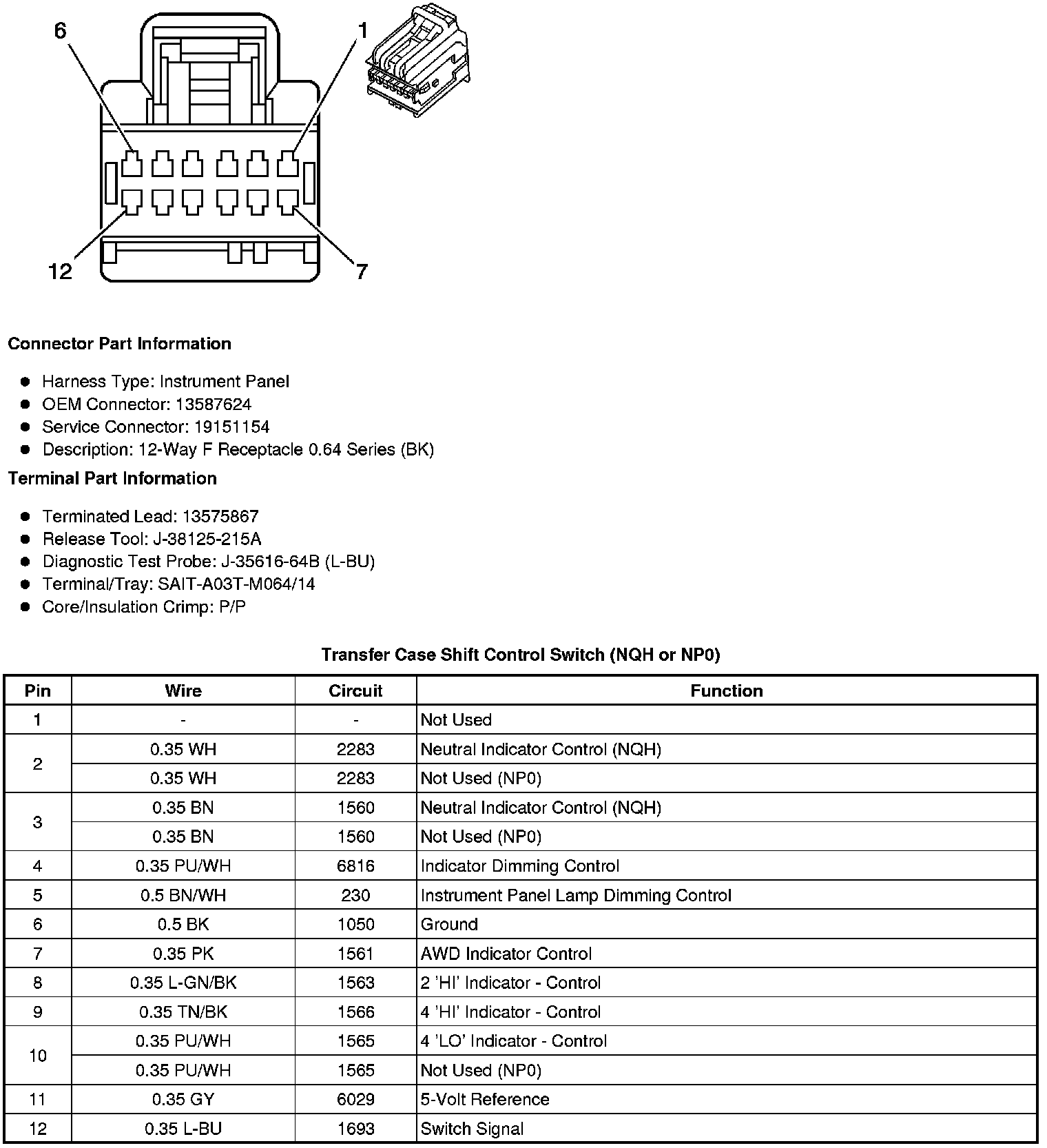

Component Connector End Views

Transfer Case Shift Control Switch (NQH or NP0)
