Liftgate Window Latch Replacement

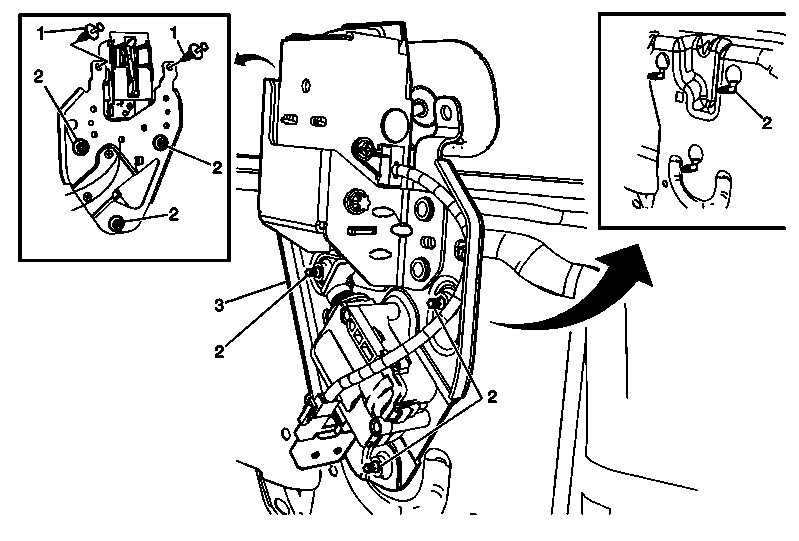

Fig 1: View Of Liftgate Window Latch Assembly & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
1	Liftgate Trim Upper - Pushpin (Qty: 2) TIP: To remove the pushpins, open the liftgate glass.
2	Liftgate Window Latch Screw (Qty: 3) CAUTION: Refer to Fastener Caution . TIP: LOOSEN the screws using the TORX head end. Remove the latch using the key holes in the liftgate panel. Bolts are left hand thread. Tighten 9 N.m (80 lb in)
3	Liftgate Window Latch Assembly TIP: Disconnect the electrical connector.
