Liftgate Window Replacement

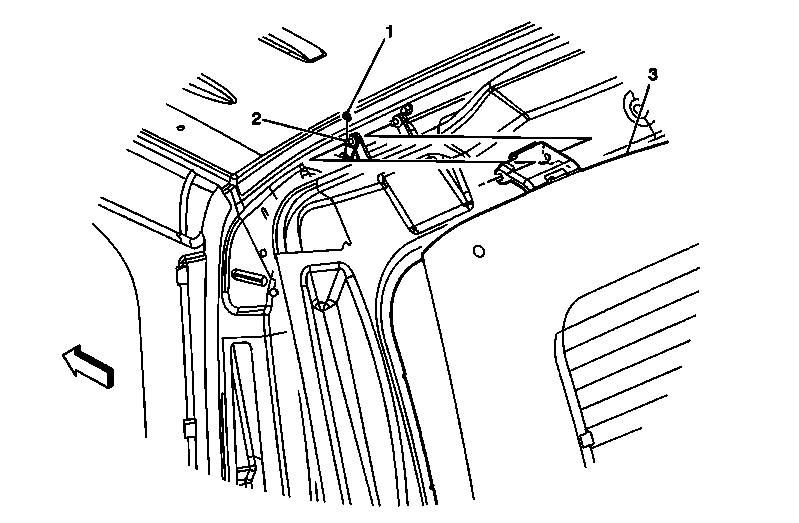

Fig 1: View Of Liftgate Window & Components
GM1672143Courtesy of GENERAL MOTORS COMPANY
Liftgate Window Replacement

Callout Component Name
WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedure

  1. Disconnect the liftgate window support struts. Refer to Liftgate Strut Replacement (Except Avalanche and Escalade EXT) .
  2. Remove the center high mounted stop lamp applique. Refer to Back Body Opening Upper Applique Replacement .
  3. Remove the liftgate garnish molding. Refer to Liftgate Garnish Molding Replacement .
1 Liftgate Window Hinge E-Ring (Qty: 2)
2 Liftgate Window Hinge Bushing (Qty: 4)
3 Liftgate Window

Procedure

  1. If the HYBRID decal is damaged or if the liftgate window is being replaced, refer to Decal or Stripe Replacement (Tahoe Hybrid 2 Mode Windshield) , Decal or Stripe Replacement (Tahoe Hybrid 2 Mode Rear Glass) , Decal or Stripe Replacement (Tahoe Hybrid 2 Mode Lower Door) , Decal or Stripe Replacement (Escalade HYBRID 2 Mode Door Decal) .
  2. Disconnect the rear defogger electrical connector.
