Liftgate Window Strut Replacement

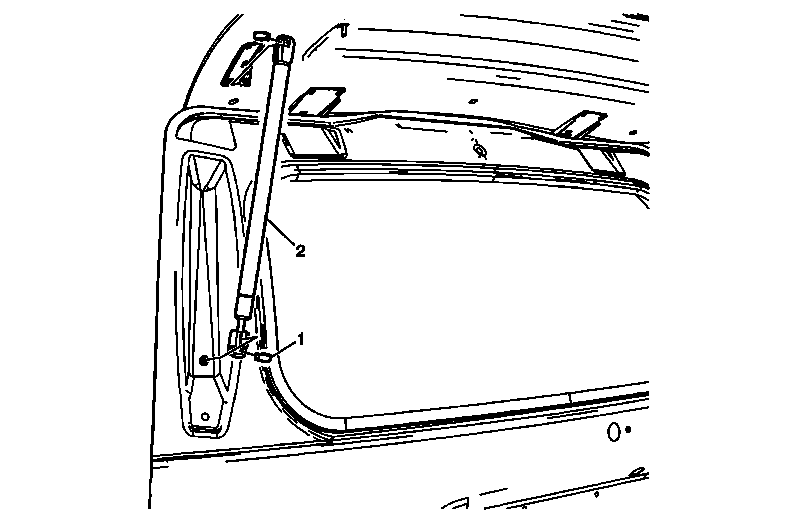

Fig 1: Liftgate Window Strut & Clip Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1	Liftgate Window Strut Clip Retainer TIP: Release the lock tabs on the strut.
2	Liftgate Window Strut
